UNBRANDED 4K HDMI EXTENDER 60M

R 1,050.00
Unit price  per
history

Guaranteed safe & secure checkout

4K 60m HDMI Extender

Product introduction :

This single-wire extender replaces the HDMI cable with a CAT5e or CAT6 cable (recommended) and can transfer HDMI signals for up to 60 meters, reducing the cost. The purpose of the extender is to achieve long distances with low-cost wires. Signal transmission.

Features :

1: Support HDMI 1.4b,DVI1.0,HDCP1.4

2: 60M long distance transmission

3: low power consumption, low temperature, high security

4: Support HDMI out Downscaling

Product specifications:

CAT5e or CAT6 cable between the receiver and the transmitter : up to 60 meters HDMI input : 4k/1080p/1080i/720p/576p/576i/480p/480i HDMI output : 4k/1080p/1080i/720p/576p/576i/480p/480i Maximum transmission bandwidth. : 340MHz Maximum transfer rate. : 3 x3.4Gbps Input video signal. : 0.5~1.5Volts pp Output DDC signal. : 5Volts pp (TTL) Input HDMI cable length : ≤15m AWG26 standard HDMI cable Output HDMI cable length : ≤15m AWG26 Standard HDMI cable Maximum operating current TX : 350mA Maximum operating current RX : 200mA Power Adapter Specifications : AC Input (50HZ, 60HZ) 100V-240V; DC Output 5V/1A range of working temperature : (-15 to +55°C) Working humidity range : 5 to 90% RH (no condensation) Dimensions (length x width x height) : 81x43x22 (mm) TX weight : 102g RX weight : 103g

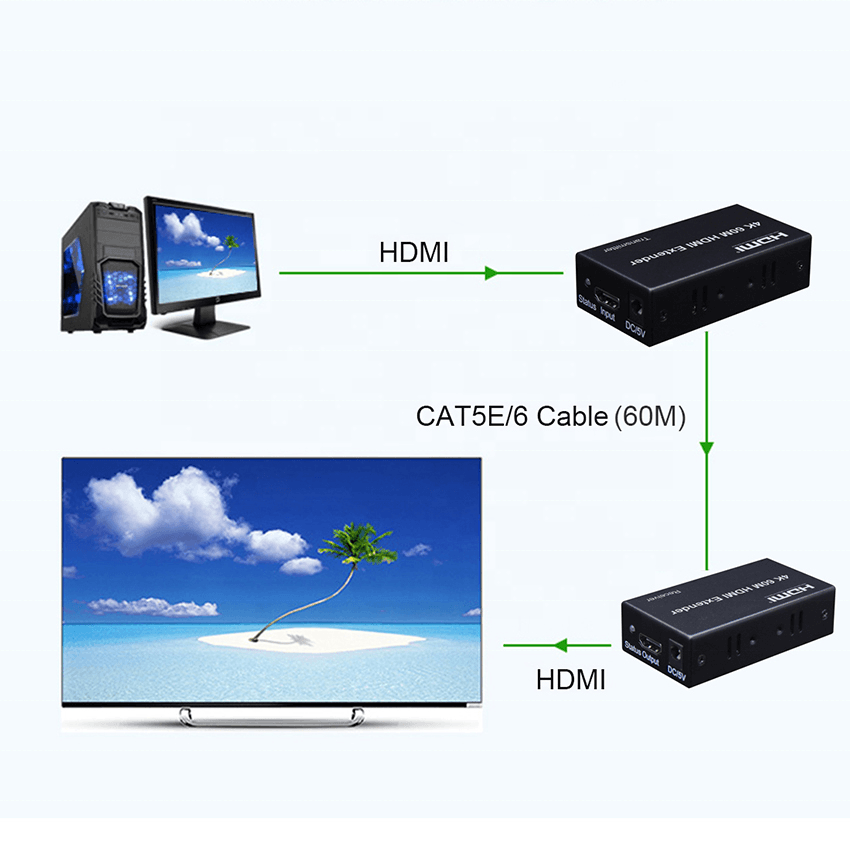

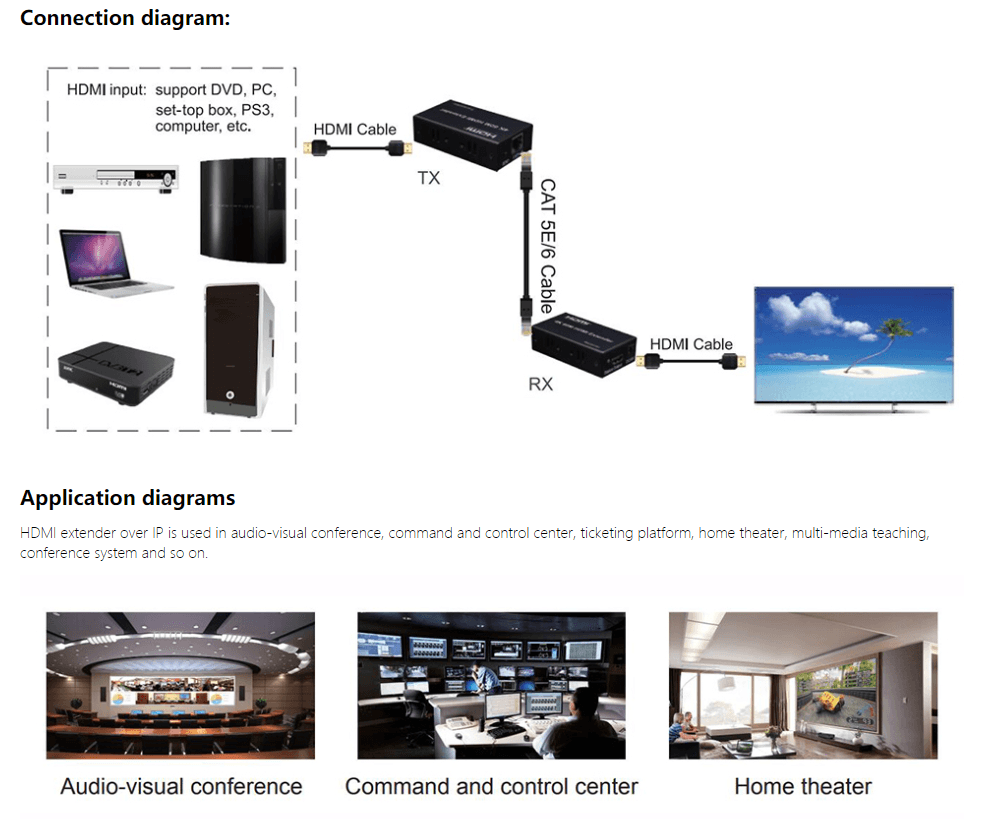

Connection and operation

1. Connect the signal source to the transmitter end of the extender with an HDMI cable. The cable can be up to 10 meters long.

2. Connect the display end to the receiving end of the extender with an HDMI cable. The cable can be up to 10 meters long.

3. Use a cat5e cable or cat6 cable (recommended) instead of the HDMI cable to extend the transmitter and receiver.   Connected up to a maximum length of 60 meters;

4. Connect the transmitter and receiver to the power supply;

5. LED indicator description:   TX-side LED light description: When there is no signal input, it is bright blue; when there is signal input, it lights red.   RX LED light Description: Light blue when there is no signal input; red when there is signal input.

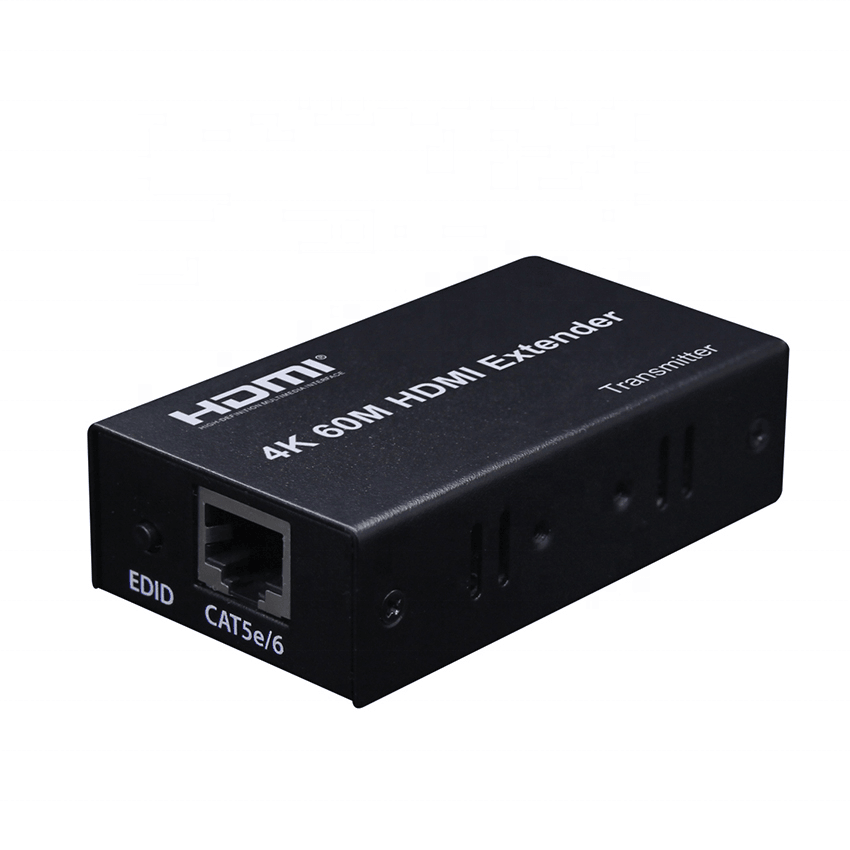

6.EDID button: This button is used to process EDID, which can realize the switching of EDID supporting 1080p and 4K.   (The default is to support 4K EDID).



The Package includes :

1.TX Extender 1PCS

2.RX Extender 1PCS

3.5V/1A DC Poewr adapter 2PCS

4.User Manual 1PCS
