Product Description

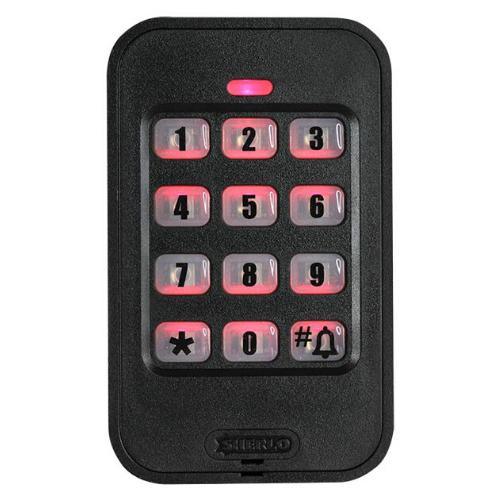

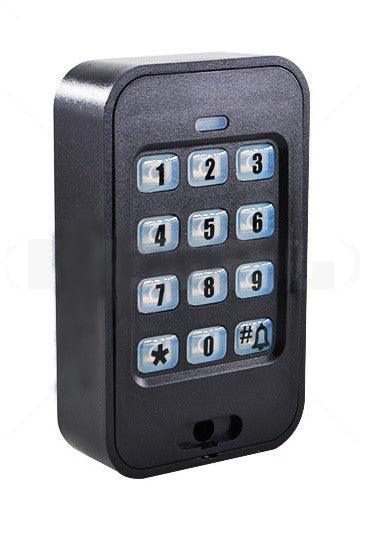

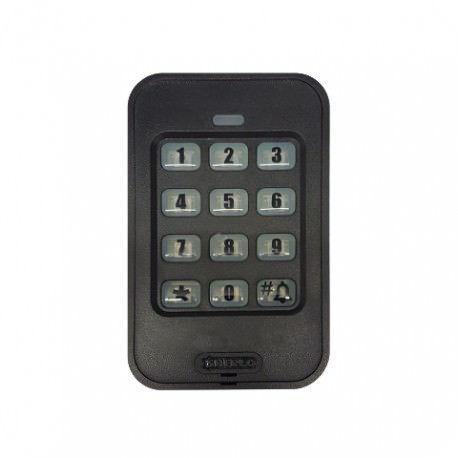

The Sherlo Wireless Keypad is designed for Secure access control of buildings, properties, gate/garage entrances, internal doors, striker locks and even arming/disarming alarm panels. The unit can be programmed with up to 9 RF channels to control different receivers. You can very easily program the keypad on a PC in Notepad so that you don't have to waste time manually programming the keypad. This can then be very easily & reliably saved onto the Keypad using a microSD card. The keypad is battery-powered but has a 12V DC wired input connector.

Product Features

  • Wireless Code hopping
  • 1000 unique Pin code from 1-10 digit
  • Backing up the unit with a microSD card
  • Wrong code lock-out function
  • Holiday mode
  • 9 Channel RF outputs
  • 1 Door-bell RF output
  • Waterproof housing
  • 3x4 Silicone Keys: Back-Lit Keys
  • 1000 User: dedicated doorbell key press
  • audible Beeb: weatherproof abs
  • AA -Battery powered or 12VDC Input Selectable

Product Applications

  • Gate access control
  • Garage door access control
  • Striker lock access control
  • Internal door mag-lock access control
  • Arming / Disarming Alarms
  • Wireless Doorbell

Technical Specifications

  • Compatible Receiver Models: RX1 - 150: RX2 - 150 : RX1 - 500
  • Transmission Frequency: 403MHz (Local) 433MHz (Export)
  • Transmission Method: OOK
  • Modulation: AM
  • Transmission Range: 100m "Line Of Sight"
  • User Codes: 1000 Users
  • Voltage Range: 3v or 12VDC
  • Standby Current Consumption: +/- 1.5uA 10%
  • Current consumption triggered: +/-50mA 10%
  • Operating Temp: -3c to 49c
  • Dimension (lxbxh): 124 x 76 x 31mm
  • Gross Weight: 200g

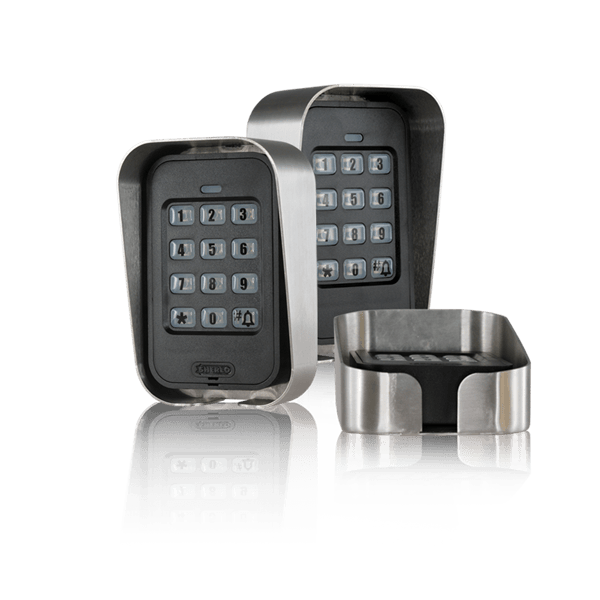

Please Note : Rainshield is not included with the keypad

Rainshield can be purchased using the link below :
