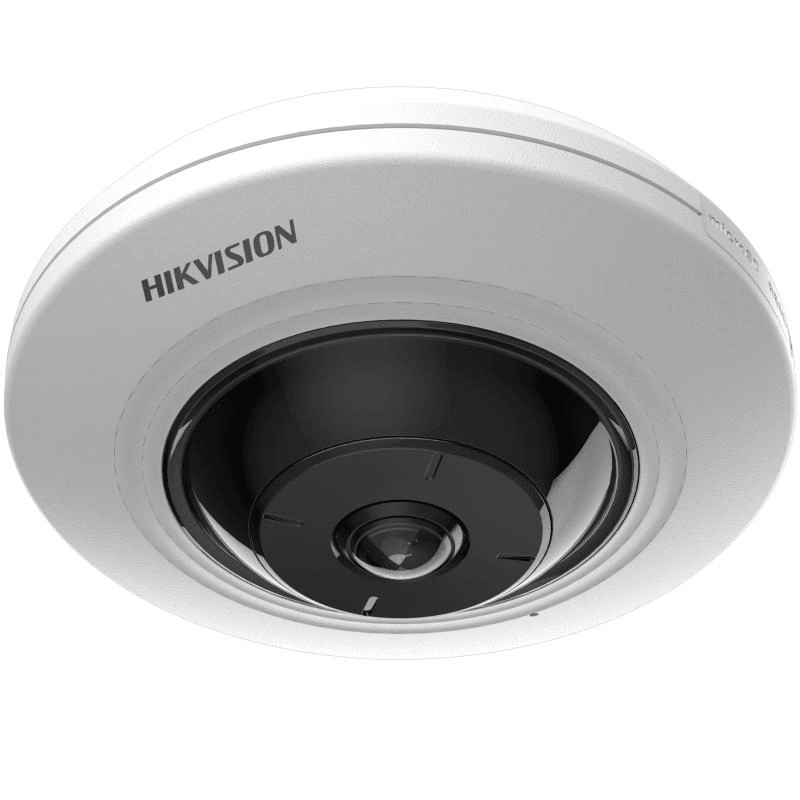

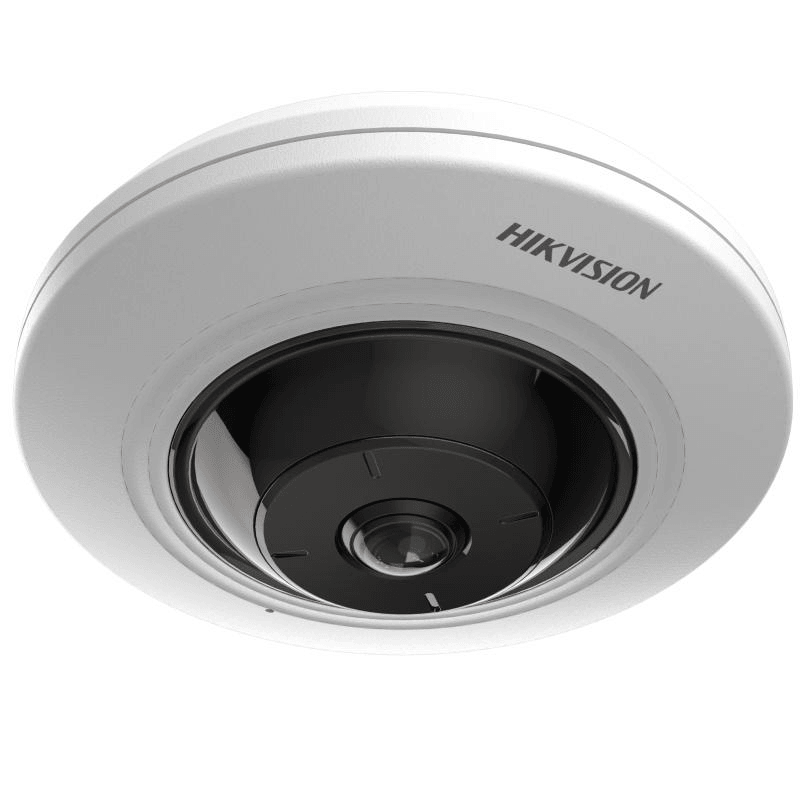

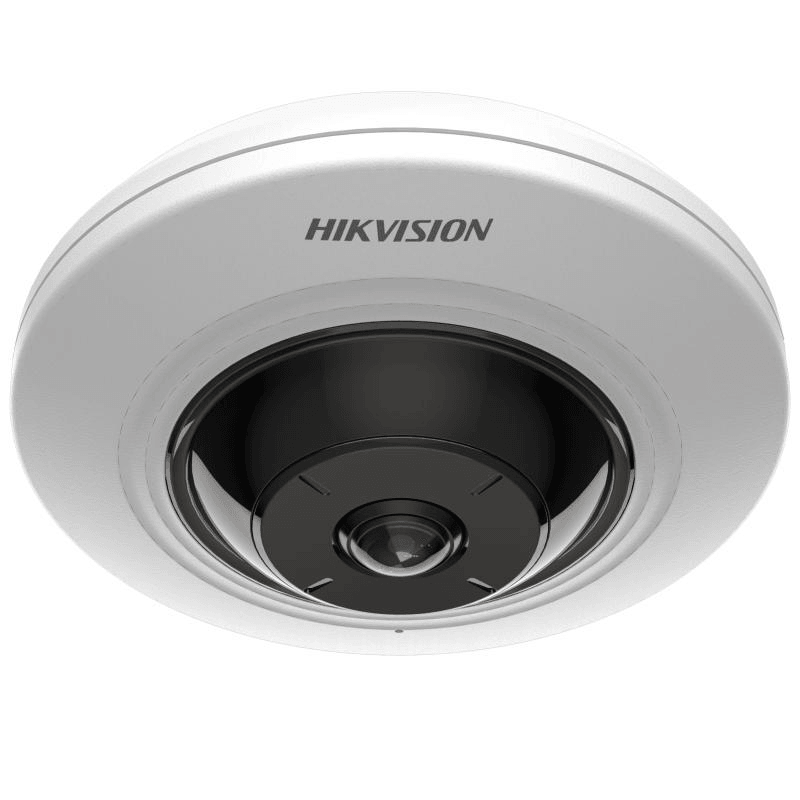

HIK 5MP MINI IP DOME 1.05MM DS-2CD2955G0-ISU
- Vendor: HIKVISION
- Type: CCTV
- SKU: 11460
HIK 5MP MINI IP DOME 1.05MM DS-2CD2955G0-ISU
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
HIK 5MP MINI IP DOME 1.05MM DS-2CD2955G0-ISU
DS-2CD2955G0-ISU(1.05mm)
Experience high-quality 5MP resolution imaging with the HIK 5MP MINI IP DOME 1.05MM DS-2CD2955G0-ISU. Utilizing advanced compression technology and a 180° fisheye view, this camera captures clear images even in strong backlight situations thanks to its 120 dB true WDR technology. In addition, the audio and alarm interface provide extra convenience and security.
FEATURES:
- High quality imaging with 5 MP resolution
- Efficient H.265+ compression technology
- 180° fisheye view
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
SPECS:
- Camera
- Image Sensor 1/2.7" Progressive Scan CMOS
- Max. Resolution 2560 × 1920
- Min. Illumination Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Lens
- Lens Type Fixed focal lens, 1.05 mm
- Focal Length & FOV1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
- Focus Fixed
- Lens Mount M12
- Iris Type Fixed
- Aperture F2.25
- Depth Of Field 0.1 m to ∞
- DORI
- DORI D: 21 m, O: 8 m, R: 4 m, I: 2 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 8 m
- Smart Supplement Light Yes
- IR Wavelength 850nm
- Video
-
Main Stream
50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
-
Sub-Stream
50 Hz: 25 fps (640 × 480)
60 Hz: 30 fps (640 × 480)
-
Video Compression
Mainstream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bitrate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Fisheye Display
- Mount TypeSupport wall/table/ceiling mounting
- Audio
- Audio Type Mono sound
- Audio Compression G.711ulaw/G.711 alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bitrate 64 Kbps (G.711 ulaw/G.711 alarm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
- Audio Sampling Rate 8khz/16 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI
-
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client iVMS-4200,Hik-Connect,Hik-Central
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Web Browser
Plug-in required live view: IE 10+,
Local service: Chrome 57.0+, Firefox 52.0+
- Network Storage NAS (NFS, SMB/CIFS)
- Image
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Image Enhancement BLC,3D DNR
- Wide Dynamic Range (WDR)120 dB
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-In Microphone-U: Yes
-
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm1 input, 1 output (max. 12 VDC, 30 A)
- Reset Key Yes
- Power Output 12vdc, max. 100 mA
- Event
- Basic EventMotion detection, video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection
- Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output
- General
-
Power
12V DC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material ADC12
- DimensionØ119.9mm × 41.2 mm (Ø4.7" × 1.6")
- Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
- Weight Approx. 320 g (0.7 lb.)
- With Package Weight Approx. 500 g (1.1 lb.)
- Language13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- Storage Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
- General Function Heartbeat,anti-banding,mirror,password protection
- Approval
-
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
-
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- Environment CE-RoHS: 2011/65/EU
