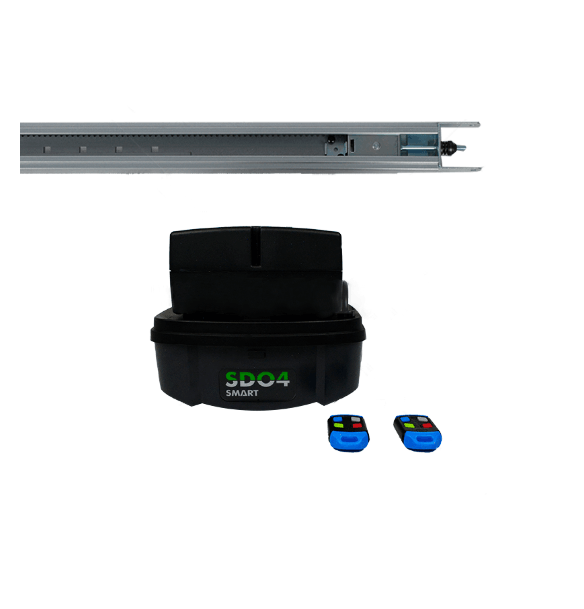

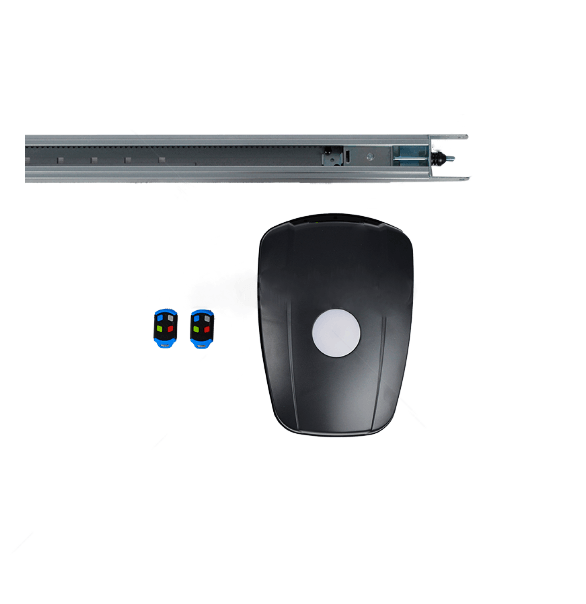

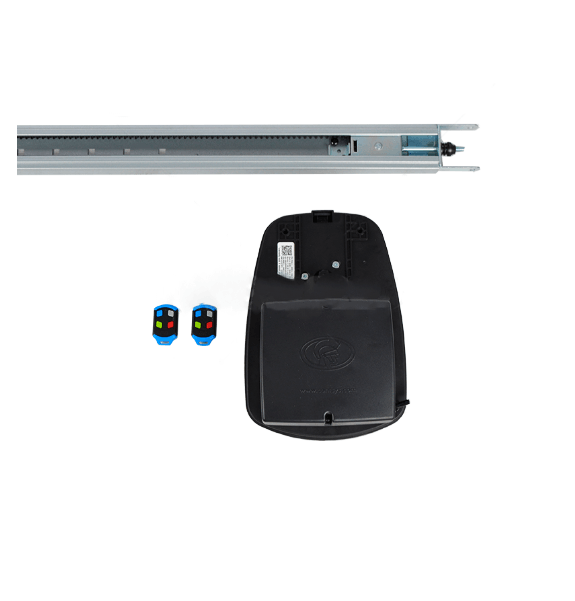

CENTURION GDO SDO4 SMART T10 SECTIONAL KIT

CENTURION GDO SDO4 SMART T10 SECTIONAL KIT

SMΔRT simplicity meets SMΔRT sophistication

• Connecting you to convenience
• Redefining the installation experience
• Making your life easier through SMΔRT technology

Complementing the easiest mechanical installation of any
garage door motor, we’re giving installers intuitive, hands-free commissioning of the system with our interactive and attractive MyCentsys Pro mobile app:

• Lightning-fast wireless setup of garage door limits and
• configuration of settings
• Instant access to advanced diagnostics and monitoring of
• system health
• Intelligent management of remote controls
• Connect to our technical support team directly through the app

FEATURES:

Always-on reliability
You need to be somewhere in a hurry. The power goes out. You’re going nowhere. Unless you have the SDO4 SMΔRT.

The SDO4 SMΔRT comes standard with a reliable battery backup system with extended
service life, so you can continue using your garage door even during lengthy power outages. You can even use solar power to charge the system, and the built-in Battery Saver feature will switch off the unit if the battery voltage drops below a certain point, so that the batteries aren’t drained completely and potentially damaged.

An SDO4 SMΔRT to suit your door
The SDO4 SMΔRT comes in two different models, making it suitable for virtually any
size domestic garage door. Choose the T10 for smaller doors up to 12 square metres, or
automate your bigger door with the powerful T12 model.

Cutting-edge safety
The SDO4 SMΔRT was designed with safety in mind! The built-in anti-crushing circuitry
will cause the door to stop and reverse if an obstruction is detected, helping to prevent
serious damage or injury.

For added safety, add a pair of Photon SMART infrared beams. They’re completely wireless, so it’s easier and more cost-effective than ever before to make your garage door completely safe.

Courtesy light control
The SDO4 SMΔRT’s on-board light is always at your beck and call. Have it work as a Courtesy Light, bathing your garage in a welcoming glow when the operator is activated, or switch it on and off as needed, using one of the Wireless Wall Switch or remote control buttons. Need to get a wrench from your garage to fix a leaky faucet in the middle of the night? Let the SDO4 SMΔRT light the way!

Total security and peace of mind
Holiday Lockout Mode1 is an on-board security feature that allows you to electronically lock your garage door by pressing one of the Wireless Wall Switch buttons, remote control buttons or through the app, giving you total control of who gets in.

The SDO4 SMΔRT has been equipped with an innovative vibration device that will detect
interference at the garage door and can be linked to an external alarm system, armed
response company and even your phone via a GSM device. This not only helps prevents theft and tampering of the motor itself, but can alert you to potential break-ins.

Using the tie-in mobile app, you can receive push notifications on your phone of the garage door’s status, for example when it is opening, giving you even more control and peace of mind.

Reliable DC motor
Our 24V geared DC motor provides enough power to move even the largest door quietly and reliably.

Automatic closing
In conjunction with Safety Beams, if you forget to close your garage door, your SDO4 SMΔRT will do it for you – if you’ve activated the Auto close feature. Or maybe you’re moving stuff out of your garage and need the door to remain open – overriding Autoclose is as easy as pressing a button!

Door Service Monitor
Using adaptive load sensing technology, our Door Service Monitor keeps an eye on the
condition of the door installation. The courtesy lamp will flash and a buzzer will sound when your door springs are worn out and need maintenance.

Quickly switch between door types for the ultimate in reliability
The SDO4 SMΔRT is suitable for both sectional and tip-up doors. Toggling between the
two using the MyCentsys Pro mobile app, automatically and intelligently adapts the run
profile to suit the selected door type.

SPECS:
