AJAX TRANSMITTER MODULE

AJAX TRANSMITTER MODULE

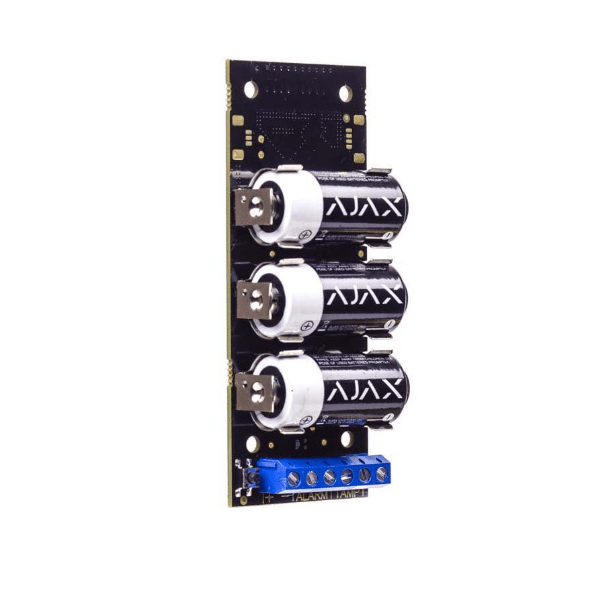

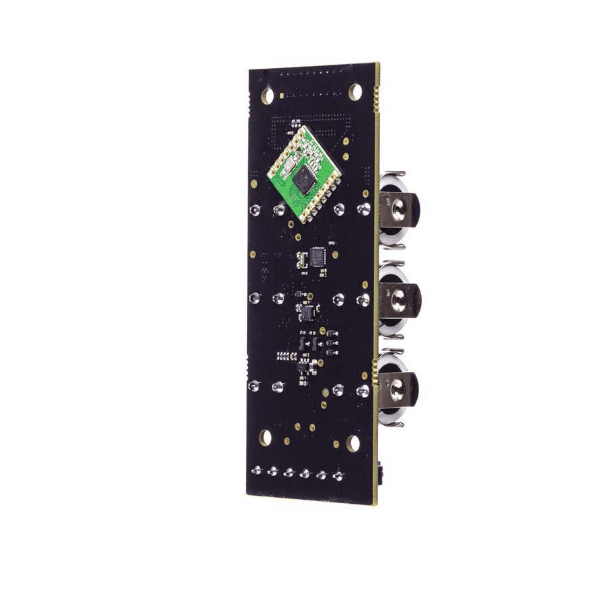

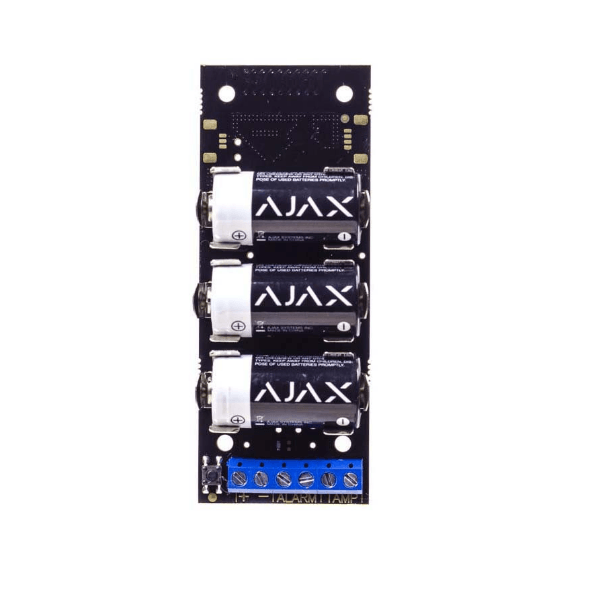

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.

• Authentication to prevent forgery
• Jamming detection and communication channels encryption
• Two-way communication

Converts third-party detectors to the Ajax full-featured devices. It can be used as a power supply for third-party devices. Operates at a temperature of 50°С to −25°С and humidity up to 75%

Principle of operation

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.

Features

Transmitter integrates wired security equipment into Ajax: intrusion detectors, panic and medical buttons, fire and gas detectors. The type of a connected device is specified in the app. The device type defines the text of the notification received by the system users and the alarm code sent to CMS. Moreover, Transmitter is protected with an accelerometer that detects removal and raises the alarm if someone opens the lid of a
connected detector.

Installation and set up

It is installed in the enclosure of outdoor detectors or a mounting box.

Tech specs

Classification Module for third-party detector integration
Device type Wireless
Installation method Indoors/outdoors
Compatibility Operates only with hub Ajax and ReX
Alarm input 1
Tamper input 1
Power supply current Terminals +/−
Power supply output 3.3V
Battery charge indication Yes
Adjustable alarm types Intrusion
Fire
Medical help
Panic button
Gas
Alarm signal delivery time 0.15 s
Power supply Battery: Three CR123A batteries
Power supply voltage: 3V
Battery life — up to 5 years
Jeweller radio technology Communication range with central unit — up to 1,600
m in an open space
Two-way communication between devices
Operating frequencies — 868.0—868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s
Learn more about Jeweller >
Temperature sensor Available
Operating temperature range -25°С to +50°С
Permissible humidity Up to 75%
Anti-sabotage Protection against fraud
Jamming detection
Accelerometer to detect removal
Remote setting and testing +
Dimensions 100x39x22 mm
Weight 74 g
Certification CE
Warranty Replacement and repair within 24 months of the date
of sale. Batteries are not covered under warranty.
Learn more >
Complete set Transmitter
Three CR123A batteries (pre-installed)
Installation set
User’s guide
