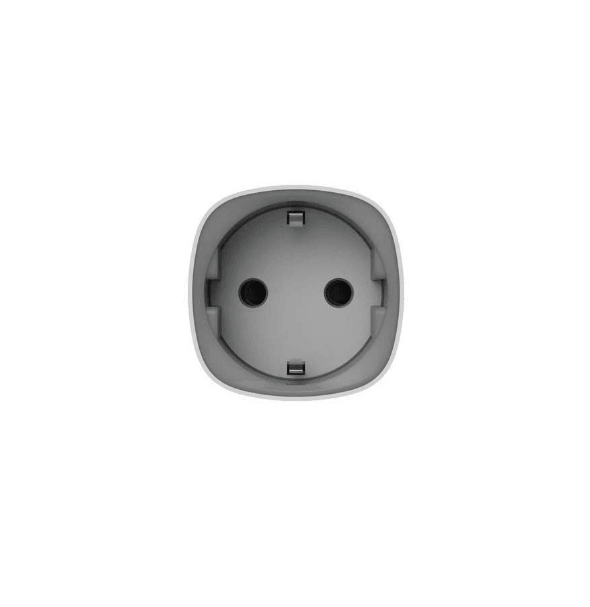

AJAX SMART WALL SOCKET A - WHITE
Wireless smart plug with energy monitor
Everything is ready for you by the time you get home
You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your air humidifier and heat water for your bath. With only a few taps in the application on your way home
No more worrying about forgetting an iron on
When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off: water heater, TV, and computer will no longer operate idly resulting in huge electricity bills.
A boost to comfort and convenience
No more hassles and worries. Socket turns on the kettle and reboots the router without you having to leave your couch. Activate the night mode at bedtime, and, as if by magic, the lights in the house will go out and appliances will be turned off.
Does not block the adjacent sockets
We have made Socket as compact and versatile as possible. It is compatible with EU power outlets, extension blocks, and popular multi-socket plugs. Meanwhile, it does not block the adjacent sockets.
- Suitable for connecting any home appliances
- Compatible with EU type F power outlets
Identifies power vampires
Socket informs you of the devices that consume the most power. As soon as an appliance starts consuming electricity, Socket's LED ring changes color in real time.
- Socket consumes less than 1 W in standby mode
Ensures the longest communication range among smart sockets
Socket can do more than other ordinary WIFI sockets. The device uses Jeweller long-range radio technology that maintains stable communication in large homes and offices.
- Jeweller - 1000 m
- ZigBee - 150 m
- Z-Wave - 150 m
- Wi-Fi - 100 m
Complies with electrical safety standards
Socket complies with the standards for electrical appliances ensuring your safety. Each smart plug is fully tested for quality of materials, effect of over temperatures, and ability to work under load for long periods of time.
Protects curious little ones
Special shutters inside Socket protect your children and prevent them from inserting screwdrivers, pencils, and nails. They also protect from dust and splashes.
- Resistive load of 2.5 kW
- Goes off at a temperature of +85°C
Extends the life of appliances and electronics
Socket prevents failure of appliances resulting from problems in the electrical grid. The smart plug automatically interrupts power supply to appliances and electronics in case of under or overvoltage.
- Immediate warning about power interruption via SMS and Push Notifications
- It automatically resumes functioning after power normalization
Set-up in seconds
Setting up Socket is simple: after a few taps in the mobile app, you can insert the smart plug into a power outlet. The socket ring lights up when it is ready to operate.
SPECS:
Classification
Smart socket
Device type
Remote-controlled
Installation method
In outlet
Compatibility with range extenders
Actuating element
Electromagnetic relay
Service life
At least 200,000 switches
Power supply voltage range
110–230 V~ ± 10%; 50/60 Hz
Output power (resistive load at 230 V)
Up to 2.5 kW
Device energy consumption
≤ 1 W
Maximum current protection
Yes,
11 A if the protection is turned on
13 A if the protection is turned off
Maximum temperature protection
Yes, +85°С
The socket turns off automatically if the temperature is exceed
Overvoltage protection
Yes,
min — 184 V~
max — 253 V~
Electric shock protection class
Class I (with grounding terminal)
Energy consumption parameter check
Yes (current, voltage, power consumption)
Maximum load current
11 A (continuous)
13 A (up to 5 sec)
Alarm signal delivery time
0.15 sec
Load indicator
Yes
The option of adjusting the brightness of the LED frame of the device (high or low)
Operation modes
Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020)
Bistable
Contact state (firmware version 5.54.1.0 or higher)
Normally open
Normally closed
LED indication
Adjustable (LED frame, 7 colours)
Adjustable pulse duration (firmware version 5.54.1.0 or higher)
1–255 sec
Jeweller radio technology
Communication range with the central unit — up to 1,100 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector ping interval: 12–300 s
Anti-sabotage
Protection against forgery
Jamming detection
Remote setting and testing
+
Operating temperature range
From 0°С to +40°С
Operating humidity
Up to 75%
Overall dimensions
65.5 × 45 × 45 mm (with plug)
