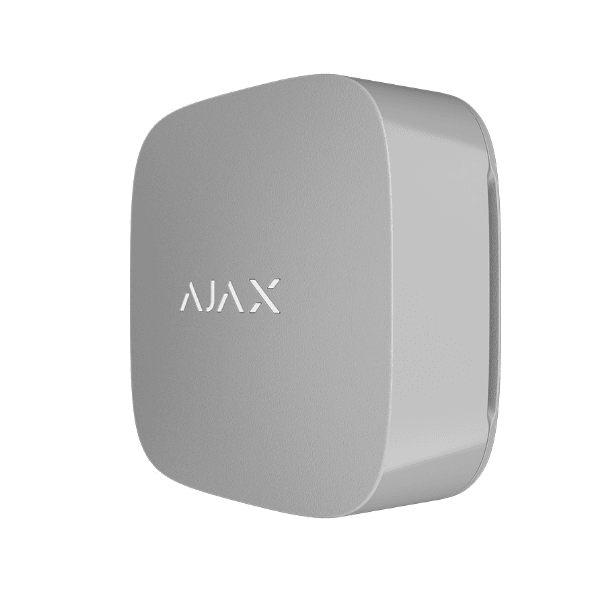

AJAX LIFE QUALITY SMART AIR DETECTOR - WHITE


AJAX LIFE QUALITY SMART AIR DETECTOR - WHITE

R 5,187.00
Unit price  per
history

Safe & Secure Payment Options

AJAX LIFE QUALITY SMART AIR DETECTOR - WHITE

Device for maximized productivity

High air quality is the key to productive work, good health, and healthy sleep. Life Quality provides comprehensive CO2 concentration, temperature, and humidity information through Ajax apps. This allows you to understand whether the microclimate in the room is optimal and what exactly you should improve if not.

How CO2 affects productivity

Part of a comprehensive system

In the Ajax apps, an installer sets the temperature, humidity, and CO2 concentration thresholds to run automation scenarios. Users will enjoy high–quality air in the room thanks to the Life Quality in combination with automation devices from Ajax, supply systems, humidifiers, and air conditioning. The detector is suitable for any room. You can offer it as a solution for offices, industrial premises, and for home use.

  • Scenarios by temperature
  • Scenarios by CO2 level
  • Scenarios by humidity

Precise readings

The Swiss detector SHT40 by Sensirion ensures the accuracy of Life Quality's temperature and humidity readings. The Swedish detector Sunrise from Senseair measures CO2 concentration.. These reliable detectors are used even in medical equipment. The combined humidity and temperature detector is installed in an isolated area of the board so that the detector readings are not affected by the heating of other elements of the device. To measure CO2, an NDIR detector is used instead of VOC sensors calculating carbon concentration mathematically. Life Quality does not give false readings that can occur due to substance vapours, aerosols, or perfumes.

Measurement accuracy

  • ±0,2°C
  • ±1,8%
  • ± (30 + 3%) ppm

In-app monitoring

Your customers can log into the Ajax app to check indoor air quality at any moment. Life Quality indicators are available on the devices and rooms screen. Users can check the indicators for a certain time or date. In the app, each indicator is represented by a chart for dynamic air quality assessment and time dependence detection.

Jeweller and Wings are radio protocols for fast and reliable two-way communication between hubs and connected devices. The protocols provide a wireless radio communication range of up to 1,700 m, which allows you to install detectors even in a large open space. Jeweller provides all the necessary information. This way, users will always have access to detector readings in the Ajax apps, regardless of the number of system devices. Wings transmits large amounts of data after the communication loss and recovery between the detector and the hub.

Quick pairing and installation

Life Quality saves the installer's time. The detector connects to an Ajax security system in less than a minute. You simply need to open the Ajax app, scan the QR code, and add a detector to a room and group. 9:41 Back Add Device QR code is located on device body or on the packaging No need to disassemble the enclosure. SmartBracket mounting panel allowing to securely fix it on a wall or flat surface. The detector is equipped with an accelerometer to notify if someone tries to remove the device from the mounting panel or change its position.

SPECS:

Compatibility


Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit events.
It features:
  • Two-way communication.
  • Protection against spoofing.
  • Block encryption with a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW
Automatic power regulation to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 1,700 m
Between the detector and a hub/range extender in an open space.

Encrypted radio communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Radio frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology for backup connection with the hub (or radio signal range extender).
It features:
  • Two-way communication.
  • Block encryption with a dynamic key.
  • Re-uploading data packets in case of error during data transfer.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.

Radio communication range

up to 1,700 m
Between the detector and a hub/range extender in an open space.

Encrypted radio communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Radio frequency hopping

To prevent radio interference and jamming.

Sensitive elements

Temperature and humidity sensor
CO2 (carbon dioxide) sensor

Temperature measurement

Sensitive element

Digital temperature and humidity sensor
Values in the Ajax apps are updated depending on the frequency of the "hub—detector" polling interval, but not less than once per minute.

Measurement range

from 0°C to +50°C
The value is available in the device States in the Ajax app.

Measurement accuracy

±0.2°C

Measurement pitch

0.1°C
The minimum temperature change value recorded in the Ajax apps.
Comfort level from 14 to 21°C
Temperature range

Humidity measurement

Sensitive element

Digital temperature and humidity sensor
Values in the Ajax apps are updated depending on the frequency of the "hub—detector" polling interval, but not less than once per minute.

Measurement range

from 0% to 100%
The value is available in the device States in the Ajax app.

Measurement accuracy

±1.8%

Measurement pitch

1%
The minimum humidity change value recorded in the Ajax app.
Comfort level from 30 to 60%
Humidity range

Carbon dioxide (CO₂) concentration measurement

Sensitive element

digital carbon dioxide sensor
Values in the Ajax apps are updated depending on the frequency of the "hub—detector" polling interval, but not less than once per minute.

Measurement range

from 400 to 10,000 ppm
The value is available in the device States in the Ajax app.

Air quality assessment levels

normal air: up to 1000 ppm
moderately polluted air: from 1000 to 1400 ppm
polluted air: from 1400 to 2000 ppm
critically polluted air: more than 2000 ppm
Effects on well-being:
from 1000 to 2500 ppm— lethargy;
from 2500 to 5000 ppm—possible adverse health effects;
5000 ppm and above—the maximum permissible concentration during an 8-hour working day.

Measurement accuracy

±30 ppm or ±3%
When the CO₂ concentration is less than 5,000 ppm. For higher concentrations, the measurement error increases.

Measurement pitch

1 ppm
The minimum value of the change in carbon dioxide concentration recorded in the Ajax app.
Acceptable level to 1100 ppm
CO2 range

Additional features

Charts

of temperature, humidity, and carbon dioxide concentration
Available in the Ajax apps. The data is updated in real time. Measurements are stored for up to 2 years.
Discrete value: 1 minute.

LED indication

green: Normal air
yellow: Slightly polluted air
red: Polluted air
purple: Сritically polluted air
The LED indicator on the device enclosure lights up in the event of a critical change in air quality. The user can also turn on the indication by touching the touch sensitive button on the front panel of the detector.

Automatic calibration

once every 1–14 days
The detector selects a calibration interval depending on the circumstances and automatically calibrates the carbon dioxide sensor. In normal conditions (ventilated room), manual calibration is not required. The digital humidity and temperature sensor does not require additional calibration.

Manual calibration

is run in the Ajax apps. Suitable for unventilated rooms. We recommend calibrating the detector once every 2-3 weeks in such rooms.

Scenarios

reactions to changes in temperature, humidity, and carbon dioxide concentration
For example, turning on plenum ventilation if the air quality deteriorates.

Backup memory

up to 3 days
If the detector loses communication with the hub (or radio signal range extender), it stores all measured values. After the connection is restored, all values are sent to the Ajax app.

Recommendations

The device is designed only for indoor installation at any height. It is not necessary to use the SmartBracket mounting panel.
The detector can be placed on a table or shelf.

Sabotage protection

Accelerometer

Notifies on attempts to tear off the detector from a surface, remove it from the mounting panel, or move the detector if it is placed on a table or shelf.

Protection against spoofing

device authentication

Communication loss detection

within 36 seconds
The detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

2 × CR123A battery
Up to 2.5 years of autonomous operation.

Enclosure

Dimensions

77 × 77 × 34.5 mm

Weight

127 g

Operating temperature range

from 0°C to +50°C

Operating humidity

up to 85%

Protection class

IP50

Colours

Black
White

Complete set

LifeQuality Jeweller
SmartBracket mounting panel
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide
