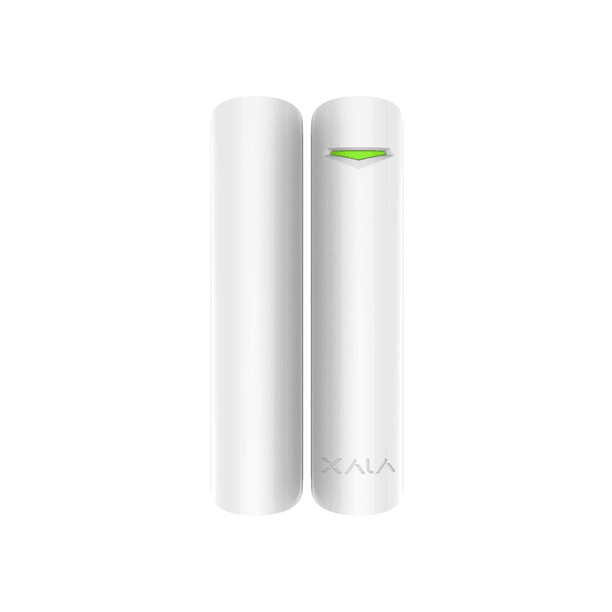

AJAX DOOR PROTECT - WHITE
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features

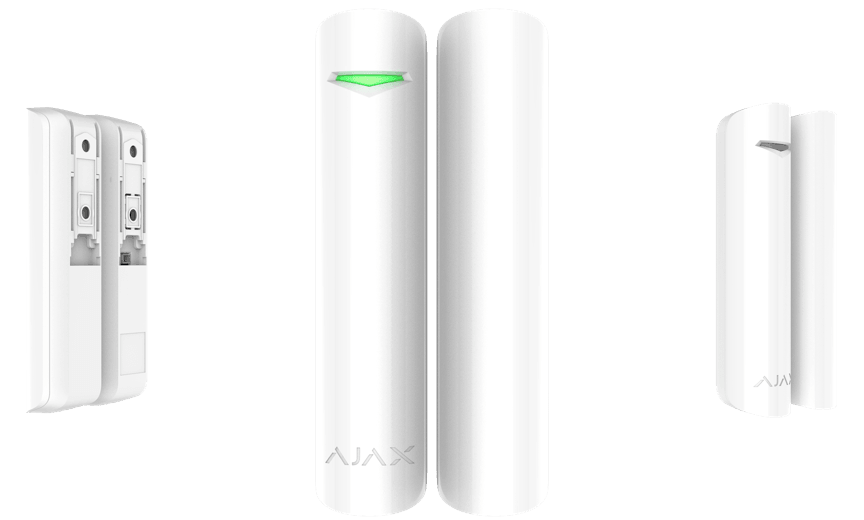

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up
Ready to operate straight out the box : the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
Classification : Point magnetic and contact radio channel security detector
Type of detector : Wireless
Installation method : Indoors
Sensing element : Reed switch
Alarm signal delivery time : 0.15 s
Activation threshold : Small magnet — 1 cm
Big magnet — 2 cm
Big magnet — 2 cm
Power supply : Battery : CR123A battery, 3 V
Battery life : Up to 7 years
Sensor resource
2,000,000 openings
Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Temperature sensor : Available
Operating temperature range : From -10°С to +40°С
Permissible humidity : Up to 75%
Anti-sabotage : Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing : +
Dimensions
Diameter : 20 mm
Height: : 90 mm
Height: : 90 mm
Weight : 29 g

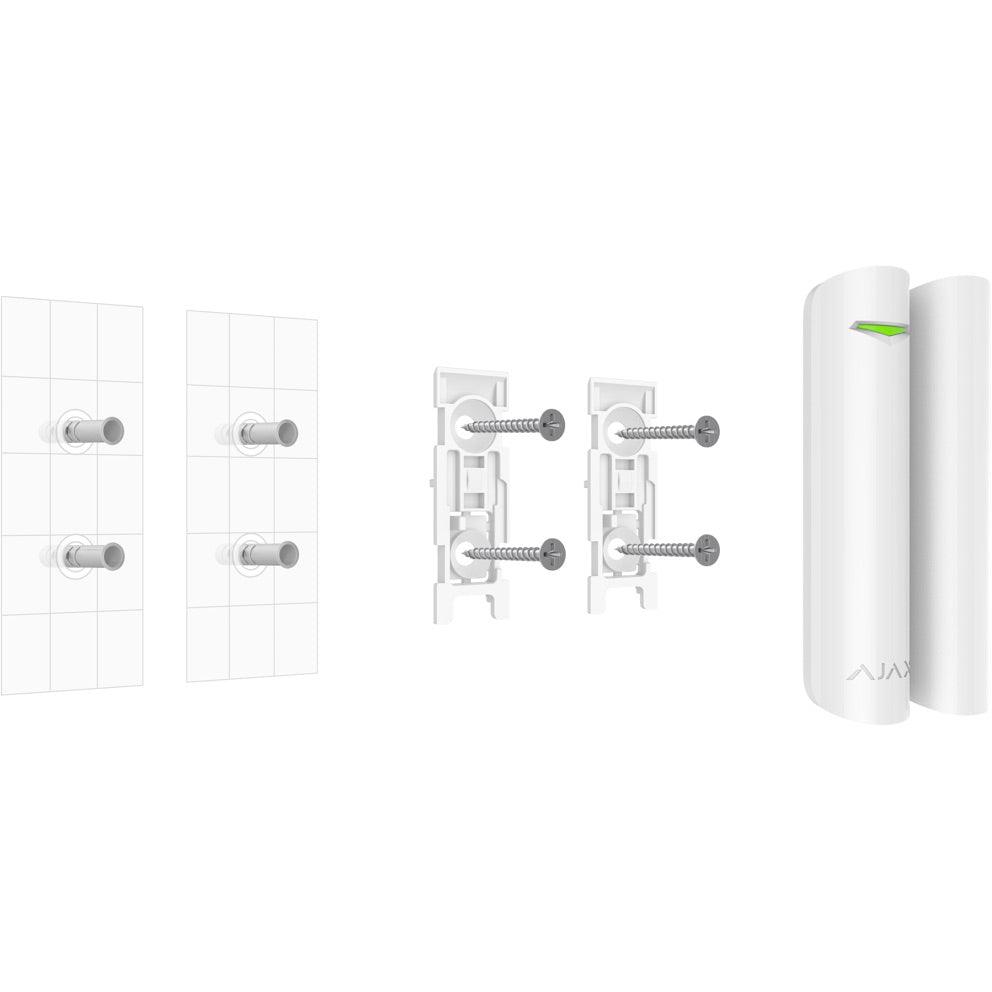

Complete set includes :
DoorProtect opening detector
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.
Installation and set up
Ready to operate straight out the box : the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Tech specs
Classification : Point magnetic and contact radio channel security detector
Type of detector : Wireless
Installation method : Indoors
Sensing element : Reed switch
Alarm signal delivery time : 0.15 s
Activation threshold : Small magnet — 1 cm
Big magnet — 2 cm
Big magnet — 2 cm
Power supply : Battery : CR123A battery, 3 V
Battery life : Up to 7 years
Sensor resource
2,000,000 openings
Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Temperature sensor : Available
Operating temperature range : From -10°С to +40°С
Permissible humidity : Up to 75%
Anti-sabotage : Protection against fraud, Jamming detection, Tamper-resistant
Remote setting and testing : +
Dimensions
Diameter : 20 mm
Height: : 90 mm
Height: : 90 mm
Weight : 29 g
Complete set includes :
DoorProtect opening detector
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User's guide
