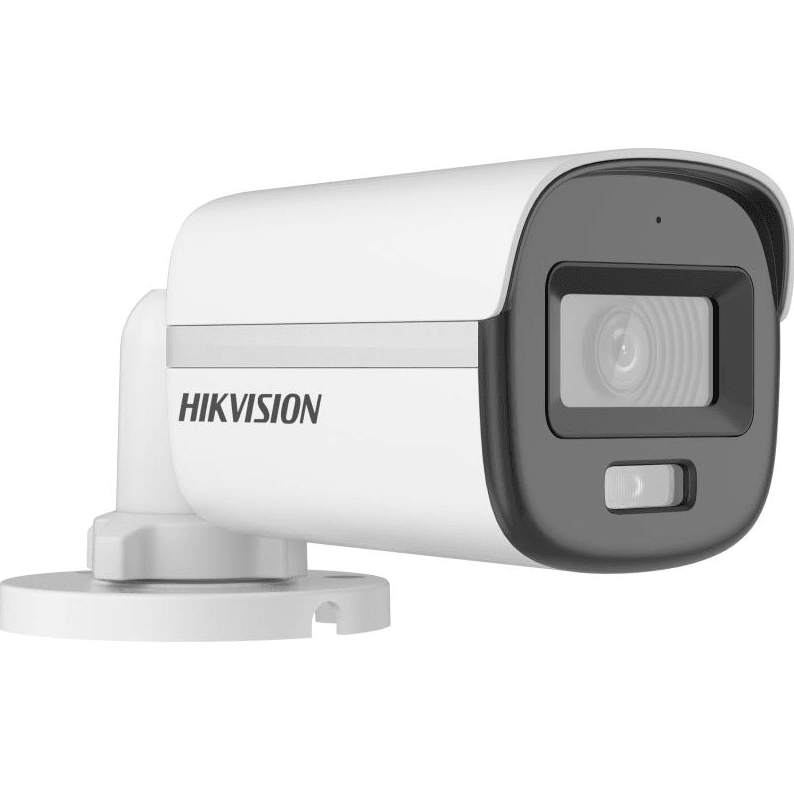

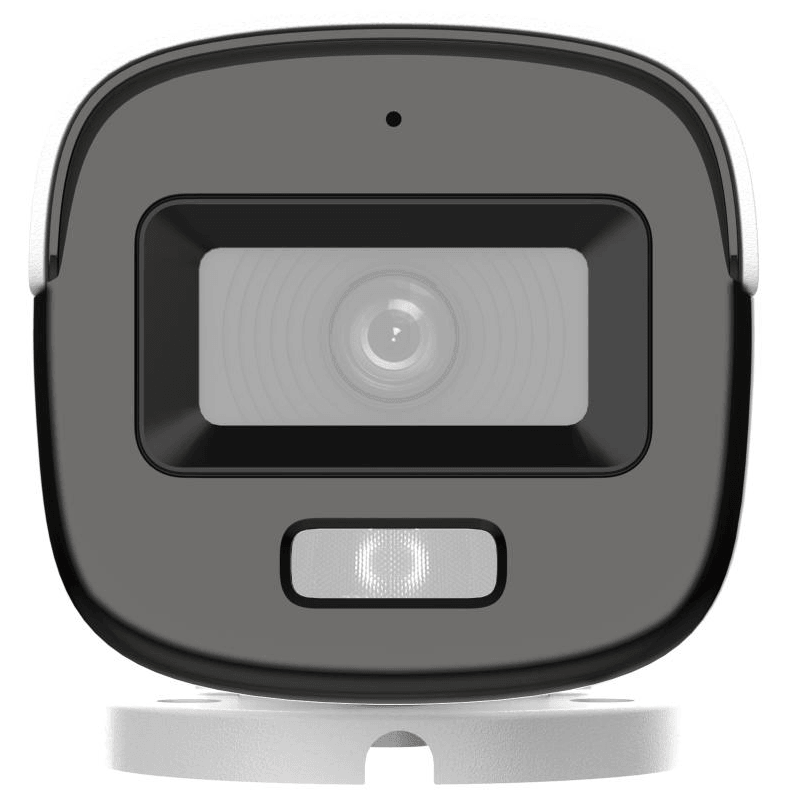

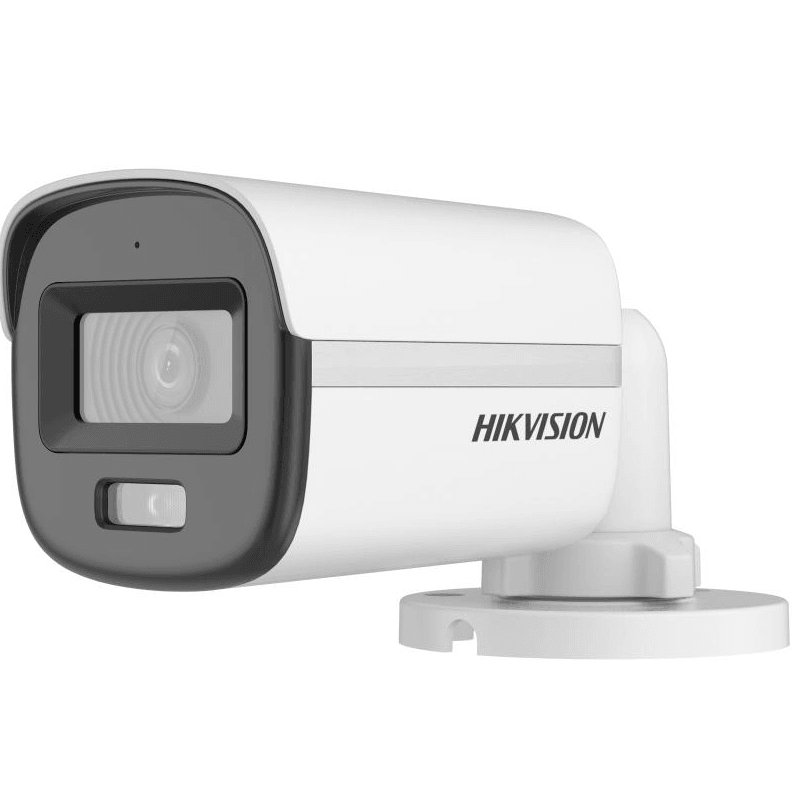

HIK 3K HYBRID COLORVU BULLET 2.8MM DS-2CE10KF0T-LP
DS-2CE10KF0T-LPFS(2.8mm)
Discover the power of 3K hybrid light with a fixed mini bullet camera that delivers high-quality imaging at 2960 × 1665 resolution. Experience 24/7 color imaging with an F1.0 aperture and your choice of 2.8 mm or 3.6 mm fixed focal lens. With an impressive 20 m IR distance and 20 m white light distance, this camera is perfect for bright night imaging.
Use one port for four switchable signals (TVI/AHD/CVI/CVBS) and enjoy high-quality audio through the coaxial cable or built-in microphone. Plus, with an IP67 rating, this camera is water and dust resistant. The Smart-Hybrid light feature allows for flexible lighting options, giving you optimal security.
FEATURES:
-
High quality imaging with 3K, 2960 × 1665 resolution
-
24/7 color imaging with F1.0 aperture
-
2.8 mm and 3.6 mm fixed focal lens
-
Up to 20 m IR distance for bright night imaging
-
Up to 20 m white light distance for bright night imaging
-
One port for four switchable signals (TVI/AHD/CVI/CVBS)
-
High quality audio with audio over coaxial cable, built-in mic
-
Water and dust resistant (IP67)
-
Smart-Hybrid light, optimize your security with flexible lighting options
SPECS:
- Camera
-
Image Sensor 3K CMOS
-
Signal System PAL/NTSC
-
Resolution2960 (H) × 1665 (V)
-
Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI: 4 MP @25 fps/30 fps
CVBS: PAL/NTSC
-
Min. Illumination0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
-
Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
-
Lens2.8 mm, 3.6 mm fixed focal lens
-
Field Of View
2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
3.6 mm, horizontal FOV: 94°, vertical FOV: 50°, diagonal FOV: 112°
- Lens Mount M12
-
Light Alarm Solid Light Alarm (White Light)
-
Day & Night ICR
-
WDR (Wide Dynamic Range)Digital WDR
-
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Illuminator
-
Supplement Light Type
IR,
White Light
-
Supplement Light Range IR: Up to 20 m,White Light: Up to 20 m
-
Smart Supplement Light Yes
- Image
-
White Light Auto/Off
-
Image Mode STD/HIGH-SAT/HIGHLIGHT
-
AGC Yes
- Day/Night Mode Auto
-
White Balance Auto/Outdoor/Global/Manual
-
AE (Auto Exposure) ModeHLS;DWDR;BLC;HLC;Global
-
Noise Reduction2D DNR
-
LanguageEnglish
-
FunctionSmart IR;Brightness;Sharpness;AGC;Anti-Banding
- Interface
-
Video Output Switchable TVI/AHD/CVI/CVBS
-
Audio In Built-in mic
- General
- Power 12v Dc ± 25%, max.3.9 W,*You are recommended to use one power adapter to supply the power for one camera.
-
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Protection Level IP67
- Material Plastic
- Communication HIKVISION-C
-
Dimension 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
-
Weight Approx. 230 g (0.51 lb.)
