ZKTECO ZK9500 USB FINGERPRINT ENROLLMENT

ZKTECO ZK9500 USB FINGERPRINT ENROLLMENT

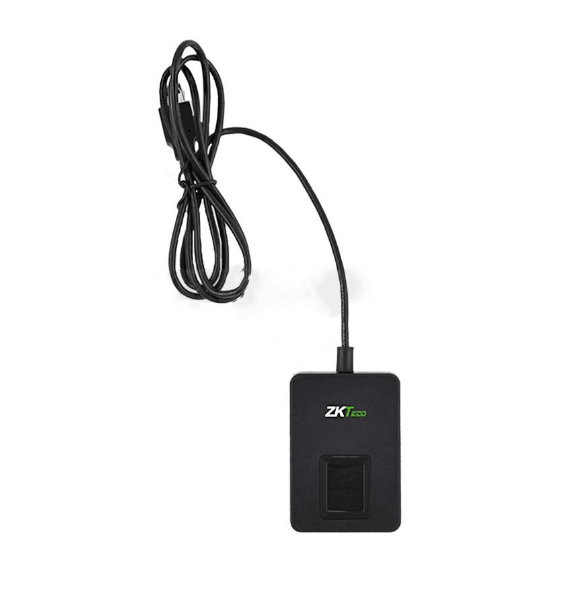

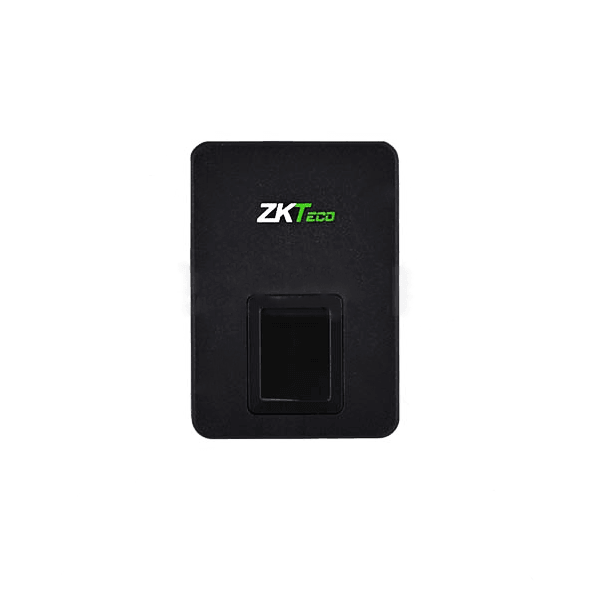

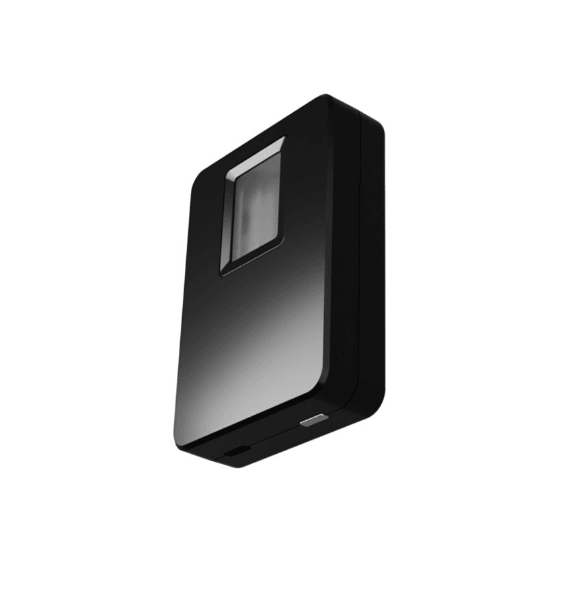

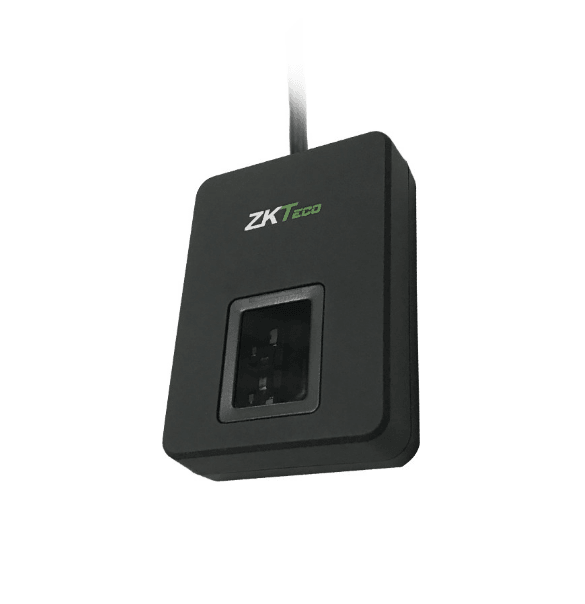

The ZK9500 is an advanced optical fingerprint scanner developed by ZKTeco. Featuring finger detection and high-resolution fingerprint image capture, this small desktop device is ideal for fast and easy fingerprint registration.

With its low power consumption, it can also be used with Android tablets and mobile phones. Additionally, we offer SDKs for customers to develop their own applications, providing versatility and customization options.

FEATURES:

• Support fingerprint detection function
• Quick recognition of dry, wet and rough fingerprint
• Available SDK for development
• High Speed USB 2.0

SPECS:

• Model Name ZK9500
• Material Optical
• CPU 280MHz DSP
• Flash 32 MB
• SoC RTOS
• Image Quality 2 million pixels CMOS
• Encrypted Fingerprint Data YES
• Sunlight Operation Must, dark field and automatic gain/exposure
• Water Splash No damage and normal operation is ensured
• Dry, Wet, or Rough Fingerprints Work well
• Power Consumption 5V:200mA scanning;5V:60mA idle(waiting for finger)
• Live Fingerprint Detection NO
• LED Green
• Product Certifications FBI(PIV), FCC, CE, RoHS
• Power Voltage 5V
• Power Current 200mA
• Communication USB 2.0/USB1.1
• Interface Socket USB Type A
• Image Resolution 500dpi
• Effective Collecting Area 15.24 * 20.32 mm (FAP20)
• Collecting Area 16.5 * 23 mm
• Image Size 300 * 400 pixel(FAP20 )
• Dimension 75.5 * 53.2 * 19 mm (L*W*H)
• Image Format RAW,BMP,JPG
• Template ZKFinger V10.0
• Gray Level 256
• Operating Environment -20 °C ~ +50 °C; 90% r.h.
