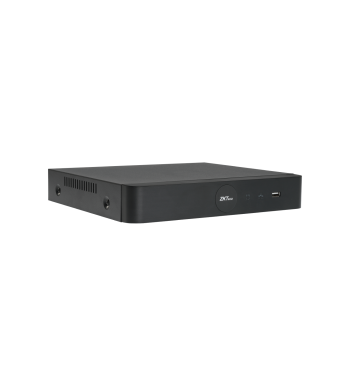

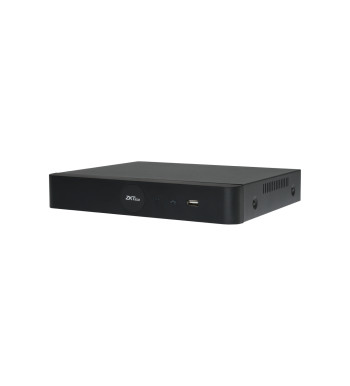

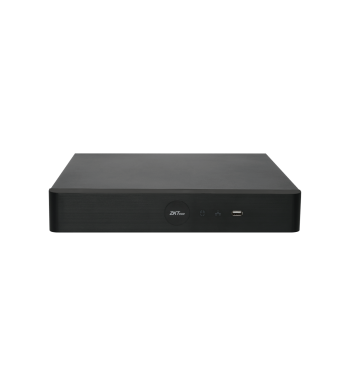

The ZKTeco Z8508NEQ-8P-S is an 8-channel BioSense network video recorder with integrated PoE, designed for compatible IP CCTV systems requiring central recording, intelligent-event support and simplified camera power/network connections.
Key Features
- 8-channel IP camera recording
- 8 integrated 10/100Mbps PoE ports
- IEEE 802.3af / 802.3at PoE support
- Extended PoE transmission up to approximately 250m at 10Mbps with compatible equipment and cabling
- Maximum recording / decoding resolution up to 5MP
- H.265 and H.264 video compression
- Up to 8-channel 5MP decoding at 25/30fps
- Incoming and outgoing bandwidth up to approximately 60Mbps
- Up to 4-channel synchronous playback
- Supports compatible camera-side analytics including line crossing, area detection, smart motion, target counting and object-left/lost events
- ONVIF and RTSP compatibility
- HDMI and VGA display outputs
Storage & Interfaces
-
Storage: 1 x SATA HDD bay, up to approximately 8TB
-
Network: 1 x 10/100Mbps RJ45 uplink
-
USB: 3 x USB 2.0
-
Power: 12V DC / 2A
-
Dimensions: approximately 255 x 210 x 43mm
What's in the Box
- 1 x ZKTeco Z8508NEQ-8P-S NVR
- 1 x Power Supply
- Basic installation accessories / documentation as supplied
HDD note: A hard drive is not included unless explicitly specified with the product.
