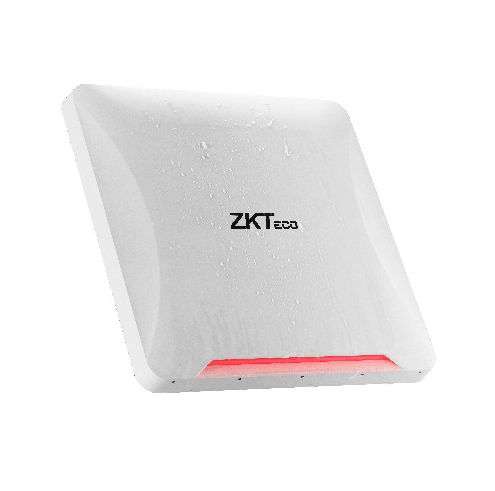

ZKTECO UHF5E-PRO LED UHF READER - 6M
The ZKTECO UHF5E-PRO LED UHF READER - 6M is an advanced product that boasts improved stability, longer reading distance, and faster recognition speed. With a built-in passive UHF card function, this reader is perfect for applications in Vehicle Management and Personnel Management. Additionally, it meets the rigorous standards of CE, FCC, and other security certifications.
FEATURES:
- Support two working modes: Trigger to Read & Always Read (Default)
- Support different wiegand data output (Wiegand 26 by default)
- LED at the bottom of readers which indicate the reading status (7-color indicators: red, green, blue, yellow, cyan, purple, white)
- Multiple communication modes, supporting Wiegand and RS485
- Protection class IP67
SPECS:
|
Model |
UHF5E Pro |
|
Reading Distance |
2 ~ 8 meters (Hand held test) Actual scenario test 4m |
|
Antenna Gain |
9dBi |
|
Dimensions (mm) |
308.5 * 308.5 * 67.5 |
|
Weight |
1.8kg |
|
Power |
1.2 - 4.2W |
|
Frequency |
E: 865 MHz - 868MHz F: 902 MHz - 906MHz (adjustable)) |
|
Communication |
Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options) |
|
Interface Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
|
Working Mode |
Always Read (Default) & Trigger to Read |
|
Output Power |
19 dBm - 30 dBm |
|
Protection Level |
IP67 |
|
Working Voltage |
DC 9-15V |
|
Working Temperature and Humidity |
20°C - 60°C; <95% |
|
Storage Temperature and Humidity |
20°C - 60°C; <95% |
|
RS485 |
Optional baud rate (9600, 19200, 38400, 57600, 115200), the default is 115200 |
