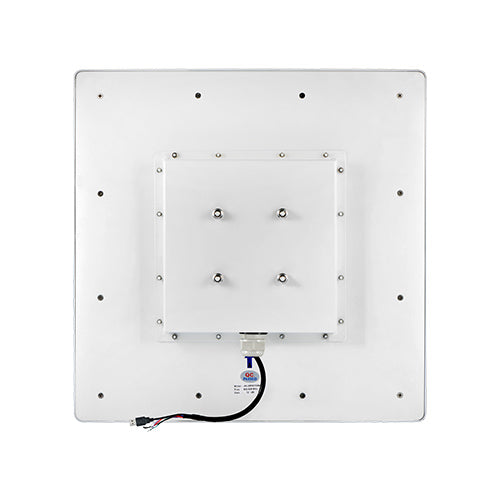

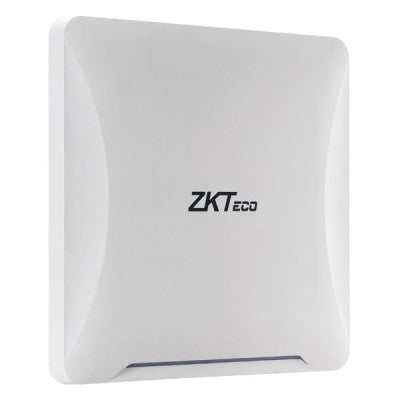

The ZKTeco UHF10E Pro is a long-range UHF RFID reader for compatible vehicle-access, barrier, logistics and asset-identification systems. The European-frequency version operates in the 865-868MHz UHF band and is designed for reliable long-distance tag reading.
Key Features
- Long-range UHF RFID reading
- Typical rated reading distance approximately 10-20m under suitable conditions
- 865-868MHz operating frequency
- 12dBi integrated antenna gain
- Supports Wiegand and RS485 communication
- USB interface for configuration
- Continuous-read and trigger-to-read modes
- Multi-colour LED status indication
- IP66-rated housing for indoor or outdoor installation
- Supports EPC C1G2 / ISO 18000-6C compatible tags
Technical Specifications
-
Model: UHF10E Pro
-
Frequency: 865-868MHz
-
Antenna Gain: 12dBi
-
Power Input: 9-15V DC
-
Power Consumption: approximately 1.2-4.5W
-
Dimensions: approximately 445 x 445 x 67.5mm
-
Ingress Protection: IP66
What's in the Box
- 1 x ZKTeco UHF10E Pro Long-Range UHF RFID Reader
Range note: Actual reading distance depends on the tag, mounting position, interference, vehicle orientation and installation environment.
