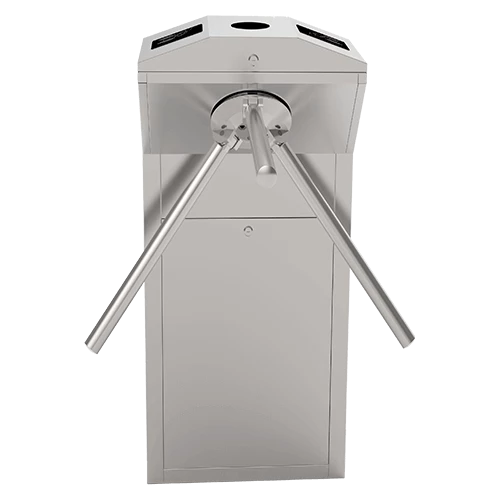

The ZKTeco TS1022 Pro is a single-lane tripod turnstile with an integrated access-control configuration for fingerprint and RFID verification. It is designed for controlled pedestrian entry in offices, commercial buildings and other secure facilities.
Key Features
- Fingerprint and RFID access-control configuration
- Bi-directional tripod turnstile
- Automatic arm-drop function during emergencies or power loss
- SUS304 stainless-steel housing, lid and barrier arms
- LED direction / status indication
- Compact single-lane design
- Suitable for indoor use and sheltered outdoor installations
- Controller and biometric reader configuration included with the TS1022 Pro model
Technical Specifications
-
Model: TS1022 Pro
-
Power: AC 110/220V, 50/60Hz
-
Typical Throughput: up to 30 persons/minute via RFID; up to 25 persons/minute via fingerprint
-
Lane Width: approximately 500mm
-
Dimensions: approximately 520 x 310 x 1010mm
-
Operating Temperature: -28°C to +60°C
-
Security Level: Medium
-
MCBF: approximately 1 million cycles
What's in the Box
- 1 x ZKTeco TS1022 Pro Tripod Turnstile
- Integrated Access-Control Controller
- Fingerprint / RFID Reader Configuration
- Mounting Hardware
- User / Installation Documentation
