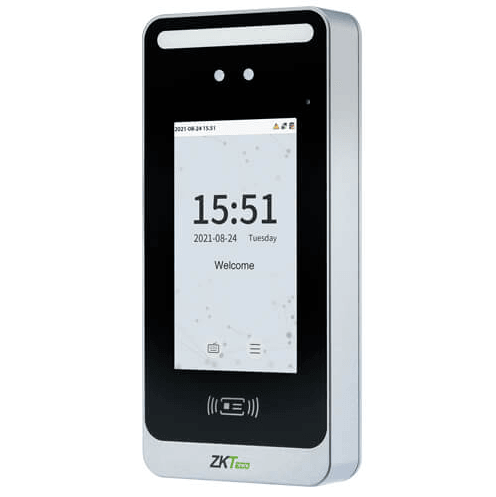

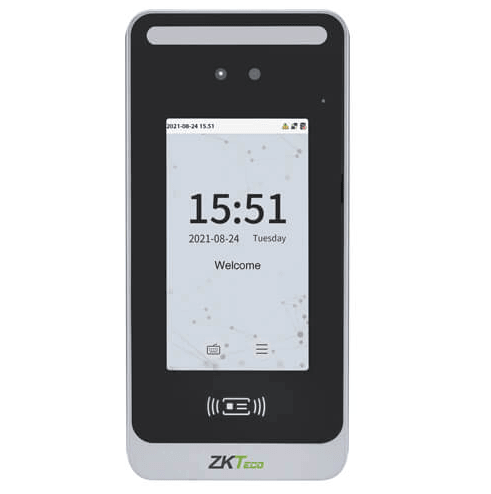

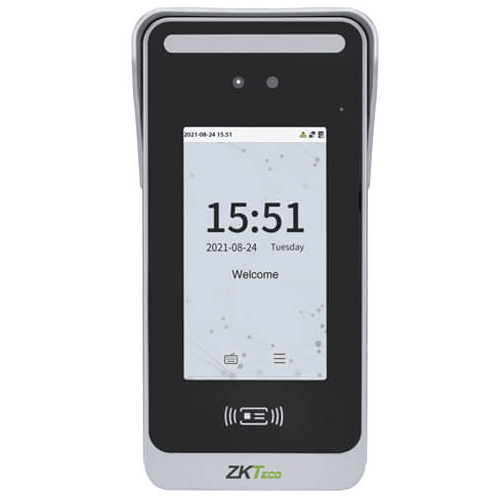

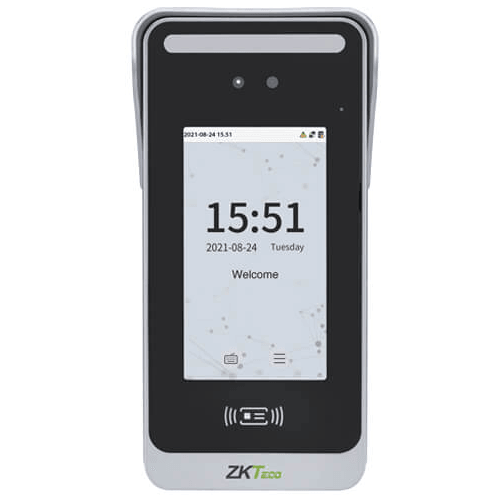

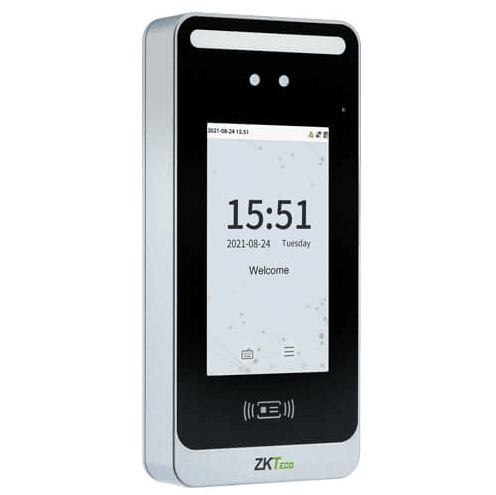

ZKTECO SPEEDFACEM4 MULTI BIOMETRIC READER

ZKTECO SPEEDFACEM4 MULTI BIOMETRIC READER

The ZKTECO SPEEDFACEM4 MULTI BIOMETRIC READER utilizes advanced Visible Light Facial Recognition technology with an anti-spoofing algorithm designed to prevent print, video, and 3D mask attacks. It offers multiple verification methods, including face, palm, card, and password, and has a versatile range of card module options.

With adjustable brightness and a large storage capacity for face, palm, and card templates, as well as logs, this reader is the perfect security solution for any environment. It also boasts an IP66 rating, ensuring durability and protection against water and dust.

2 meters of recognition distance and extra wide angle recognition

The range of recognition has expanded to 2 meters, significantly enhancing the maximum traffic rate. Compared to other algorithms which only allow detection of face angles up to +/-15°, SpeedFace M4 doubles this range, allowing for head rotation and tilt up to +/- 30°. Additionally, this multi-biometric reader offers a unique touchless palm authentication method with a hand tracking technique that supports angles up to +/-60° in the roll axis and a recognition distance of 50cm.

SPECS:

Display 5" Touch Screen
Face Capacity 6,000
Palm Capacity 3,000
Card Capacity 10,000
Transaction 200,000
Operating System Linux
Function
ID Card, ADMS, DNS, T9 Input, DST, Camera, 9-digit User ID,
Advance Access Control, Groups, Holidays, Anti-passback, Record Query,
Tamper Switch Alarm, Bell Scheduling, POE (Optional, IEEE 802.3at-2009)
Hardware
1GHz Dual Core CPU
1G RAM / 8G Flash
2MP WDR Low Light Camera
Adjustable LED Supplement Lighting

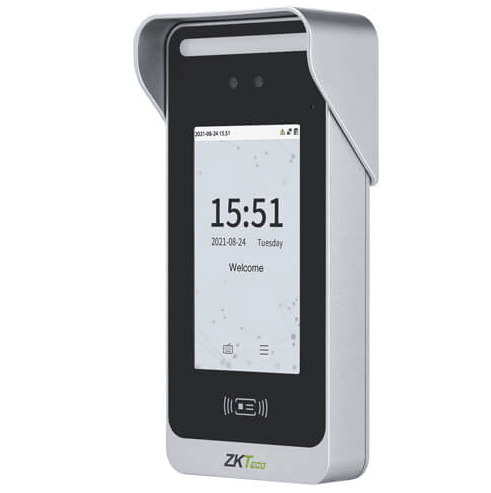

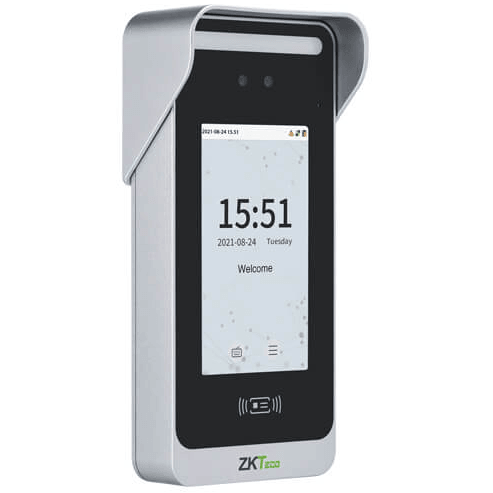

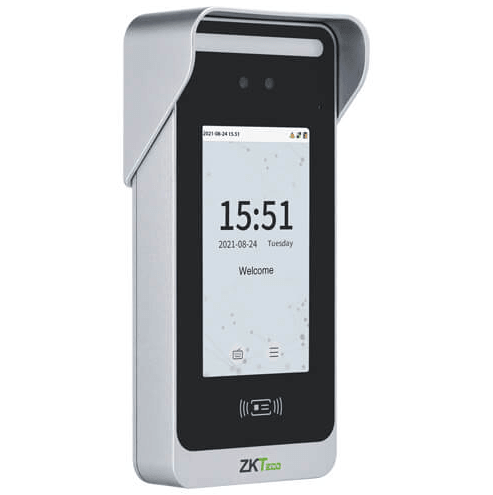

Rain Cover (Optional)
Communication TCP/IP, Wi-Fi (Optional), Wiegand Input / Output, RS485
Access Control Interface 3rd-party Electric Lock, Door Sensor, Exit Button, Alarm Output, Aux. Input
Optional Card Module IC / HID / iClass / Felica / Desfire EV1 / EV2 / Legic
Facial Recognition Speed ≤0.5s per face
Biometrics Algorithms ZKFace V5.8 & ZKPalm V12.0
Protection Level IP66
Power Voltage: DC 12V
Current: Max. 3A
Working Humidity 10% to 90%
Working Temperature -30°C to 60°C
Dimensions (W*H*D) 103.83*212.41*50.60 (mm)
Supported Software ZKBioAccess IVS
