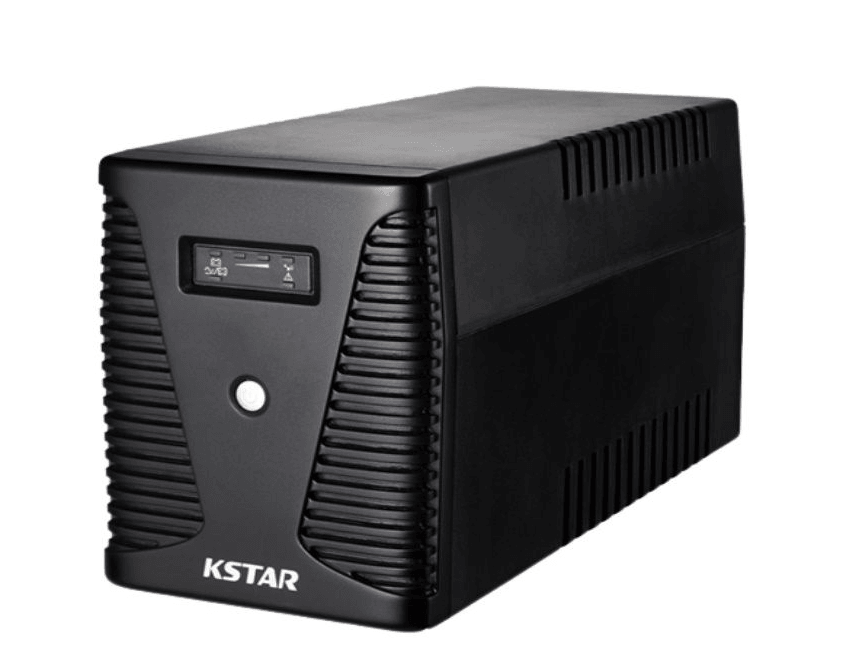

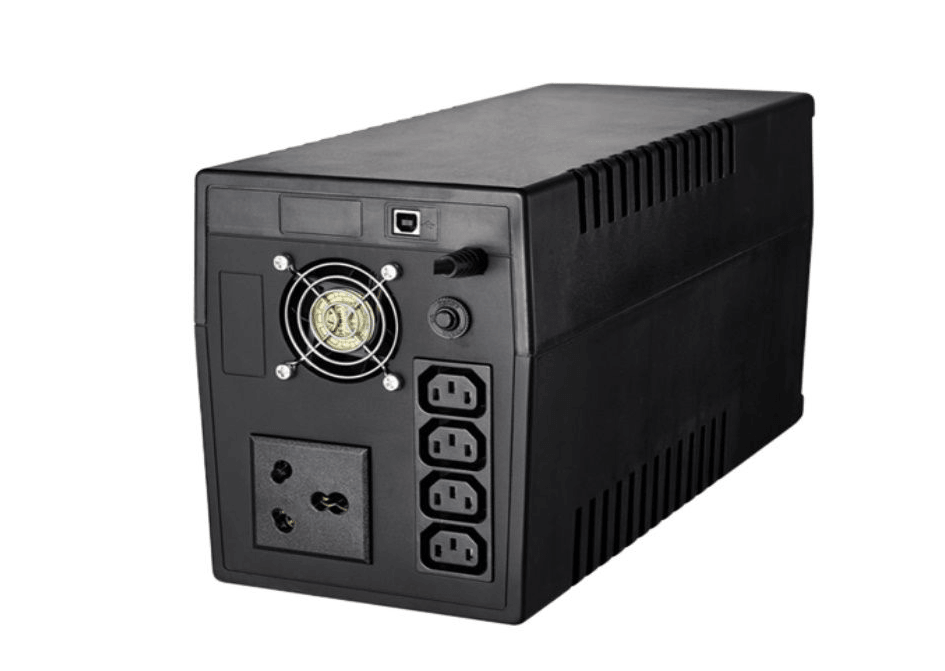

KSTAR 2000VA LINE INTERACTIVE UPS W/USB
The KSTAR UA100 Line Interactive UPS - 2000VA boasts an exceptional charging mode, providing comprehensive power protection against surges and spikes while delivering pure voltage through its AC voltage stabilizer.
It is user-friendly and compact, making it the perfect backup power source for terminal equipment, PCs, stations, and SOHO equipment. Its built-in self-diagnostic function ensures easy installation and operation, making it a top choice for any buyer.
FEATURES
- AVR boost and buck
- Cold start function
- Smart RS-232/USB interface for power management
- Built-in self-diagnostic function
- Modem/LAN internet protection
- Generator compatible(Optional)
SPECIFICATIONS
| Model |
UA200 |
| Capacity |
2000VA/1440Watts |
| Input |
| Normal Input Voltage |
10/120Vac or 220/230/240 Vac |
| Operating Voltage Range |
81-145Vac/162-290 Vac |
| Operating Frequency Range |
50/60 Hz (1+/- 10%) |
| Output |
| Output Voltage Range (Batt. Mode) |
Simulated Sinewave at nominal voltage +/-10% |
| Frequency Range (Batt. Mode) |
50Hz or 60Hz +/- 1Hz |
| Transfer Time |
Typical 2-6ms, 10ms max |
| Battery |
| Batter Type and Number |
12V/9Ah x2 |
| Typical Recharge Time |
6-8 hours (To 90% capacity) |
| Protection |
| Full Protection |
Overload and Overcharge Protection |
| Indicators |
| Indicator |
AC Mode, Battery Mode, Load Level, Battery Level |
| Alarm |
| Battery Mode |
Sounding every 10 seconds |
| Battery Low |
Sounding every second |
| Overload |
Sounding every 0.5 seconds |
| Battery Replacement |
Sounding every 2 seconds |
| Alarm Fault |
Continuously Sounding |
| Management |
| USB and RS-232 Port (Optional) |
Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC |
| Environment |
| Operating Temperature |
0-40 Degree Celsius |
| Humidity Range |
0-95% (Non-condensing) |
| Noise Level |
|
| Physical |
| Dimensions |
158mm x 380mm x 198mm (W x D x H) |
| Net Weight |
11.5kg |
| Standards |
| Safety |
IEC/EN62040-1IEC/EN60950-1 |
| EMC |
IEC/EN62040-2IEC61000-4-2IEC61000-4-3IEC61000-4-4IEC61000-4-5IEC61000-4-6IEC61000-4-8 |
