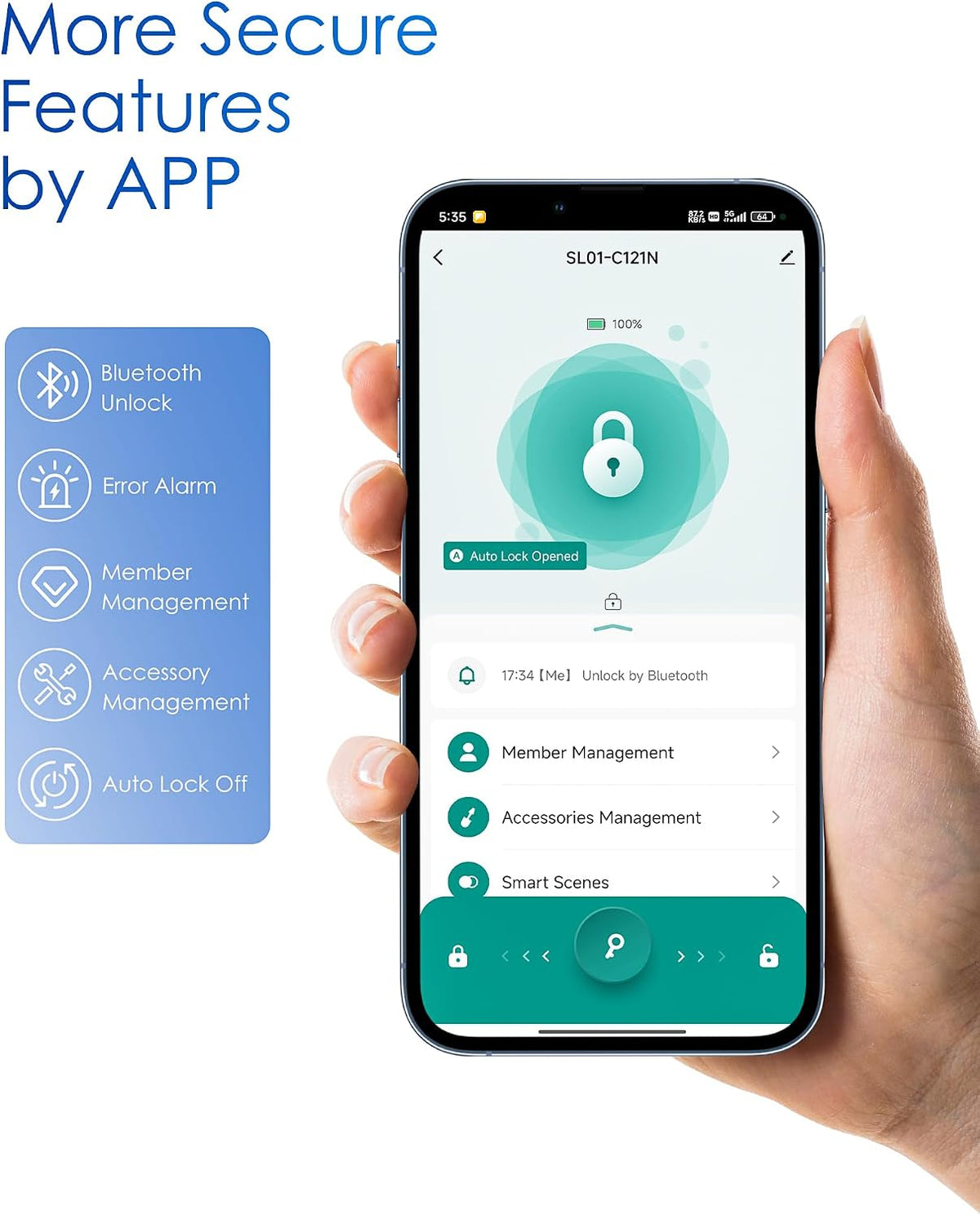

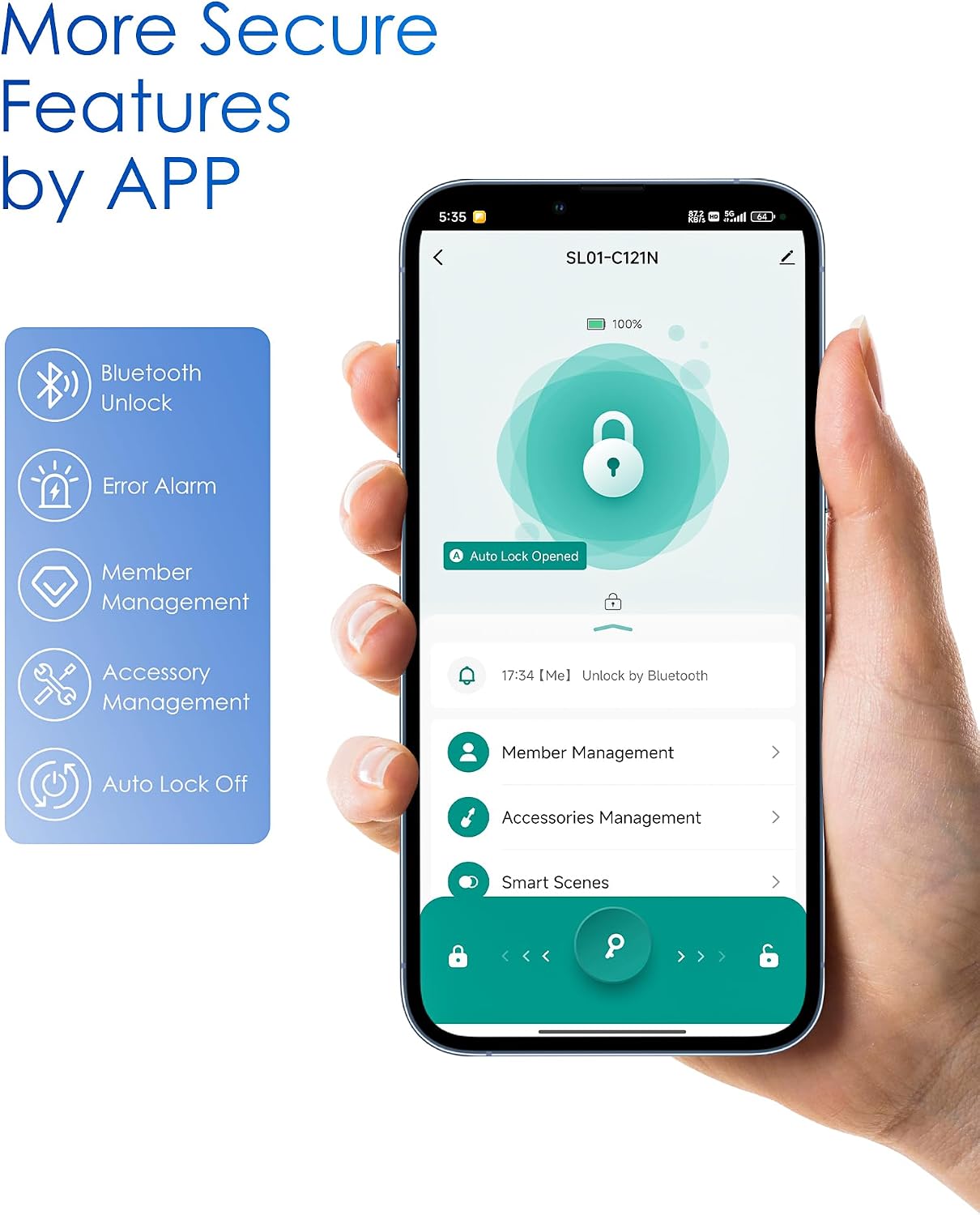

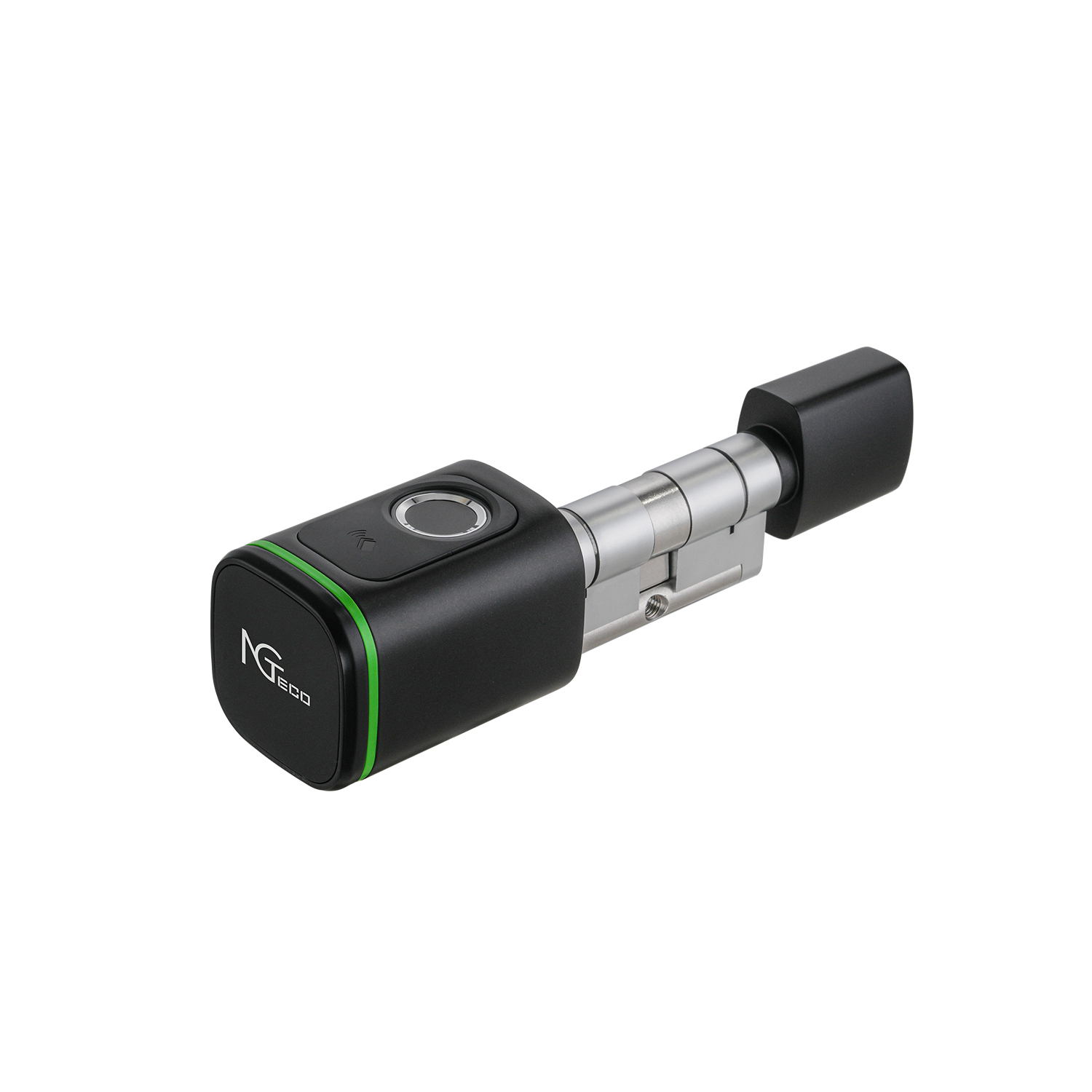

The NGTeco SL01-C121N is a retrofit smart electronic cylinder designed to upgrade a compatible European-standard mechanical lock with fingerprint, IC-card, smartphone-app and mechanical-key access. It uses Bluetooth 5.0 with the NGTeco Home app and supports up to 100 registered fingerprints and 100 IC cards.

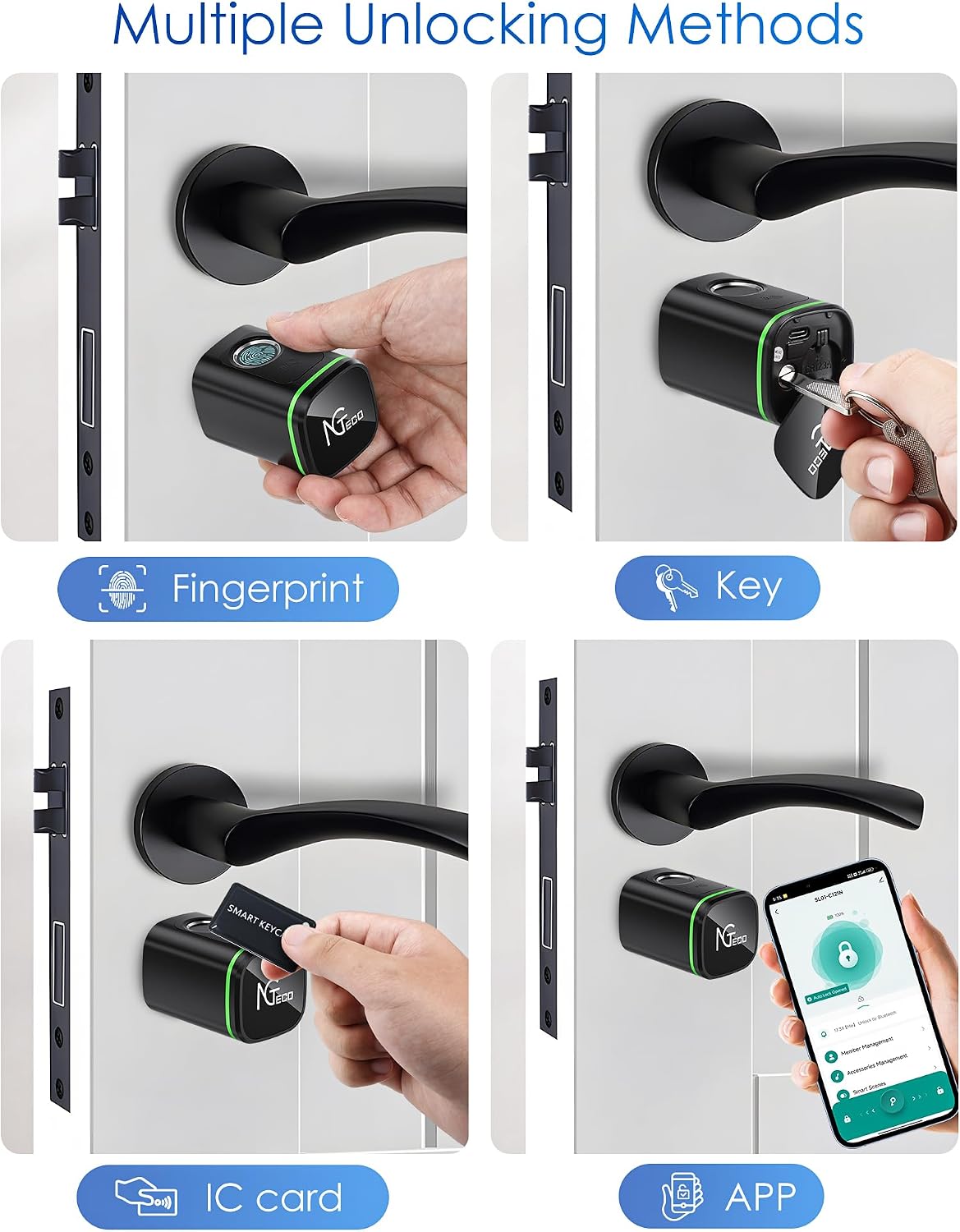

- Fingerprint, IC card, NGTeco Home app and mechanical-key unlocking
- Capacitive fingerprint sensor with fast biometric verification
- Bluetooth 5.0 mobile connectivity
- Supports up to 100 fingerprints and 100 IC cards
- 13.56MHz IC-card reader with NFC support
- Adjustable cylinder system for compatible doors approximately 30–90mm thick using the supplied extension kits
- Emergency 5V USB Type-C power input
- Auto-lock, passage mode, low-battery warning and access-record functions
- Optional SLG200 Bluetooth Gateway required for remote Wi-Fi control
- Requires 1 x CR123A battery (not included)
Important: This product replaces the cylinder in a compatible existing lock. The mortise lock itself is not included.
WHAT'S IN THE BOX
- 1 x NGTeco SL01-C121N Smart Cylinder
- 2 x Mechanical Keys
- 2 x IC Cards
- 1 x Reset Card
- 1 x Tools Kit
- 1 x Accessory Kit A
- 1 x Accessory Kit B
- 1 x Accessory Kit C
- 1 x Installation Guide
- 1 x User Manual
