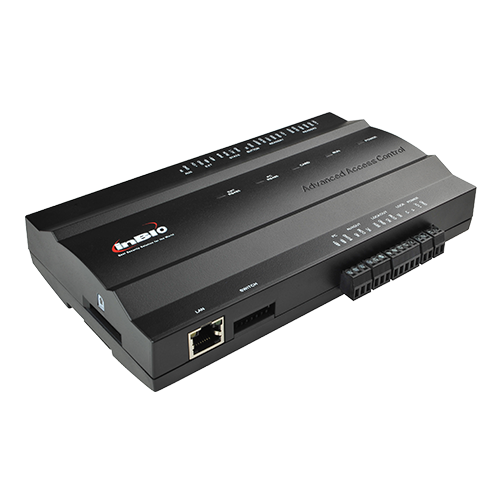

The ZKTeco inBio160 is a networked one-door biometric access controller designed for installations using compatible fingerprint and RFID readers. It combines TCP/IP networking, RS485 biometric-reader connectivity and Wiegand reader support in a compact control board.
Key Features
- Controls 1 door
- Supports up to 4 readers: 2 x RS485 and 2 x 26-bit Wiegand
- Compatible with supported ZKTeco FR-series fingerprint readers
- Capacity for up to 30,000 card users
- Capacity for up to 3,000 fingerprint templates
- Stores up to 100,000 transactions / events
- TCP/IP and RS485 communication
- Anti-passback support
- First-card opening and multi-card opening functions
- Auxiliary input/output linkage
Technical Specifications
-
Model: inBio160
-
Door Capacity: 1
-
Reader Inputs: 2 x RS485 + 2 x Wiegand
-
Card Capacity: 30,000
-
Fingerprint Capacity: 3,000
-
Event Capacity: 100,000
-
Communication: TCP/IP and RS485
-
Power: approximately 9.6-14.4V DC
-
Operating Temperature: approximately 0°C to 45°C
-
Operating Humidity: approximately 20%-80%
-
Controller Board Size: approximately 183 x 106mm
What's in the Box

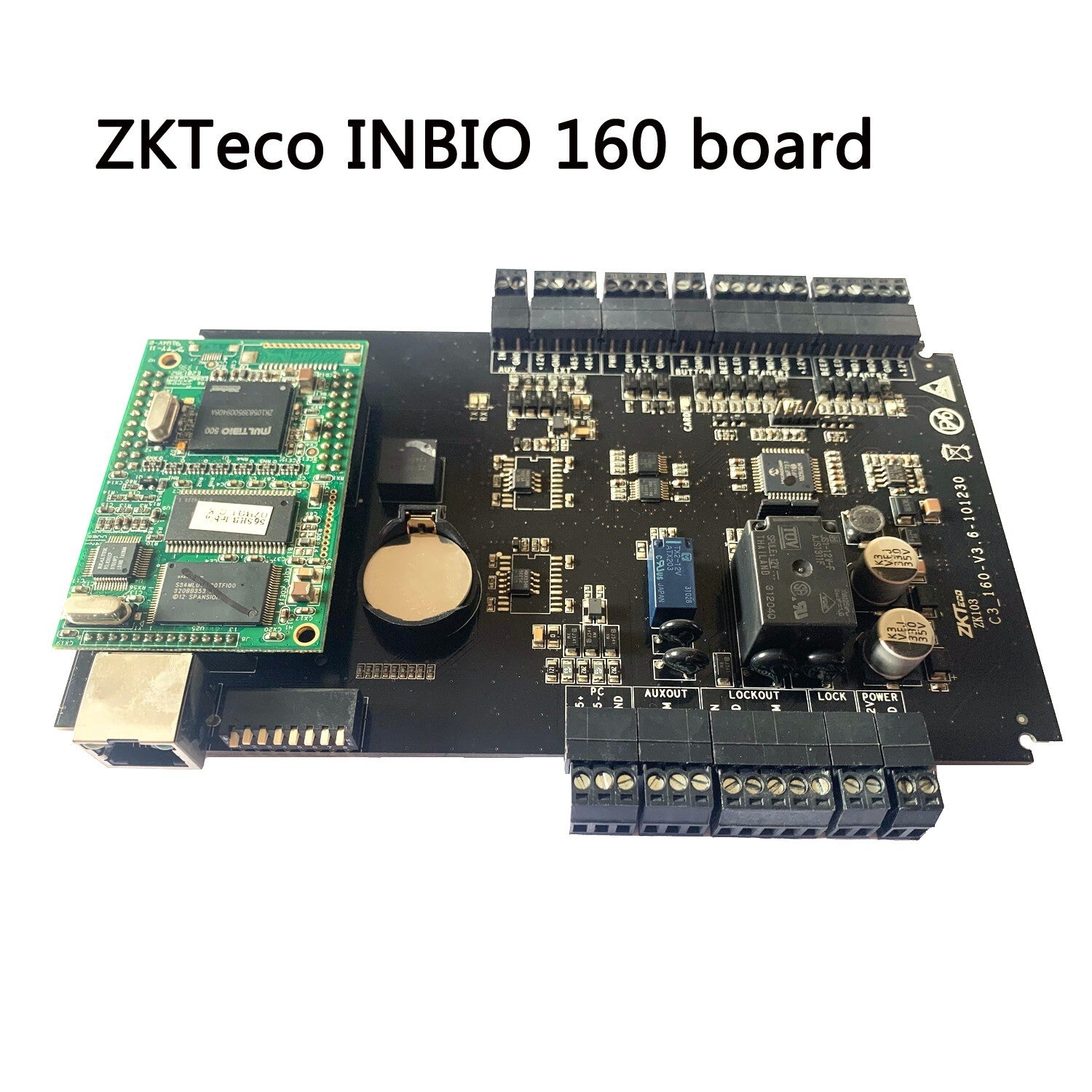

- 1 x ZKTeco inBio160 One-Door Biometric Access Controller Board
Package note: ZKTeco also supplies enclosure / power-supply packages based on the inBio160. This listing is for the controller unless the physical stock packaging states otherwise.
