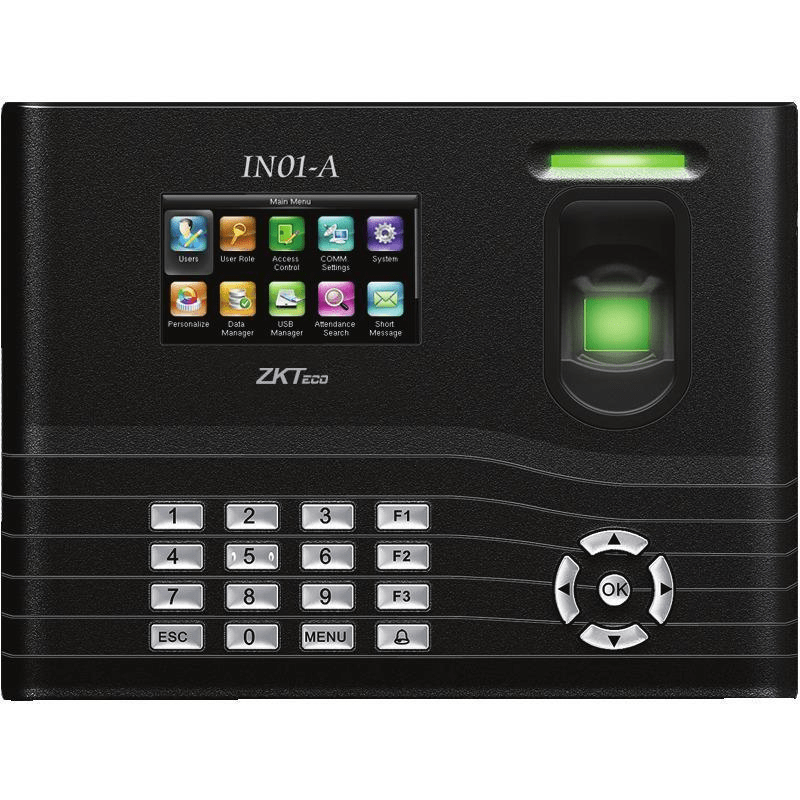

ZKTeco IN01-AW biometric time-attendance and access-control terminal with fingerprint, PIN and optional RFID authentication, plus Wi-Fi connectivity and a built-in backup battery. The terminal combines a colour display, keypad and ZKTeco optical fingerprint sensor for standalone or networked installations.
Key Features
- Fingerprint and PIN authentication
- Optional RFID card support
- Built-in Wi-Fi
- Built-in 2000mAh backup battery
- 3-inch TFT colour display
- Fast fingerprint verification
- TCP/IP, RS232/485 and USB communication
- Wiegand input and output
- Access-control interfaces for electric lock, door sensor, exit button, alarm and doorbell
- ADMS and web-server support on compatible firmware
- Suitable for time-attendance and access-control applications
Specifications
-
Brand: ZKTeco
-
Model: IN01-AW / IN01-A Wi-Fi variant
-
Fingerprint Capacity: Up to 3,000
-
Card Capacity: Up to 10,000 optional cards
-
Transaction Capacity: Up to 100,000 records
-
Display: 3-inch TFT
-
Authentication: Fingerprint / PIN / RFID where card reader is fitted
-
Communication: TCP/IP, Wi-Fi, RS232/485, USB Host / Client
-
Backup Battery: Built-in 2000mAh
-
Power: 12V DC
-
Operating Temperature: 0°C to 45°C
-
Operating Humidity: 20–80%
-
Dimensions: Approx. 222 × 160 × 48mm
What's in the Box
- 1 × ZKTeco IN01-AW Terminal
- 1 × Back Plate
- 1 × Power Adapter
- Mounting hardware and connection leads as supplied
