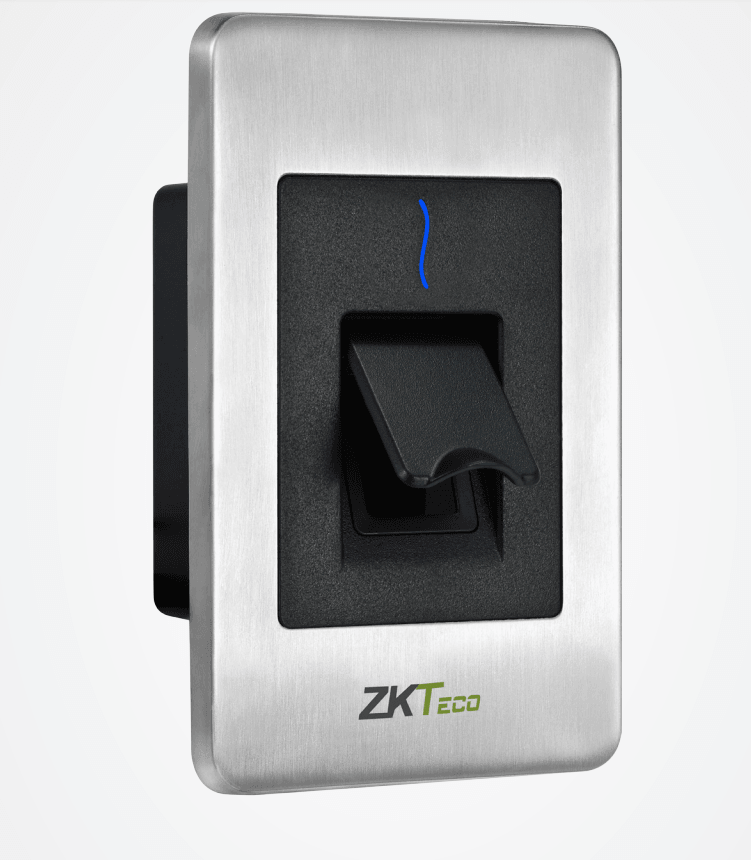

ZKTECO FR1500 FINGERPRINT READER

ZKTECO FR1500 FINGERPRINT READER

The ZKTECO FR1500 FINGERPRINT READER features a Flush-Mounted Design for a tidy installation and a Single gang Standard junction box for easy setup. Its RS-485 Communication Interface provides seamless data transfer, while the BioID Fingerprint Sensor and optional SilkID Fingerprint Sensor ensure accurate and secure identification.

The fingerprint reader also boasts a Stainless Steel Front casing and a Fingerprint Protective Cover for durability and protection, making it suitable for both indoor and outdoor use with an IP65 waterproof rating.

SPECS:

Additional Info
Working Temperature: -10 °C ~ 45 °C
Working Humidity: 20 ~ 95%
Dimensions(LxWxH): 121.3 × 77.3 × 38 mm
Algorithm: ZKFinger v10.0

Power Supply
Operating Voltage 12V DC
Stand-by Mode Power Consumption:12V*60mA=0.72W
Peak Current of Fingerprint scanning:140mA

Hardware
1.0 GHz CPU
ZKBioID Sensor
Buzzer Prompt
Three-color Indicator Light

Compatibility
inBio/inBioPro Controllers
Standalone Fingerprint Devices

Standard Features
125KHz RFID Card

Communication
RS485

OPTIONAL FEATURES:
125KHz HID Prox Card
13.56MHz Mifare Card (S50 / S70)
13.56MHz HID Iclass Card
