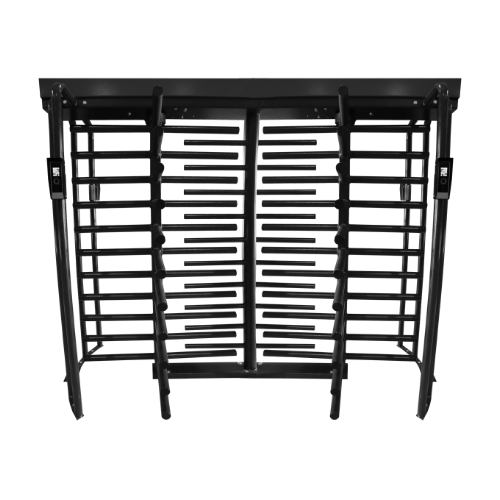

The ZKTeco FHTSA2400 D is an extra heavy-duty full-height double-lane four-arm turnstile built for controlled pedestrian access in high-traffic and high-security environments. It is locally manufactured in South Africa and designed for industrial facilities, corporate and government security, and public-transport applications.
Key Features
- Extra heavy-duty full-height construction
- Double-lane configuration
- Four-arm rotor design at 90°
- Bi-directional pedestrian flow
- Integrated driver control board and power supply
- Supports emergency mode
- Indoor and outdoor operation
- IP65 ingress-protection rating
- High-security pedestrian access application
Technical Specifications
-
Power: 220V AC, 50/60Hz
-
Cabinet: Mild steel, powder-coated charcoal grey
-
Optional Material: Stainless steel
-
Lane Width: 500mm per lane
-
Flow: Bi-directional
-
Working Temperature: -20°C to +45°C
-
Working Humidity: 0-85%
-
Throughput: approximately 50-150 persons per 10 minutes
-
MCBF: 1,000,000 cycles
-
Net Weight: approximately 400kg
-
Footprint: approximately 2155 x 1200mm
-
Overall Dimensions: approximately 2155 x 1200 x 2181mm
What's in the Box
- 1 x ZKTeco FHTSA2400 D Double-Lane Full-Height Turnstile Assembly
- Integrated Driver Control Board
- Integrated Power Supply
Installation note: Access readers, biometric terminals, cabling, civil works and installation services are not included unless explicitly stated.
