ZKTeco FHT2422 Full-Height Turnstile with Fingerprint & RFID Access Control

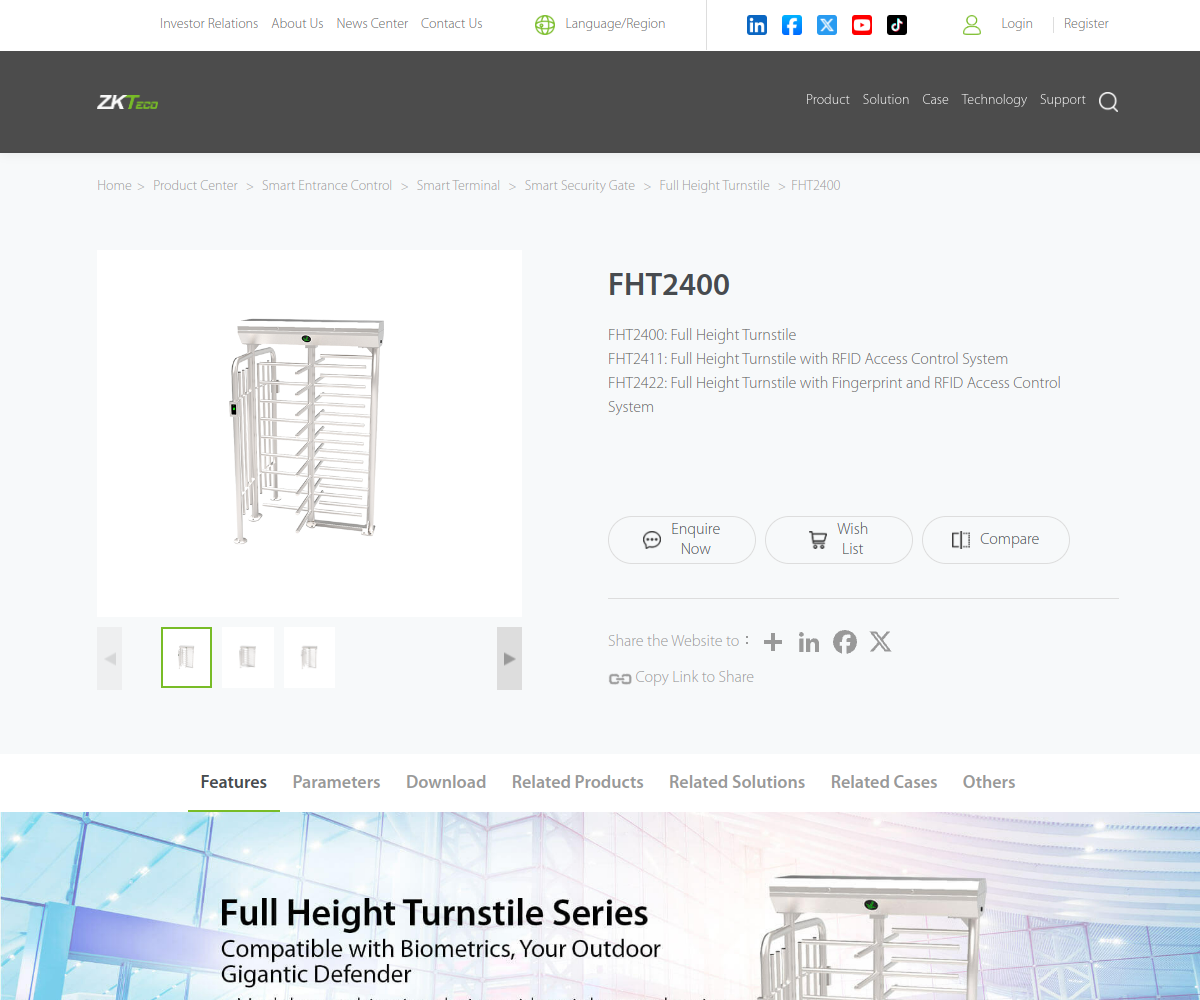

The ZKTeco FHT2422 is the biometric version of the FHT2400 full-height turnstile series, combining a heavy-duty full-height rotating barrier with integrated fingerprint and RFID access control. It is designed for high-security pedestrian entrances in industrial sites, campuses, warehouses, critical infrastructure and controlled outdoor access points.
Key Features
- Full-height rotating pedestrian turnstile
- Integrated fingerprint and RFID access-control configuration
- SUS304 stainless-steel cabinet and barrier structure
- Indoor and outdoor operation
- LED status indicator
- Emergency mode support
- High-security access-control design
- Rated MCBF of approximately 1 million cycles

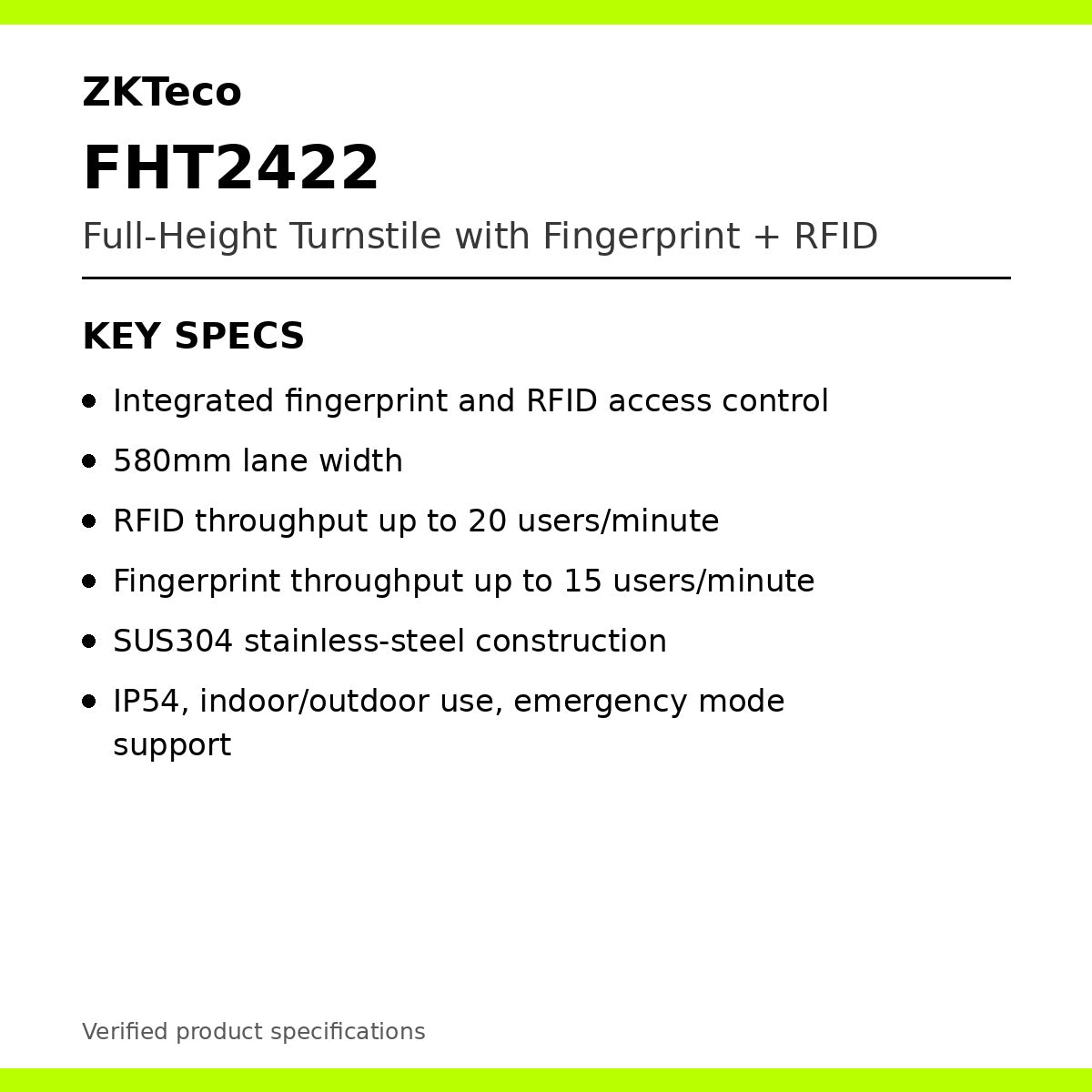

Technical Specifications
-
Model: FHT2422
-
Power: AC 110 / 220V, 50 / 60Hz
-
Lane Width: Approx. 580mm
-
RFID Throughput: Up to 20 users/minute
-
Fingerprint Throughput: Up to 15 users/minute
-
Dimensions: Approx. 1400 × 1320 × 2220mm
-
Net Weight: Approx. 230kg
-
Operating Temperature: Approx. -28°C to 60°C
-
Working Humidity: Approx. 25%–75%
-
Ingress Protection: IP54
What's in the Box
- 1 × ZKTeco FHT2422 full-height turnstile system with fingerprint and RFID configuration as supplied
Installation, cabling, controller integration, foundations and site-specific access-control accessories should be confirmed during system design.
