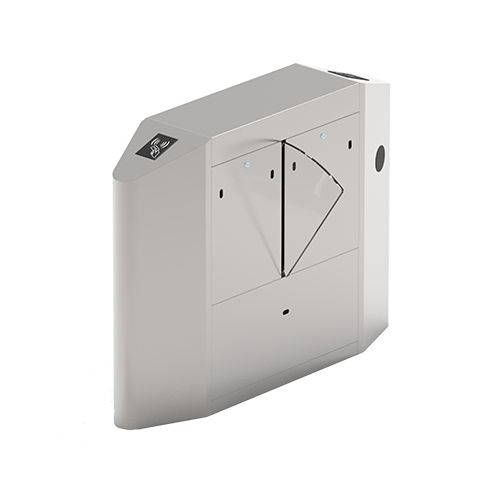

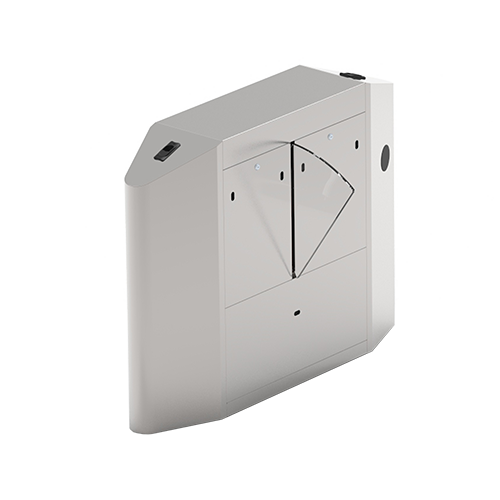

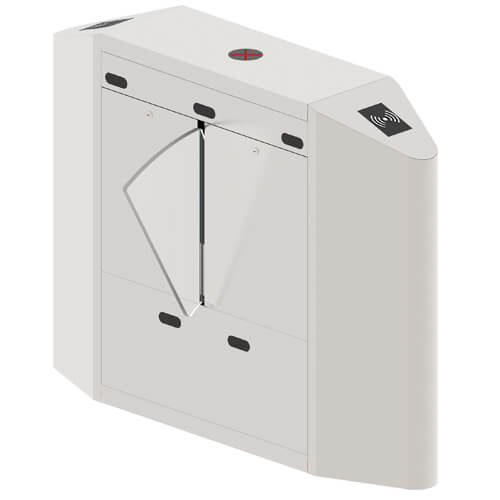

The ZKTeco FBL4222 Pro is a flap barrier turnstile for an additional lane with integrated fingerprint and RFID access control. It is designed for controlled pedestrian access in high-traffic environments and forms part of the FBL4200 Pro series, which can be paired with the FBL4000 Pro series for multi-lane installations.
Key Features
- Integrated fingerprint and RFID reader configuration
- Integrated access controller
- SUS304 stainless-steel cabinet and lid
- Retracting acrylic barrier
- LED status indication
- Smooth, low-power operation
- Emergency retract function
- Suitable for indoor use and sheltered outdoor installations
- Approx. 600 mm standard lane width
- RFID throughput up to 30 users per minute
- Fingerprint throughput up to 25 users per minute
Specifications
- Power: AC 100-120V / 200-240V, 50/60Hz
- Operating temperature: -28°C to 60°C
- Operating humidity: 5% to 80%
- Dimensions: approx. 1350 x 300 x 1010 mm
- Cabinet material: SUS304 stainless steel
- Barrier material: Acrylic
- Barrier movement: Retracting
- Security level: Medium
What's in the Box
- 1 x ZKTeco FBL4222 Pro flap barrier turnstile for additional lane
- Integrated controller, fingerprint readers and RFID reader hardware
Note: This is an additional-lane unit in the FBL4200 Pro series and should be matched to the intended entrance-control layout before installation.
