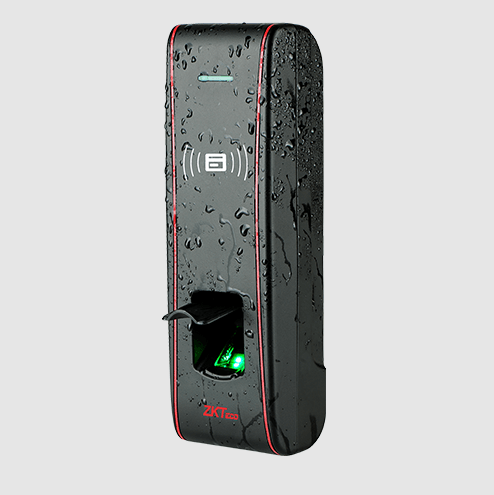

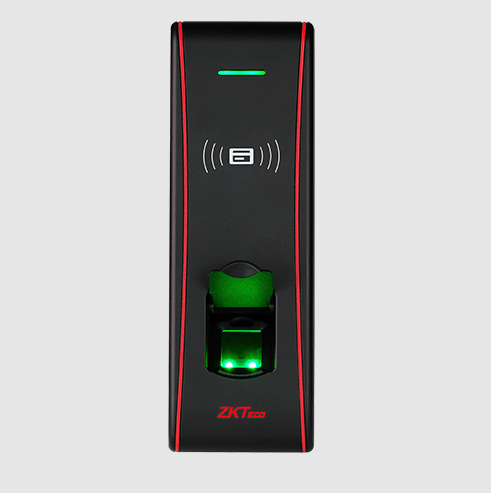

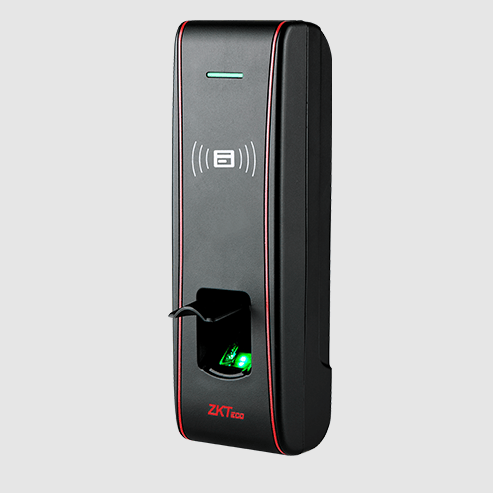

ZKTECO F16 FINGERPRINT READER - IP65

ZKTECO F16 FINGERPRINT READER - IP65

The F16 is not just a simple fingerprint reader, but a powerful access control terminal with an integrated proximity reader (EM). Its IP65 rating ensures resistance to water, dust, and other external damages, making it suitable for installation on your network. With Ethernet and RS485 serial ports, it is easy to set up and configure.

Additionally, the Weigand-OUT port allows for seamless integration with ZK or any third-party access control panel, while the Weigand-In port enables authentication at both entrances and exits by connecting to any card reader.

Thanks to its standard configurations, including the PULL firmware and ZKAccess3.5 software, the F16 is highly versatile and can be managed through a Management Card or connected to the ZKAccess3.5 software via TCP/IP. Choose the F16 and experience the power and versatility for yourself!

FEATURES:

SPECS:

• Fingerprint Sensor: ZK Optical Sensor
• Algorithm Version: ZKFinger V10.0
• Communication: TCP/IP, RS485
• Fingerprint Capacity: 3,000 Fingerprints
• Card Capacity: 30,000 Cards
• Log Capacity: 100,000 Transactions
• RF Card EM(standard)/Mifare(optional)
• Authentication: Finger/Card
• Wiegand Signal: Wiegand input & output
• Ingress Protection: Rate IP65
• Operating Voltage: 12VDC 3A
• Operating Temperature: 0~ 45 °C (32°F ~ 113°F)
• Dimension: 62.5mm×185mm×41.5mm (W×H×D)
