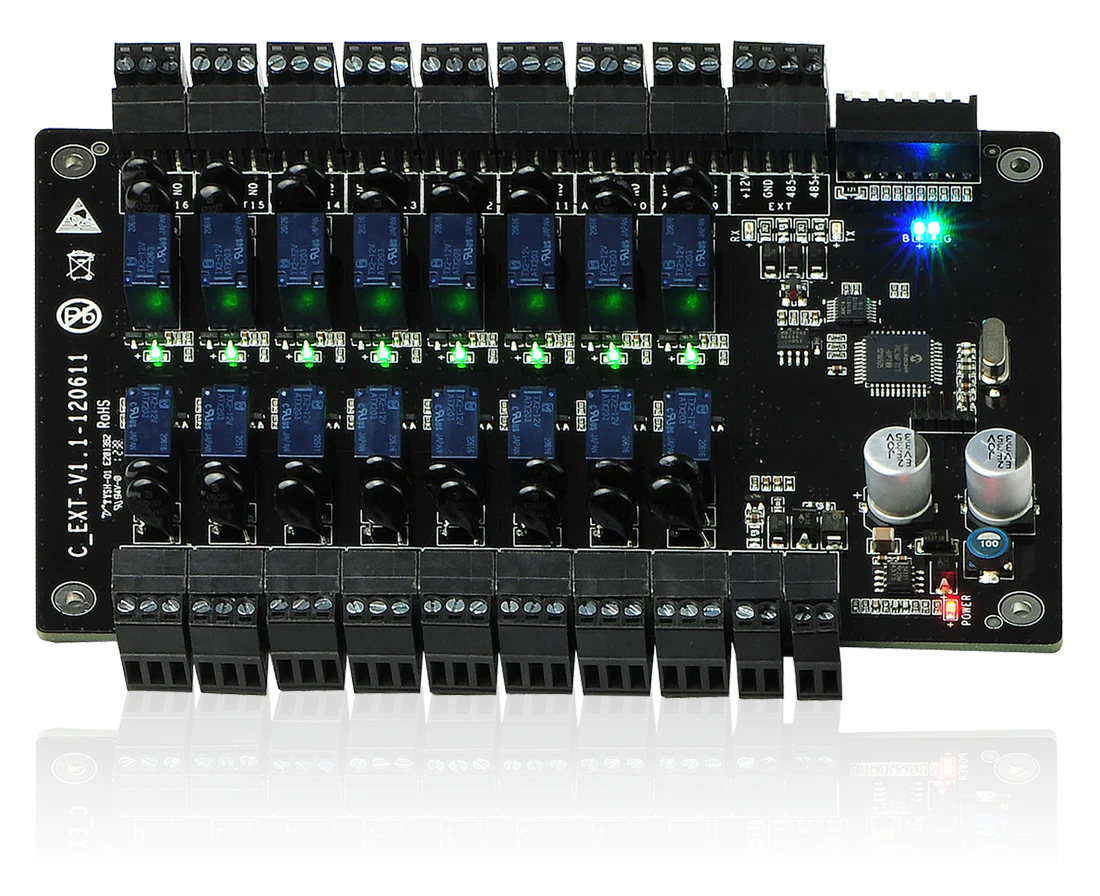

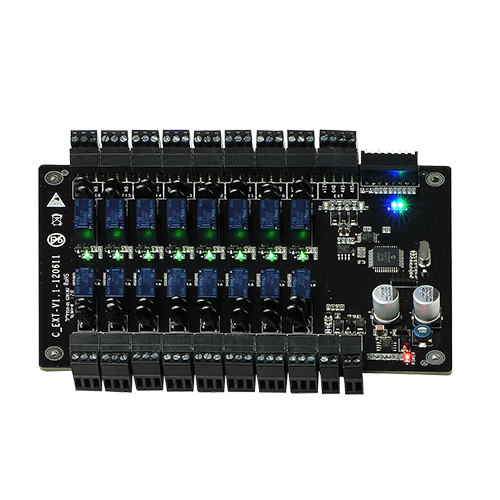

ZKTeco EX16 Elevator Extension Board
The ZKTeco EX16 is an elevator-control expansion board for compatible ZKTeco EC10 installations. Each EX16 adds control for up to 16 additional floors, allowing the elevator access system to scale with larger buildings.
Key Features
- Adds control for up to 16 floors
- Designed for use with the ZKTeco EC10 elevator controller
- Up to 3 EX16 boards can be connected to one EC10 system
- RS-485 communication with the main controller
- Individual relay outputs with status indication
Technical Specifications
- Power: 12 V DC, approximately 1 A
- Dimensions: approximately 160 x 106 mm
- Net weight: approximately 0.2 kg
What's in the Box
- 1 x ZKTeco EX16 elevator extension board
Final floor capacity depends on the EC10 system configuration and installed expansion boards.
