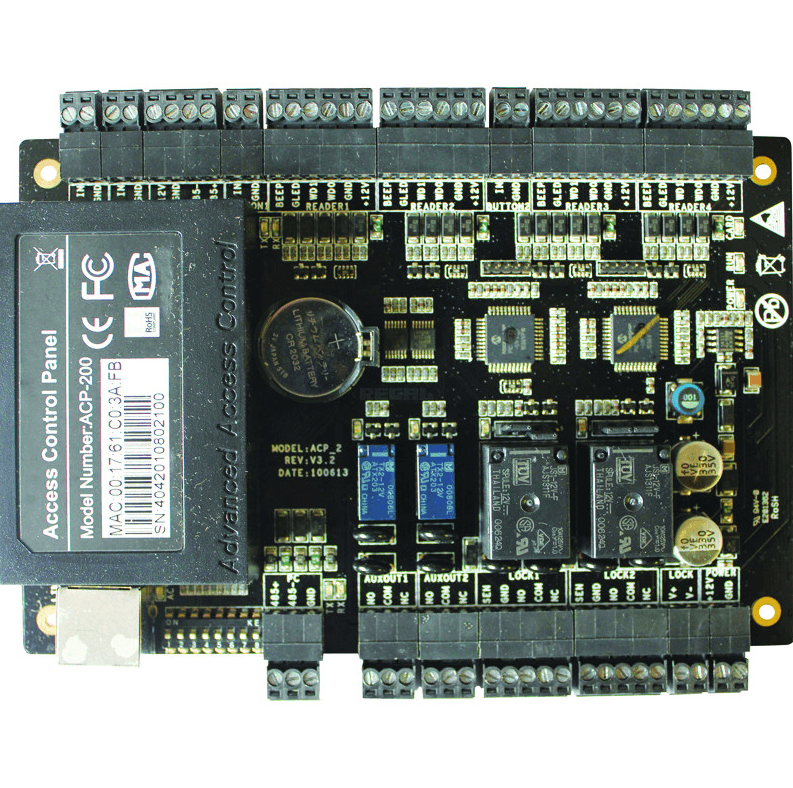

ZKTECO C3-200 RFID 2 DOOR CONTROLLER
- Type: AUTOMATION
- SKU: 10960
ZKTECO C3-200 RFID 2 DOOR CONTROLLER
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
ZKTECO C3-200 RFID 2 DOOR CONTROLLER
The advanced technology of the ZKTECO C3-200 RFID 2 DOOR CONTROLLER enables seamless communication through TCP/IP, RS485, and SD Software. This industry-leading controller features 4 x Wiegand inputs, 2 x Door Sensor inputs, 2 x RTE inputs, and 2 x Door Relay outputs, as well as 2 x Auxiliary I/O inputs and 2 x Auxiliary I/O outputs. With a capacity of up to 30,000 cards and 100,000 transactions, it offers both PIN and RFID authentication, making it a powerful and efficient solution. Discover the unparalleled capabilities of ZKAccess 3.5 with this top-of-the-line RFID controller.
FEATURES:
SPECS:
|
Number of Doors Controlled |
2 Door |
|
Number of Readers Supported |
4 |
|
Types of Readers Supported |
26-bit Wiegand, others upon request |
|
Number of Inputs |
6 (2 Exit Device, 2 Door Status, 2 AUX) |
|
Number of Outputs |
4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) |
|
Card Holders Capacity |
30,000 |
|
Log Events Capacity |
100,000 |
|
Weight |
7.5lbs (3.4kg) |
|
Communication |
TCP/IP and RS-485 |
|
Enclosure |
Powder Coated Aluminum |
|
Mounting |
Wall Mount |
|
Recommended Power Supply |
12V DC, 1.5A |
|
Dimensions (Bundle Only |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
|
Dimensions ( Board Only) |
6.3in.×4.17in. (160mm×106mm) |
ZKTECO C3-200 RFID 2 DOOR CONTROLLER
The advanced technology of the ZKTECO C3-200 RFID 2 DOOR CONTROLLER enables seamless communication through TCP/IP, RS485, and SD Software. This industry-leading controller features 4 x Wiegand inputs, 2 x Door Sensor inputs, 2 x RTE inputs, and 2 x Door Relay outputs, as well as 2 x Auxiliary I/O inputs and 2 x Auxiliary I/O outputs. With a capacity of up to 30,000 cards and 100,000 transactions, it offers both PIN and RFID authentication, making it a powerful and efficient solution. Discover the unparalleled capabilities of ZKAccess 3.5 with this top-of-the-line RFID controller.
FEATURES:
SPECS:
|
Number of Doors Controlled |
2 Door |
|
Number of Readers Supported |
4 |
|
Types of Readers Supported |
26-bit Wiegand, others upon request |
|
Number of Inputs |
6 (2 Exit Device, 2 Door Status, 2 AUX) |
|
Number of Outputs |
4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) |
|
Card Holders Capacity |
30,000 |
|
Log Events Capacity |
100,000 |
|
Weight |
7.5lbs (3.4kg) |
|
Communication |
TCP/IP and RS-485 |
|
Enclosure |
Powder Coated Aluminum |
|
Mounting |
Wall Mount |
|
Recommended Power Supply |
12V DC, 1.5A |
|
Dimensions (Bundle Only |
15in.×3.15in.×11in. 380mm(L)×80mm(W)×280mm(H) |
|
Dimensions ( Board Only) |
6.3in.×4.17in. (160mm×106mm) |
