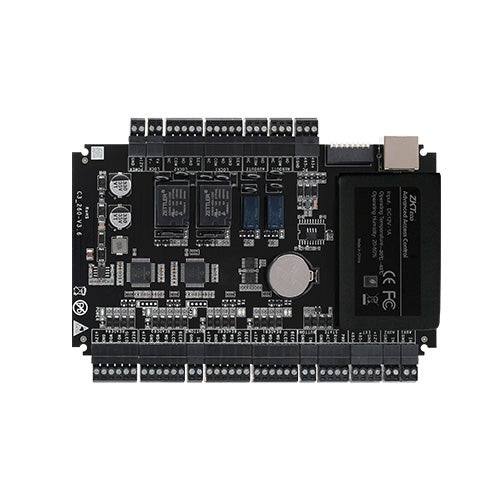

The ZKTeco C3-200 Plus is an IP-based two-door access-control controller designed for small to medium access-control installations. It supports RFID credentials as well as password and QR-code authentication when used with compatible readers and ZKTeco software.
Key Features
- Controls up to 2 access points / doors
- Supports up to 4 RS-485 readers and 4 Wiegand readers
- Up to 100,000 users and 100,000 cards
- Up to 100,000 static or dynamic QR codes
- Stores up to 500,000 transactions
- TCP/IP, RS-485/OSDP, Wiegand input and USB connectivity
- 2 lock relays, 2 auxiliary outputs, 2 door-sensor inputs, 2 exit-button inputs and 2 alarm inputs
- Supports anti-passback, anti-tailgating, access levels, access groups and linkage functions
- Compatible with ZKBio CVAccess
Specifications
- Model: C3-200 Plus
- Operating system: Linux
- Power supply: 9.6-14.4 V DC
- Board dimensions: approximately 175 x 99 x 19.3 mm
- Operating temperature: 0°C to 45°C
- Operating humidity: 20% to 80% RH, non-condensing
Important: The metal enclosure and power-supply enclosure shown in some gallery images are optional accessories and are not included unless specifically supplied with the unit.
What's in the Box
- 1 x ZKTeco C3-200 Plus two-door access-control controller board
