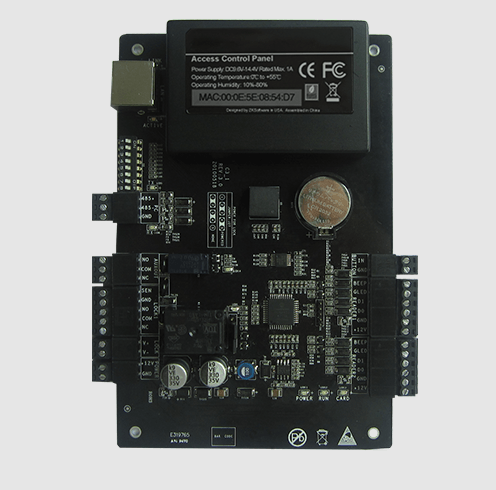

ZKTECO C3-100 RFID 1 DOOR CONTROLLER
ZKTECO C3-100 RFID 1 DOOR CONTROLLER
This product, the ZKTECO C3-100 RFID 1 DOOR CONTROLLER, offers dual authentication with PIN and RFID technology, as well as two Wiegand ports, a Door Sensor input, and an RTE input. Additionally, it has a Door Relay output, Auxiliary I/O output, and supports TCP/IP, RS485, and SD software for seamless communication. With ZKAccess 3.5, it can manage a capacity of 30,000 cards and 100,000 transactions.
FEATURES:
SPECS:
Number of Doors Controlled |
1 Door |
Number of Readers Supported |
2 |
Types of Readers Supported |
26-bit Wiegand, others upon request |
Number of Inputs |
2 (Exit Device and Door Status) |
Number of Outputs |
2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
Card Holders Capacity |
30,000 |
Log Events Capacity |
100,000 |
Weight |
7.4lbs (3.35kg) |
Communication |
TCP/IP and RS-485 |
Enclosure |
Powder Coated Aluminum |
Mounting |
Wall Mount |
Recommended Power Supply |
12V DC, 1.5A |
Dimensions (Bundle Only |
15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
Dimensions ( Board Only) |
6.3in.×4.17in. (160mm×106mm) |
ZKTECO C3-100 RFID 1 DOOR CONTROLLER
This product, the ZKTECO C3-100 RFID 1 DOOR CONTROLLER, offers dual authentication with PIN and RFID technology, as well as two Wiegand ports, a Door Sensor input, and an RTE input. Additionally, it has a Door Relay output, Auxiliary I/O output, and supports TCP/IP, RS485, and SD software for seamless communication. With ZKAccess 3.5, it can manage a capacity of 30,000 cards and 100,000 transactions.
FEATURES:
SPECS:
Number of Doors Controlled |
1 Door |
Number of Readers Supported |
2 |
Types of Readers Supported |
26-bit Wiegand, others upon request |
Number of Inputs |
2 (Exit Device and Door Status) |
Number of Outputs |
2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
Card Holders Capacity |
30,000 |
Log Events Capacity |
100,000 |
Weight |
7.4lbs (3.35kg) |
Communication |
TCP/IP and RS-485 |
Enclosure |
Powder Coated Aluminum |
Mounting |
Wall Mount |
Recommended Power Supply |
12V DC, 1.5A |
Dimensions (Bundle Only |
15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H) |
Dimensions ( Board Only) |
6.3in.×4.17in. (160mm×106mm) |
