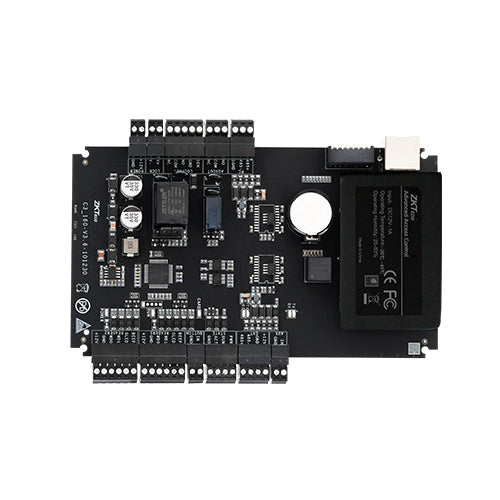

ZKTeco C3-100 Plus One-Door IP Access Controller
The C3-100 Plus is an IP-based access-control panel for a single controlled access point. It supports RFID credentials and dynamic QR-code authentication, with flexible reader connectivity for modern ZKTeco access-control installations.
Key Features
- Controls 1 access point / door
- RFID card and dynamic QR-code authentication
- Linux-based controller platform
- Up to 100,000 multi-tech card users
- Up to 100,000 dynamic QR-code credentials / transactions class
- Up to 500,000 stored access transactions
- 2 × RS-485 reader interfaces supporting ZKTeco RS-485 protocol / OSDP
- 2 × Wiegand reader interfaces
- TCP/IP network communication
- Compatible with ZKBio CVAccess ecosystem
Technical Specifications
-
Model: C3-100 Plus
-
Doors: 1
-
Power Input: approximately 9.6–14.4V DC
-
Inputs: Door status and exit-device inputs
-
Outputs: Lock relay plus auxiliary relay
What's in the Box
- 1 × ZKTeco C3-100 Plus access controller
Readers, enclosure, PSU, lock hardware and credentials are installation-dependent unless specifically included by the supplier.
