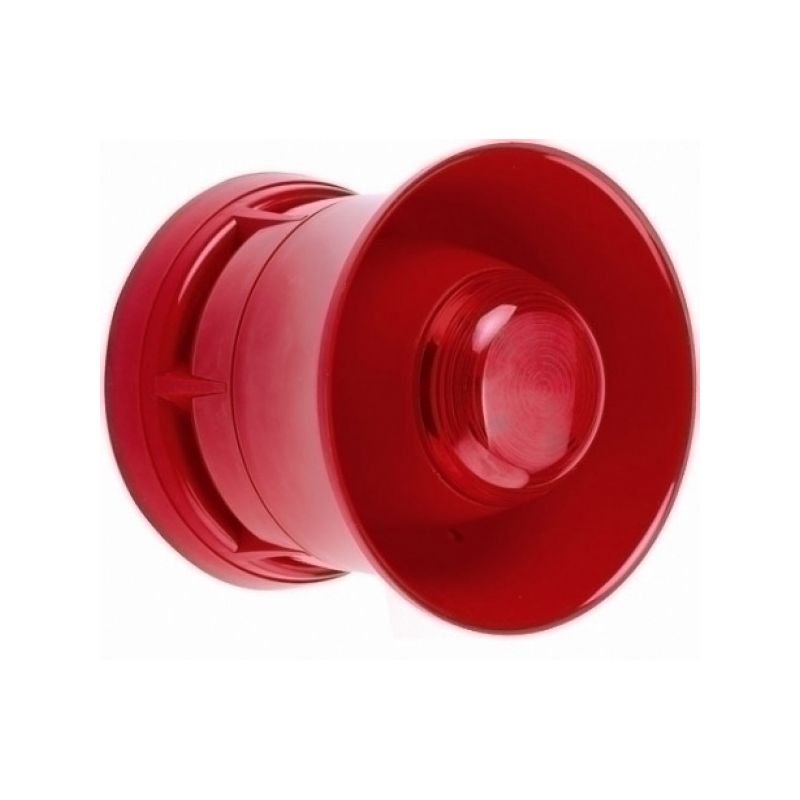

The Ziton ZP755HAV-2R (part number 178001) is a red ZP7-series addressable omnidirectional sounder with an integrated visual indicator, designed for compatible Ziton analogue-addressable fire alarm systems.
Key Features
- Addressable sounder with integrated red LED visual indicator
- Omnidirectional audible warning output
- Designed for Ziton ZP7 / ZP3 compatible addressable systems
- 2-core loop wiring
- 7-way DIP-switch addressing
- User-configurable tone selection
- Automatic sound-output self-test facility
- Loop powered, with provision for compatible external DC supply
- Indoor installation
- EN54-3 / CPR certified sounder
Technical Specifications
-
Model: ZP755HAV-2R
-
Part Number: 178001
-
Colour: Red
-
Loop Voltage: approximately 19.5-20.5V DC
-
External Supply: 18-30V DC where applicable
-
Sound Output: tone dependent, up to approximately 90dB(A) according to the manufacturer datasheet
-
Flash Rate: approximately 0.8Hz
-
Ingress Protection: IP21C
-
Operating Temperature: -10°C to +60°C
-
Dimensions: approximately 127 x 113mm
-
Weight: approximately 305g
What's in the Box
- 1 x Ziton ZP755HAV-2R Addressable Sounder Beacon - Red
Installation note: A compatible SPB-2R first-fix plug-in base is required and may be supplied separately unless specifically included.
