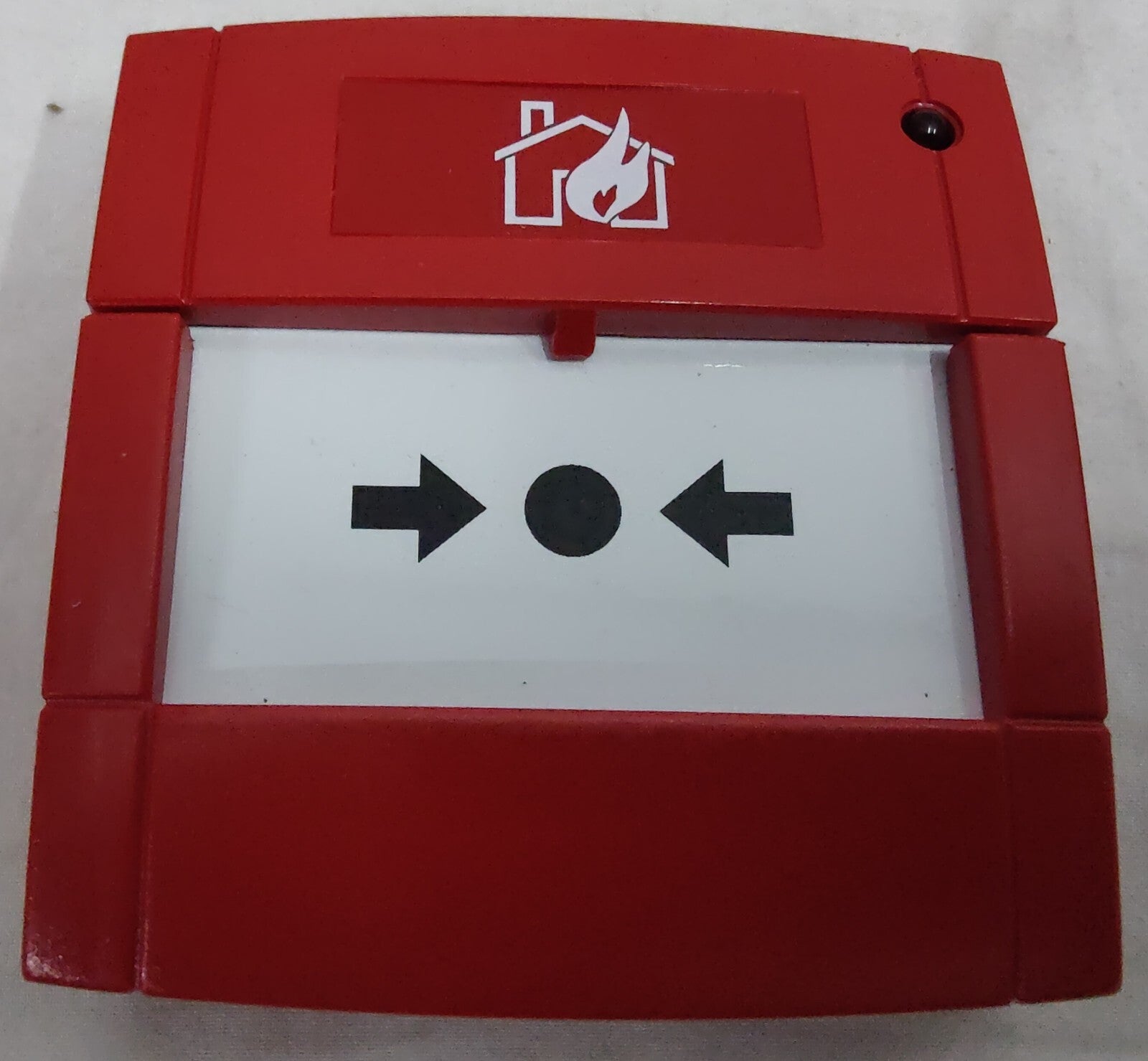

ZITON ZP785-3 RED FLUSH-MOUNT ADDRESSABLE MANUAL CALL POINT
The Ziton ZP785-3 (catalogue reference 172101) is a red, indoor, analogue-addressable manual fire-alarm call point for compatible Ziton ZP2 and ZP3 addressable systems. It supports flush/semi-recessed mounting using a standard single-gang box; a DMN787 surface-mount back box is a separate accessory.
KEY FEATURES
- Genuine Ziton model ZP785-3; manufacturer reference 172101
- Red addressable manual call point with EN54-11 certification
- Frangible glass and resettable operating-element compatibility
- LED indicator for alarm activation

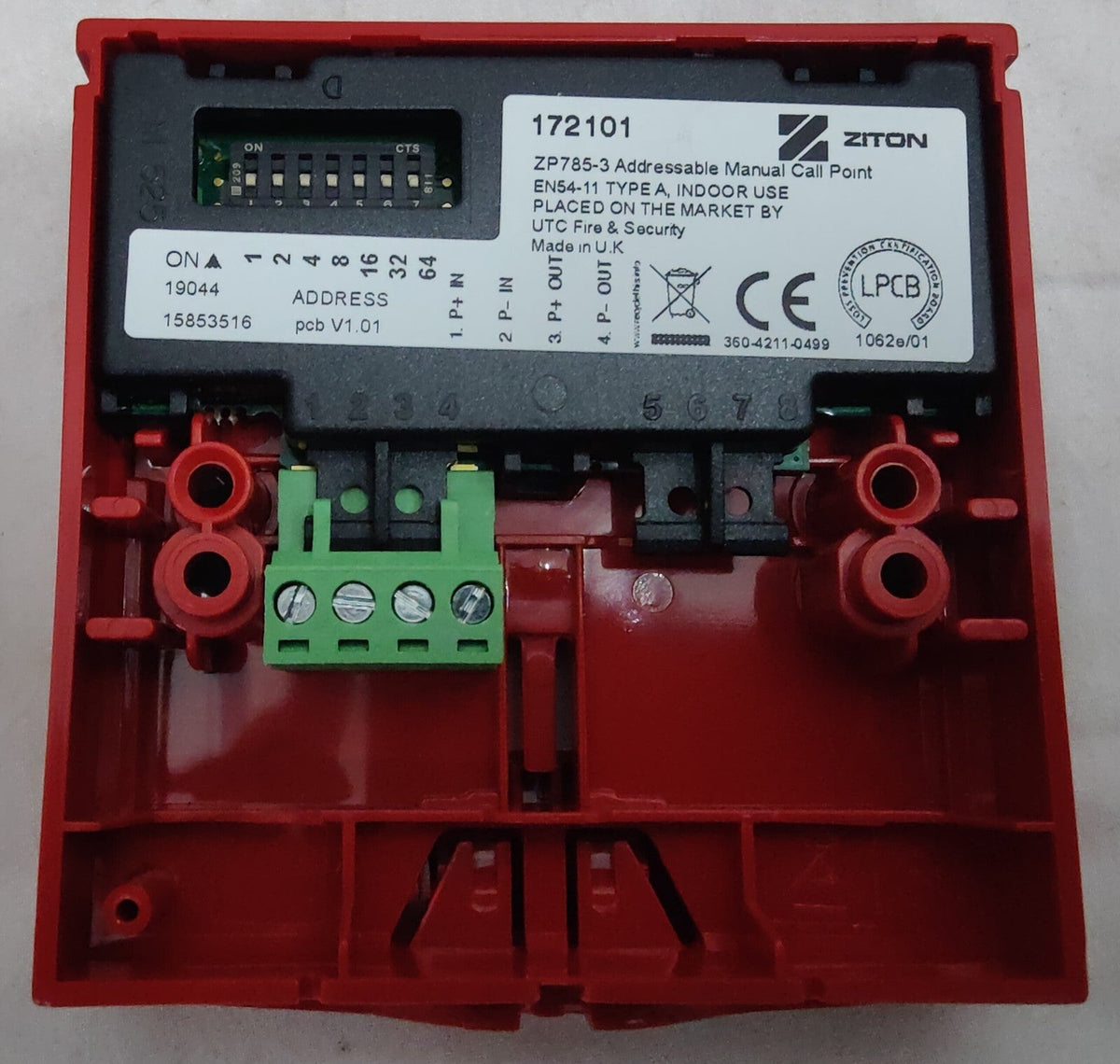

- Plug-in loop connection and 7-way DIP-switch address setting
- Indoor protection rating: IP24D
TECHNICAL SPECIFICATIONS
- Compatible with ZP7 addressable fire systems including ZP2 and ZP3
- Operating voltage: 19.5–20.5 V DC, loop-powered
- Standby current: 400 µA; alarm current: 450 µA
- Dimensions: approximately 93 × 89 × 28 mm (H × W × D)
- Material: moulded ABS; colour: red
- Operating temperature: –10 °C to +55 °C
- Mounting: flush/semi-recessed (surface mounting requires an optional matching back box)
WHAT'S IN THE BOX
- 1 × Ziton ZP785-3 addressable manual call point
- 1 × four-way connector and 1 × test key, according to the manufacturer installation sheet (verify against physical supplier packaging when restocked)
SAFETY: Installation and commissioning must be performed by qualified fire-alarm personnel to applicable standards.
