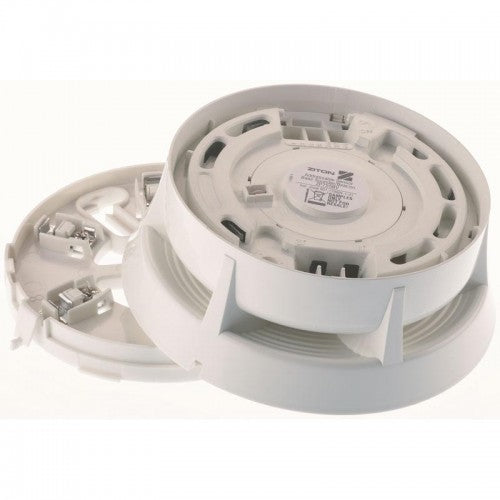

The Ziton ZP755BV-4W is an addressable base sounder/beacon for compatible Ziton ZP-loop fire-alarm systems. It combines an audible sounder, high-intensity visual beacon and detector-base function in a single installation point.
Key Features
- Combined detector base, audible sounder and visual beacon
- Addressable ZP-loop device
- Separate addresses selectable for detector and sounder/beacon functions
- High-efficiency sound-gun transducer
- Continuous, intermittent and two-tone audible outputs
- Sound output up to approximately 90dB(A) at 1m
- Volume can be reduced for lower-noise environments
- Designed to plug directly onto a compatible first-fix base
- Up to 40 units may be supported directly on a compatible loop subject to loop loading
- The ZP755BV-4W variant can use a compatible external power supply where loop length/current requirements demand it
What's in the Box
- 1 x Ziton ZP755BV-4W Addressable Base Sounder Beacon
Compatibility note: Confirm the required first-fix base, panel compatibility and loop-loading requirements before installation.
