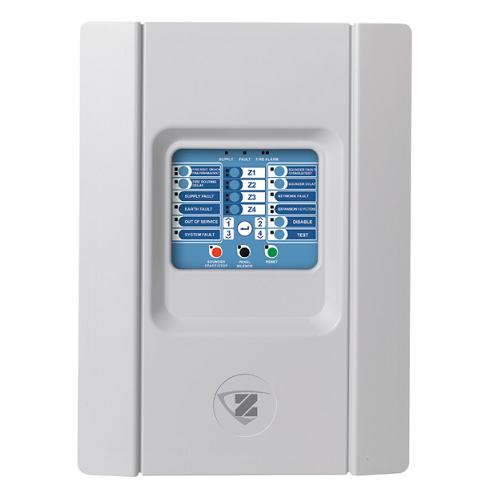

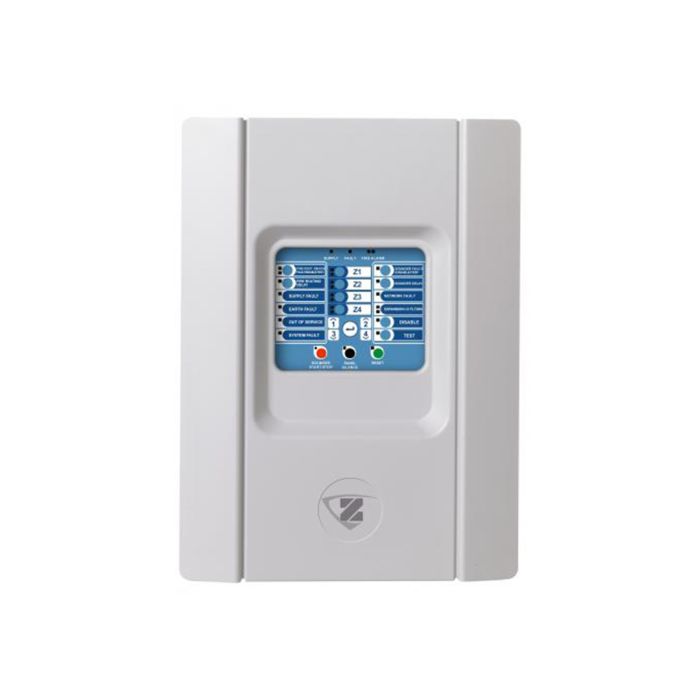

The Ziton ZP1-F4 is a four-zone conventional fire alarm control panel for small to medium fire-detection installations. Each zone supports up to 32 compatible conventional devices, with dedicated supervised alarm/fire-routing outputs, common fire and fault relays, and configurable monitoring inputs.
- 4 conventional fire-detection zones
- Up to 32 compatible devices per zone
- 4 supervised outputs for alarm notification / fire-routing functions
- 2 non-supervised relay outputs for common fire and fault conditions
- 2 user-configurable inputs
- Auxiliary 24V DC supply output with reset support

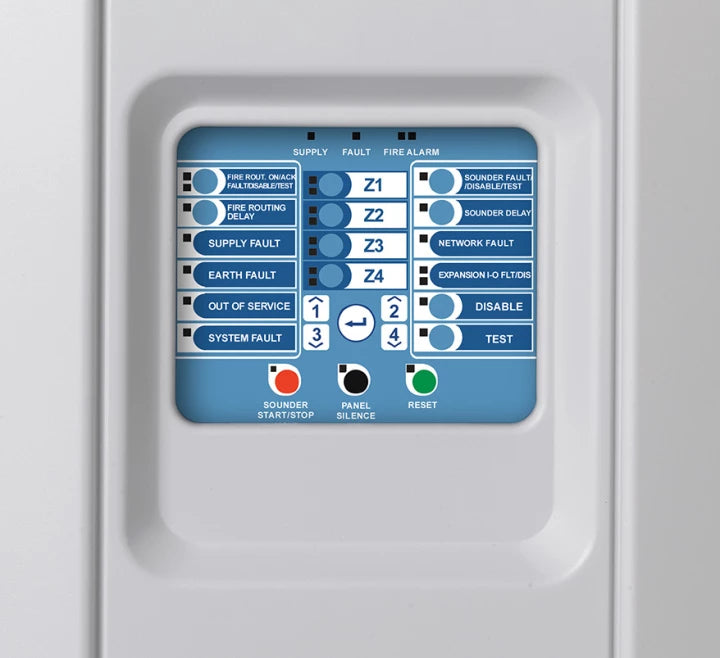

- Day/night, remote reset and sounder-control functions
- Supports compatible auxiliary relay expansion boards
- Designed for 2 x 12V 7.2Ah SLA standby batteries
- Surface-mount enclosure, approximately 320 x 435 x 134mm
- IP30 indoor rating
- EN54-2 and EN54-4 certified product family
Note: This is a conventional ZP1-F4 panel, not an analogue-addressable loop panel. Standby batteries and field devices are not included unless specifically supplied as part of your installation package.
WHAT'S IN THE BOX
- 1 x Ziton ZP1-F4 4-Zone Conventional Fire Alarm Control Panel
- Manufacturer Documentation
