XWAVE2 BX80 WIRELESS OUTDOOR DETECTOR
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
XWAVE2 BX80 WIRELESS OUTDOOR DETECTOR

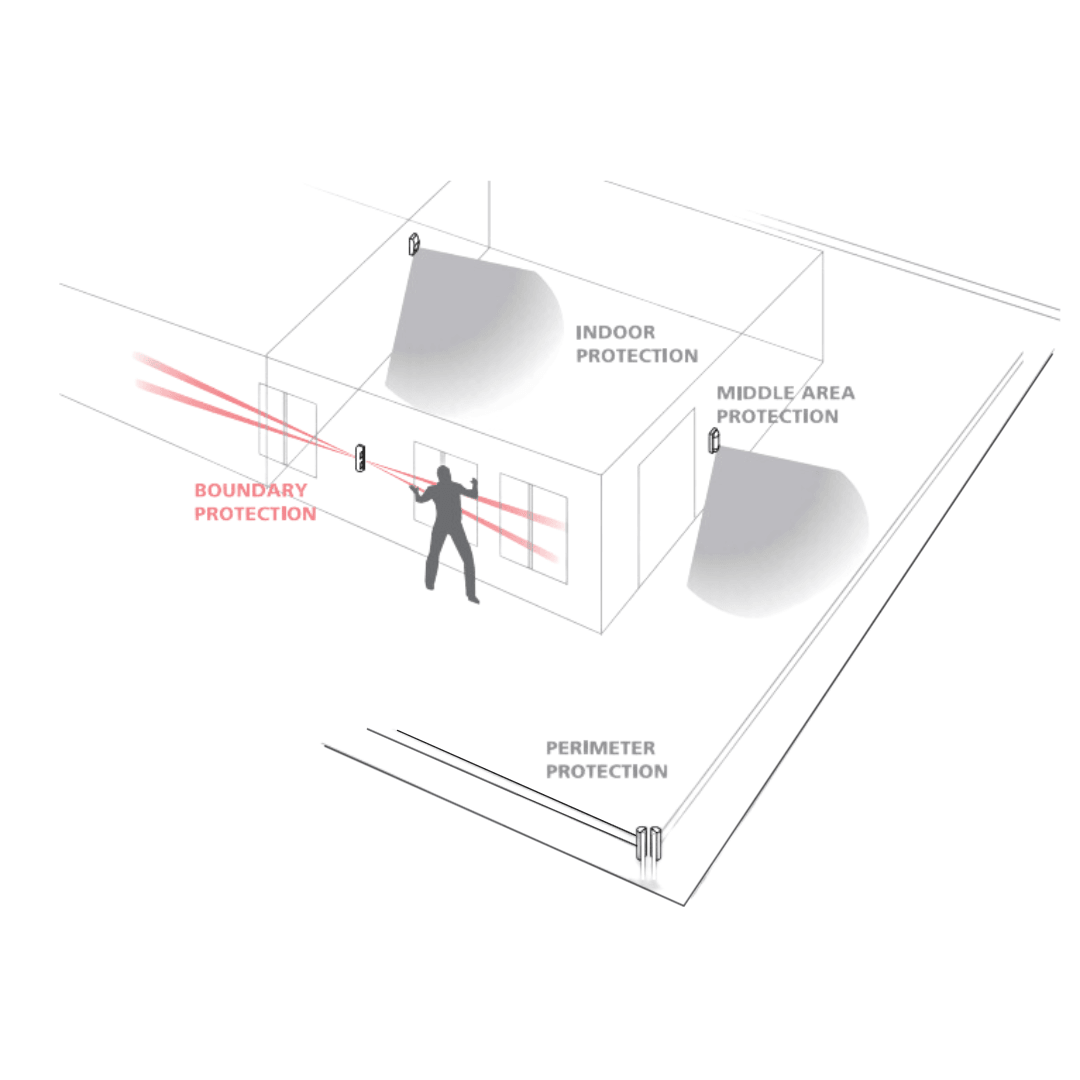

The BX-80NR is a battery-operated outdoor sensor that provides a curtain detection range from 2 to 12m on each side (left and right) which is ideal to protect the immediate boundary of a building. When located on a house or building facade, it will detect people getting right next to the wall or leaning towards the windows making it a perfect early intrusion detection sensor.

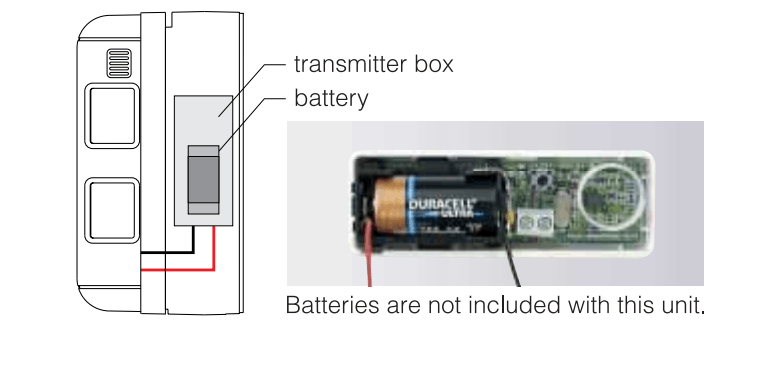

The BX-80R doesn't require any cable or wire at all to be installed. The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The BX-80NR can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.
Animal tolerant and very stable

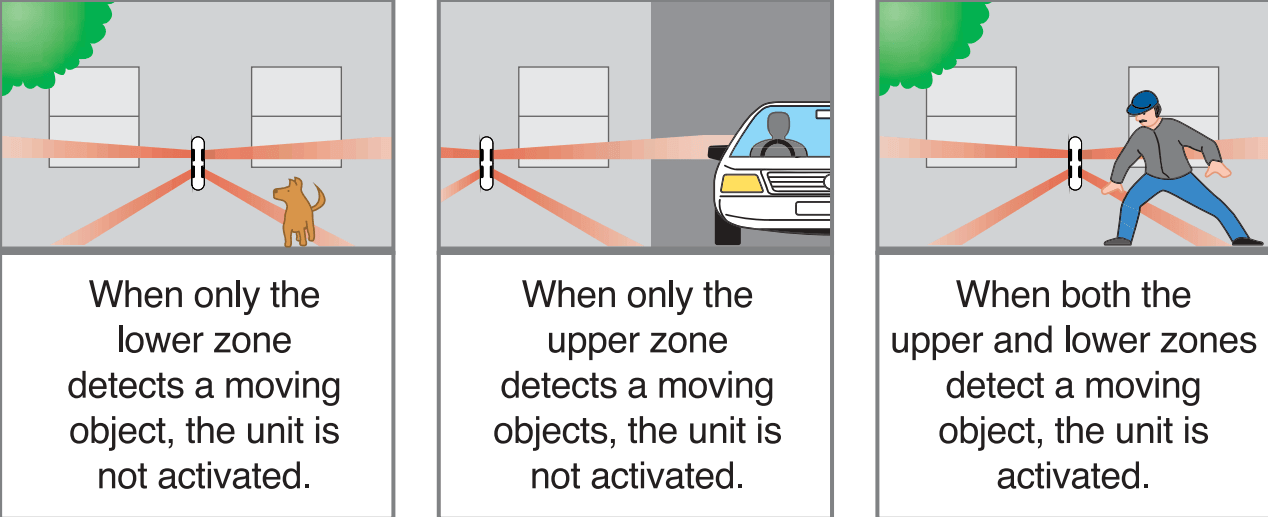

The BX series is very stable to use in outdoor environment with small animal around. The sensor sends infrared beams on each side, both the top and bottom of the sensor. The beams need to detect a presence to trigger so a bird or a cat sitting on the window seal will not set the alarm off. Additionally, the BX-80 has extra features such as double conductive shielding, advanced temperature compensation and size judging function to provide reliable and stable detection.
Robust coverage of entrances on the side of a building

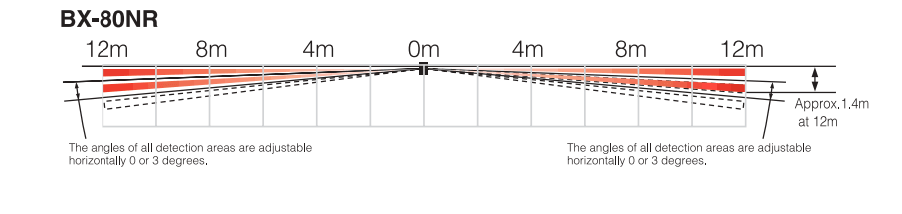

- Outdoor 24m long range PIR - 12m detection areas on both sides of detector.
- Variable detection range from 2-12m on each side.
- Double conductive shielding.
- Advanced PIR technology creates a narrow, long detection area that protects wide horizontal areas.
- Limited detection range function - can be adjusted to avoid detecting unwanted objects.
- Layered detection pattern that discriminates between large and small objects in the detection area.
SPECIFICATIONS:
- Model: BX-80NR (Battery Operator)
- Coverage: 24m (12m on each side)
- Detection Zones: 4 Zones (2 Zones on each side)
- Sensitivity: 2.0° at 0.6m/sec.
- Detectable Speed: 0.3m - 1.5m/s
- Power Supply: 3 - 9VDC Lithium or Alkaline Battery
- Current Consumption: 3mA (Walktest, LED on) - 15uA (Standby)
- Alarm Period: 2 - 1 sec.

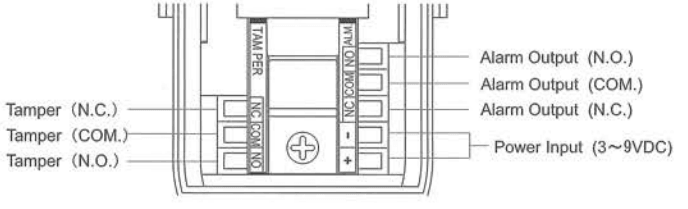

- Alarm Output: Form C-Solid state switch: 10V DC 0.01A (max.)
- Battery Saving Time: Approx. 120sec. or 5sec.
- Tamper Swith: Form C opens when cover removed
- Warm-up Period: Approx. 2min
- LED Indicator: Disable during normal operation
- Enable during walktest or LED switch on
- Operating Temperature: -20°C - +50°C
- Environmental Humidity: 95% Max.
- RF Interface: No Alarm 20V/m
- Mounting Height: 0.8m - 1.2m
- Mounting: Wall
- Weight: 520G
- Weatherproof: IP55
APPLICATIONS:
- Buildings
- House
- Garage
FEATURES:
- Curtain detection left and right
- Adjustable detection range from 2 to 12m
- Animal tolerant
- Battery-operated suitable for wireless transmitters
XWAVE2 BX80 WIRELESS OUTDOOR DETECTOR
The BX-80NR is a battery-operated outdoor sensor that provides a curtain detection range from 2 to 12m on each side (left and right) which is ideal to protect the immediate boundary of a building. When located on a house or building facade, it will detect people getting right next to the wall or leaning towards the windows making it a perfect early intrusion detection sensor.
The BX-80R doesn't require any cable or wire at all to be installed. The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The BX-80NR can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.
Animal tolerant and very stable
The BX series is very stable to use in outdoor environment with small animal around. The sensor sends infrared beams on each side, both the top and bottom of the sensor. The beams need to detect a presence to trigger so a bird or a cat sitting on the window seal will not set the alarm off. Additionally, the BX-80 has extra features such as double conductive shielding, advanced temperature compensation and size judging function to provide reliable and stable detection.
Robust coverage of entrances on the side of a building
- Outdoor 24m long range PIR - 12m detection areas on both sides of detector.
- Variable detection range from 2-12m on each side.
- Double conductive shielding.
- Advanced PIR technology creates a narrow, long detection area that protects wide horizontal areas.
- Limited detection range function - can be adjusted to avoid detecting unwanted objects.
- Layered detection pattern that discriminates between large and small objects in the detection area.
SPECIFICATIONS:
- Model: BX-80NR (Battery Operator)
- Coverage: 24m (12m on each side)
- Detection Zones: 4 Zones (2 Zones on each side)
- Sensitivity: 2.0° at 0.6m/sec.
- Detectable Speed: 0.3m - 1.5m/s
- Power Supply: 3 - 9VDC Lithium or Alkaline Battery
- Current Consumption: 3mA (Walktest, LED on) - 15uA (Standby)
- Alarm Period: 2 - 1 sec.
- Alarm Output: Form C-Solid state switch: 10V DC 0.01A (max.)
- Battery Saving Time: Approx. 120sec. or 5sec.
- Tamper Swith: Form C opens when cover removed
- Warm-up Period: Approx. 2min
- LED Indicator: Disable during normal operation
- Enable during walktest or LED switch on
- Operating Temperature: -20°C - +50°C
- Environmental Humidity: 95% Max.
- RF Interface: No Alarm 20V/m
- Mounting Height: 0.8m - 1.2m
- Mounting: Wall
- Weight: 520G
- Weatherproof: IP55
APPLICATIONS:
- Buildings
- House
- Garage
FEATURES:
- Curtain detection left and right
- Adjustable detection range from 2 to 12m
- Animal tolerant
- Battery-operated suitable for wireless transmitters
