WISNETWORKS 5GHZ OUTDOOR WIRELESS CPE 433MBPS
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
Product Overview
WIS-Q450 is a 4330Mbps 1*1 MIMO outdoor wireless CPE for point-to-point and point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISPCPE, which provides incredible long range much better than any other vendors solution
Extremely Amazing Performance
WIS-Q450 is a 433Mbps 1*1 MIMO outdoor wireless CPE for point-to-point and
point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISP
CPE, which provides incredible long range much better than any other vendors solution.
Incredible Long Range
● Up to 23dBm Tx Power
● 14dBi directional antenna
● Wireless Speed up to 433Mbps
● Narrower Beamwidth for noise immunity
Perfect Collocation Of Monitor
WIS-Q450 can provide high definition video fluent transmission.
Wireless transmission rate, fast speed, no signal jam, multi-channel optional, effective interference avoidance.
Avoid data loss, reduce video carton, and ensure the stability and clarity of project monitoring picture quality.
Features and Benefits
14dBi panel antenna to build robust wireless PtP link
Compliant with 802.11ac/n/a, Wireless speed up to 433Mbps
Wireless Solutions for Surveillance
2 kilometers throughput 90+
40/20MHz selectable for channel bandwidth
Easy deployment and adjustment with provided mounting kits
Passive POE(24VDC) for flexile deployment
Weather-proof design for outdoor environment
Up to16kV ESD protection
Cost-effective passive PoE
The WIS-Q450 is able to be supplied power by a power injector using passive PoE technology which is more cost-effective
and make it more flexible to deploy the device in outdoor environment. The PoE length is up to 200 feet.

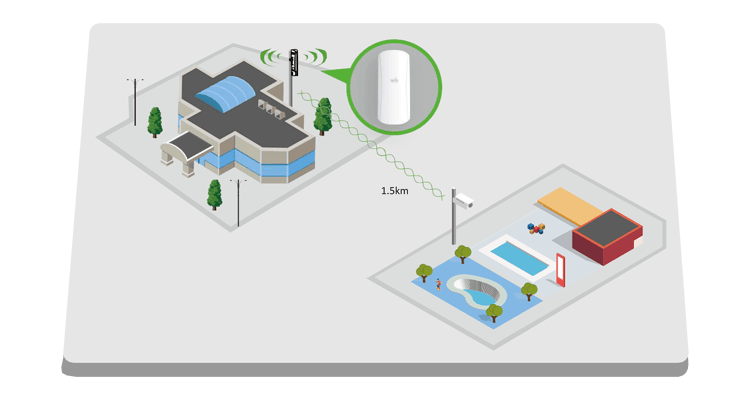

Wide Application Scenario
WIS-Q450 provides very wide application scenario, such as elevator, hospital, school, factory, parking lot, scenic spot, construction site etc.
Simple installation without configuration and easy maintenance.
Here is a video overview of the WIS-Q450 below
Hardware parameters
|
Radio |
802.11a/n/ac radio Wireless Speed up to 433Mbps Frequency Range 5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz (Support DFS) 5.725-5.825GHz Tx Power up to 23dBm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER |
|
Antenna |
14dBi panel antenna Beamwidth(HPBW) Horizontal:45°，Vertical:45° Open space 1-3KM |
|
Physical Parameters |
Dimension:177mm*80mm*65mm Weight:0.3kg Enclosure: Weatherproof Plastic ESD Protection：15kV Lightning Protection：2kV Working Temp：-40~65℃ Storage Temp：-40~85℃ Working Humidity：10%~95% non-condensing |
|
Security |
Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP) Encryption;64/128-bit WEP |
|
Interfaces |
14dBi panel antenna Beamwidth(HPBW) Horizontal:45°，Vertical:45° 1x 10/100Base-T Ethernet |
|
LED |
Power ：On/Off LAN : On/Off/Flashing WLAN : On/Off/Flashing RSSI Signal:1,2,3 |
|
Power |
24VDC, 0.5A Power Consumption: 6W |
|
Certification |
CE, RoHS |
|
Package content |
WIS-Q450 Quick Setup Guide Power Adapter with Passive PoE Mounting kits |
Product Overview
WIS-Q450 is a 4330Mbps 1*1 MIMO outdoor wireless CPE for point-to-point and point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISPCPE, which provides incredible long range much better than any other vendors solution
Extremely Amazing Performance
WIS-Q450 is a 433Mbps 1*1 MIMO outdoor wireless CPE for point-to-point and
point-to-multi-point solutions. It is the most cost-effective and ultimate solution for WISP
CPE, which provides incredible long range much better than any other vendors solution.
Incredible Long Range
● Up to 23dBm Tx Power
● 14dBi directional antenna
● Wireless Speed up to 433Mbps
● Narrower Beamwidth for noise immunity
Perfect Collocation Of Monitor
WIS-Q450 can provide high definition video fluent transmission.
Wireless transmission rate, fast speed, no signal jam, multi-channel optional, effective interference avoidance.
Avoid data loss, reduce video carton, and ensure the stability and clarity of project monitoring picture quality.
Features and Benefits
14dBi panel antenna to build robust wireless PtP link
Compliant with 802.11ac/n/a, Wireless speed up to 433Mbps
Wireless Solutions for Surveillance
2 kilometers throughput 90+
40/20MHz selectable for channel bandwidth
Easy deployment and adjustment with provided mounting kits
Passive POE(24VDC) for flexile deployment
Weather-proof design for outdoor environment
Up to16kV ESD protection
Cost-effective passive PoE
The WIS-Q450 is able to be supplied power by a power injector using passive PoE technology which is more cost-effective
and make it more flexible to deploy the device in outdoor environment. The PoE length is up to 200 feet.
Wide Application Scenario
WIS-Q450 provides very wide application scenario, such as elevator, hospital, school, factory, parking lot, scenic spot, construction site etc.
Simple installation without configuration and easy maintenance.
Here is a video overview of the WIS-Q450 below
Hardware parameters
|
Radio |
802.11a/n/ac radio Wireless Speed up to 433Mbps Frequency Range 5.150-5.250GHz 5.250-5.350GHz（Support DFS） 5.470-5.725GHz (Support DFS) 5.725-5.825GHz Tx Power up to 23dBm Rx Sensitivity 300M:-71dBm@10% PER 54M:-75dBm@10% PER |
|
Antenna |
14dBi panel antenna Beamwidth(HPBW) Horizontal:45°，Vertical:45° Open space 1-3KM |
|
Physical Parameters |
Dimension:177mm*80mm*65mm Weight:0.3kg Enclosure: Weatherproof Plastic ESD Protection：15kV Lightning Protection：2kV Working Temp：-40~65℃ Storage Temp：-40~85℃ Working Humidity：10%~95% non-condensing |
|
Security |
Integrated Firewall WPA/WPA2;WPA-PSK/WPA2-PSK(AES/TKIP) Encryption;64/128-bit WEP |
|
Interfaces |
14dBi panel antenna Beamwidth(HPBW) Horizontal:45°，Vertical:45° 1x 10/100Base-T Ethernet |
|
LED |
Power ：On/Off LAN : On/Off/Flashing WLAN : On/Off/Flashing RSSI Signal:1,2,3 |
|
Power |
24VDC, 0.5A Power Consumption: 6W |
|
Certification |
CE, RoHS |
|
Package content |
WIS-Q450 Quick Setup Guide Power Adapter with Passive PoE Mounting kits |
