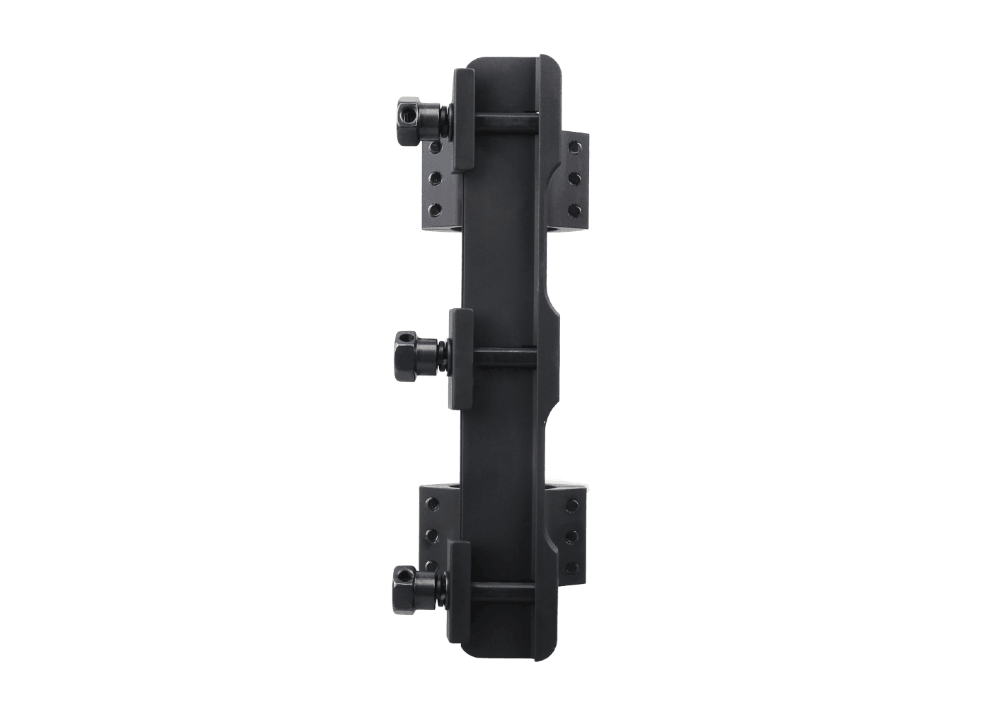

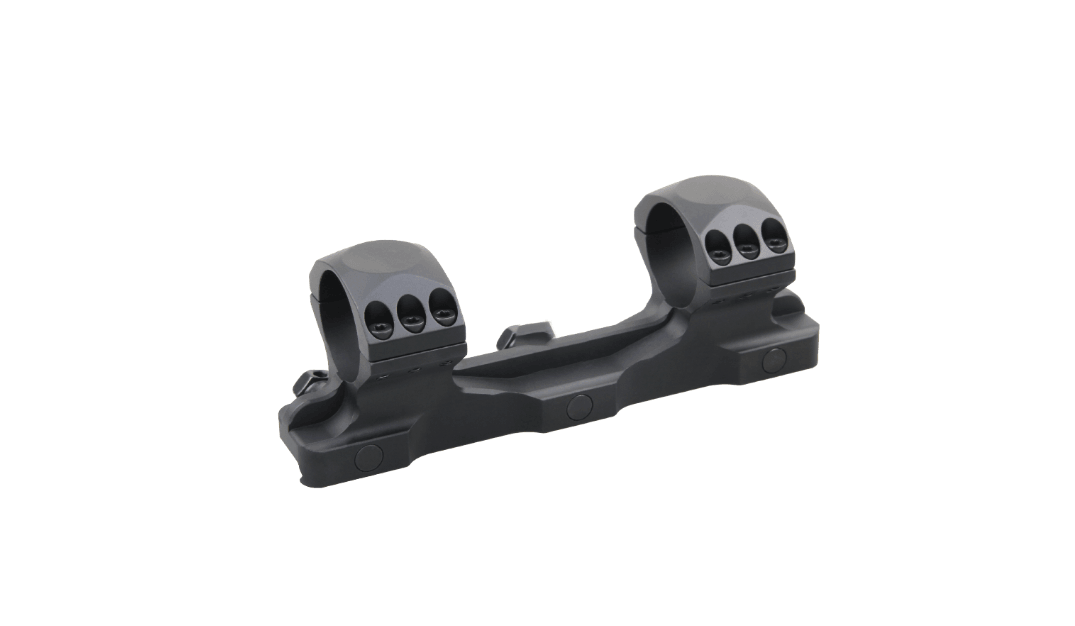

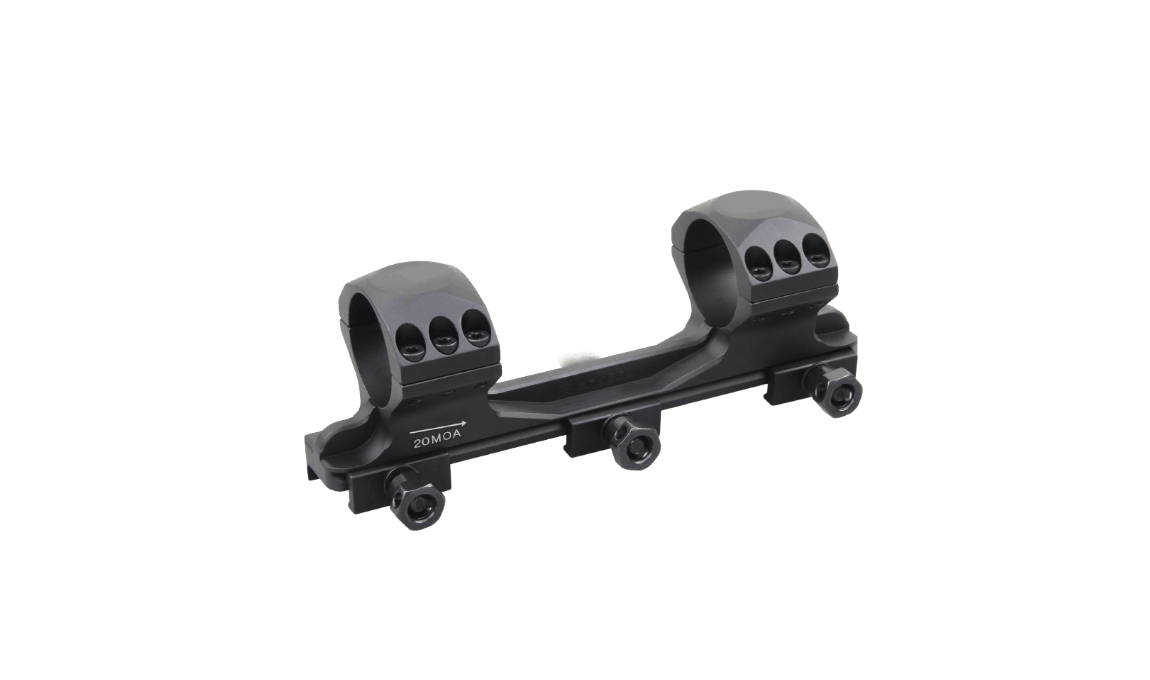

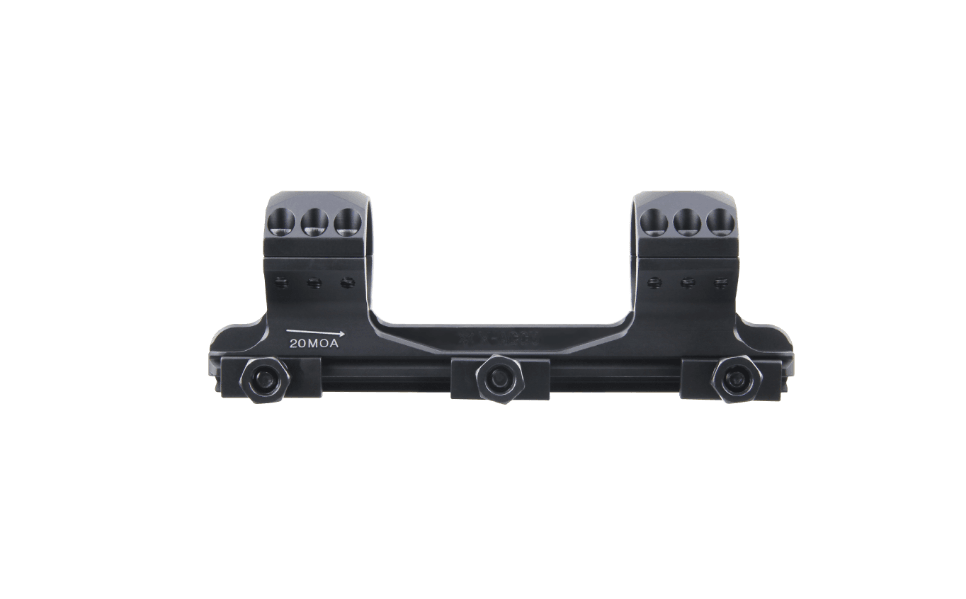

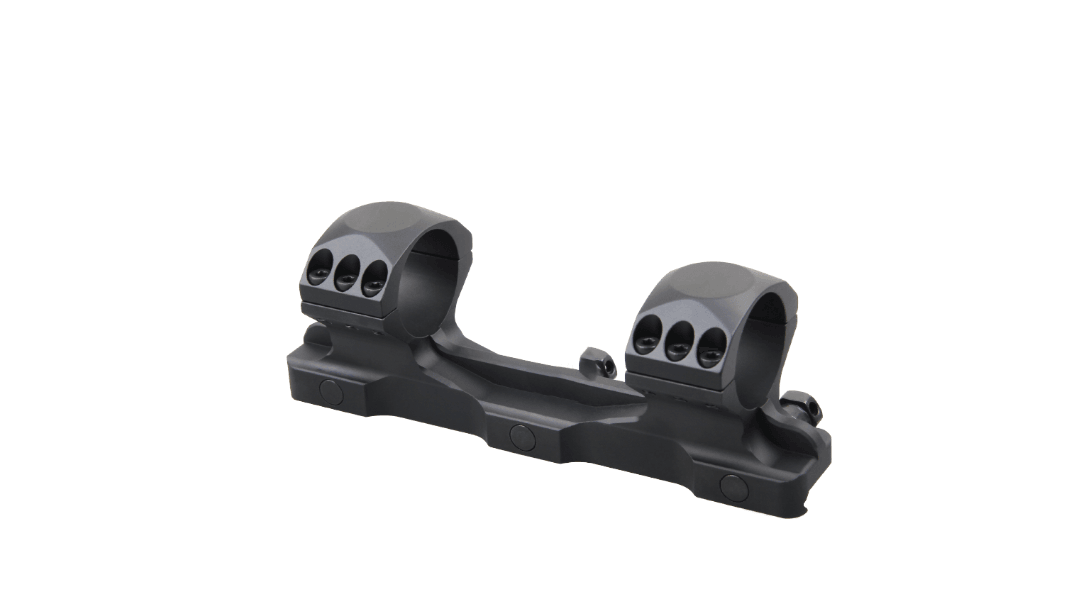

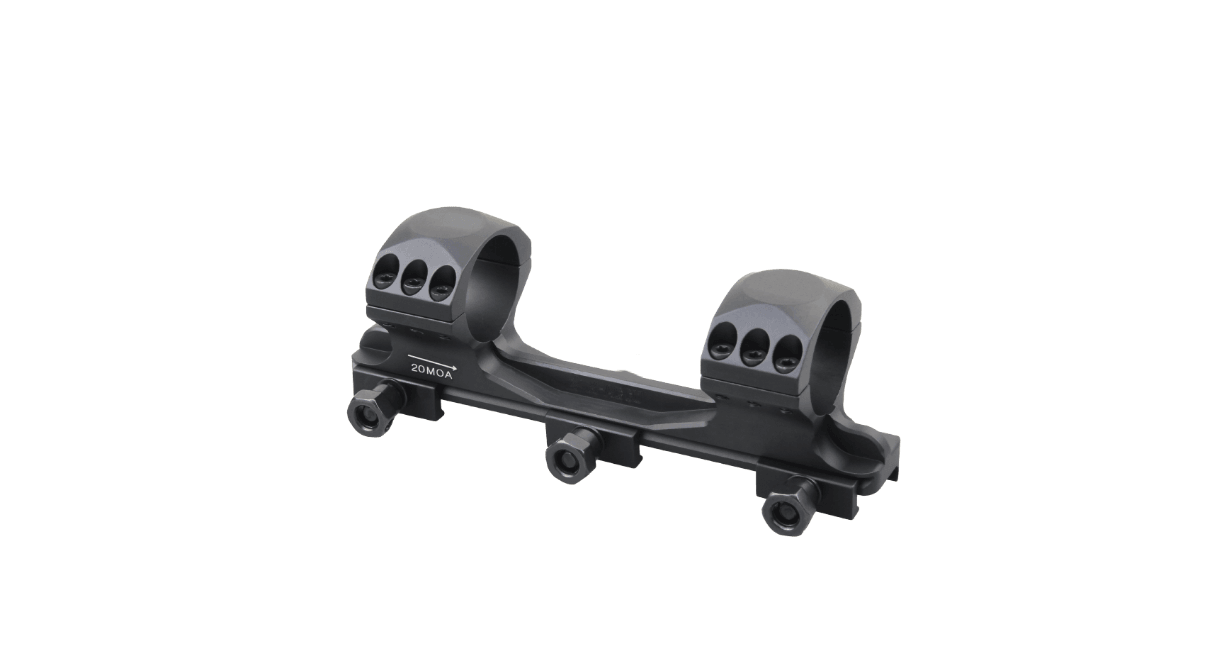

VECTOR OPTICS XASR-3011 MOA MED PICATINNY MOUNT

VECTOR OPTICS XASR-3011 MOA MED PICATINNY MOUNT

Fully CNC machined with precision and finished in hard anodizing, the VECTOR OPTICS XASR-3011 MOA MED PICATINNY MOUNT offers an incredibly accurate scope mounting solution. With a 30mm Dia., 20MOA / 6MIL Type, and the ability to fit max 50mm scope objective lenses, this mount is an exceptional choice.

Featuring 6 screws per ring and 32mm 1.2in bottom to ring center, it ensures a secure and sturdy attachment. The 21mm Picatinny mount comes with 3 crossing bolts and anti-retreat rings, capable of withstanding a maximum of 45in / pounds torque force for even the biggest nuts when installing on a Picatinny rail.

SPECS:

• Diameter: 30mm
• Overall Length: 154m / 6.1in
• Overall Height: 59mm / 2.3in
• Mount Length: 154mm / 6.1in
• Ring Width: 45.5mm / 1.8in
• Central Height: 32mm / 1.2in, bottom to center
• Ring Length: 26mm / 1.0in
• Gap Length: 70mm / 2.8in
• Material: 6061-T6 aluminum alloy
• Weight: 230g / 8.5oz
• Mount: Picatinny
• Finish: Hard anodizing in black matte
• Screws per ring: 6
• 20MOA / 6MIL
• High-durability aluminum alloy in black matte, designed for high recoil calibers
• Do not use over 18 inch / pounds of torque on the scope rings' screws
• Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail
• With T15 torx wrench and retail package
