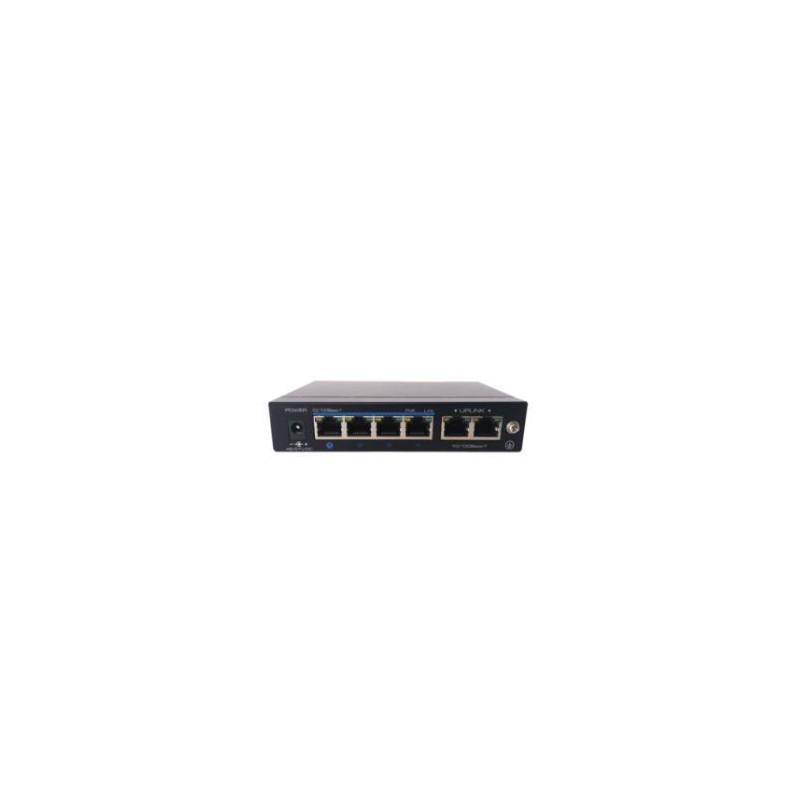

UTP3-GSW04-TP60
�
4 Ports Full Gigabit PoE Switch
The 4 Ports Full Gigabit PoE Switch is specially designed for the application of high definition network security surveillance system. The PoE switch provides 4 Gigabit downlink PoE ports support 802.3at and dual Gigabit uplink ports.the total PoE power output is up to 60 watts. It's widely used in surveillance monitor and Ethernet network solution.
Model - UTP3-GSW04-TP60
Downstream Ports - 4* 10/100/1000Base-T (PoE)
Uplink Ports - 2*10/100/1000Base-T
Network Standard - IEEE802.3?IEEE802.3u?IEEE802.3ab?EEE802.3 X
Switch Capacity- 12Gbps
Throughput - 8.93Mpps
Switch Processing SchemeStore and Forward
Memory Buffer - 1M
MAC Table2K
PoE Standard802.3af/at(PSE)
PsE TypeEnd-span
Power Pin Assignment 1/2(+)?3/6(-)
PoE Power Output 54V DC , 30 watts max
PoE Budge60 watts max
Lightning protection6KV ?IEC61000-4-5
ESD6KV Contact discharge
8KV Air discharge
IEC61000-4-2
Power Supply =DC 48V~57V
Power Dissipation = 5W
Storage temperature = -40?~85?
Humidity(Non-condensin)5%-95%
Dimension =LxWxH 135mmx86mmx27mm
Weight = 343g
