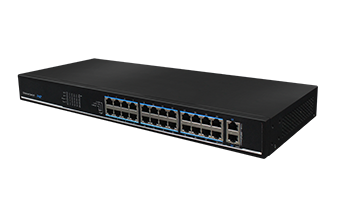

The UTEPO UTP3226TS-PSB is a 24-port Fast Ethernet PoE+ switch designed for IP surveillance and other PoE network deployments. It combines 24 powered 10/100 Mbps downlink ports with Gigabit copper and SFP uplinks for flexible backbone connectivity.
Key features
- 24 × 10/100Base-TX PoE RJ45 ports
- 2 × 10/100/1000Base-T Gigabit RJ45 uplinks
- 1 × 1000Base-X SFP combo uplink
- IEEE 802.3af/at PoE, up to 30W per port
- Up to 390W total PoE budget
- Default, VLAN and CCTV operating modes
- PoE watchdog in VLAN/CCTV modes to restart unresponsive cameras
- Extended CCTV transmission mode up to approximately 250m at reduced downlink speed
- 6kV surge protection
- 8.8Gbps switching capacity
- 100–240V AC input
What's in the box
- 1 × UTEPO UTP3226TS-PSB PoE+ switch
- 1 × AC power cable
- Documentation and mounting accessories as supplied
