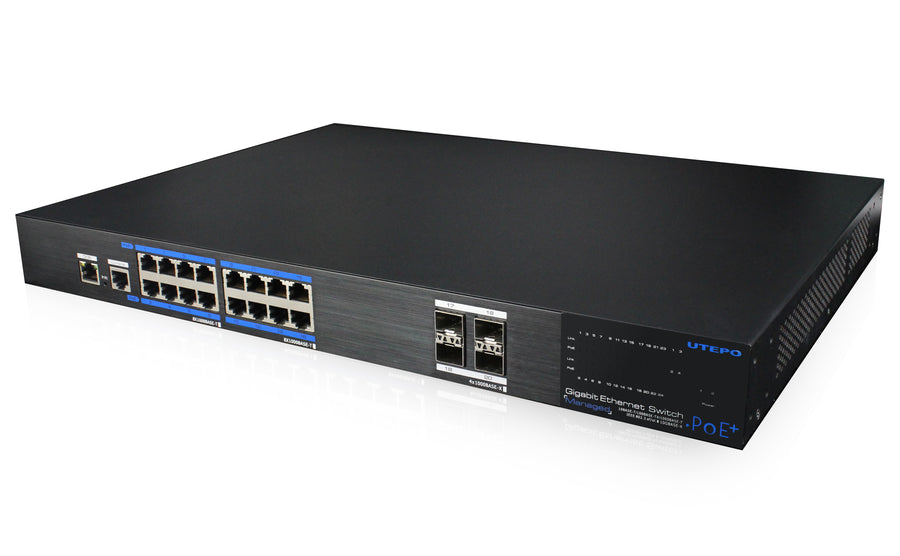

The UTEPO UTP7516GE-POE-4GF is a Layer 2 managed PoE+ switch built for high-bandwidth IP surveillance and business-network deployments. It combines 16 Gigabit PoE ports with four Gigabit SFP uplinks and a 270 W PoE budget, making it well suited to larger IP-camera installations and network backbones.
Key Features
- 16 x 10/100/1000Base-T PoE RJ45 ports
- 4 x 1000Base-X SFP uplink ports
- IEEE 802.3af/at PoE+ support
- Up to 30 W PoE per port
- 270 W total PoE budget
- 40 Gbps non-blocking switching capacity
- 29.8 Mpps packet-forwarding rate
- 16K MAC-address table
- Supports VLAN, IGMP snooping, STP/RSTP, link aggregation, ACL and port mirroring
- Web, CLI, Telnet, SSH and SNMP management
- Dual IPv4/IPv6 support
- PoE power management and per-port control
- 6 kV surge protection
- Rack, wall or desktop installation
Specifications
- Model: UTP7516GE-POE-4GF
- Power input: AC 100-240 V, 50/60 Hz
- PoE budget: 270 W
- Operating temperature: approximately -10°C to +50°C
- Dimensions: approximately 442 x 320 x 44.5 mm
- Weight: approximately 4.35 kg
What's in the Box
- 1 x UTEPO UTP7516GE-POE-4GF managed PoE switch
Installation note: SFP modules are selected separately to suit the required fibre type and distance unless specifically included with the supplied package.
