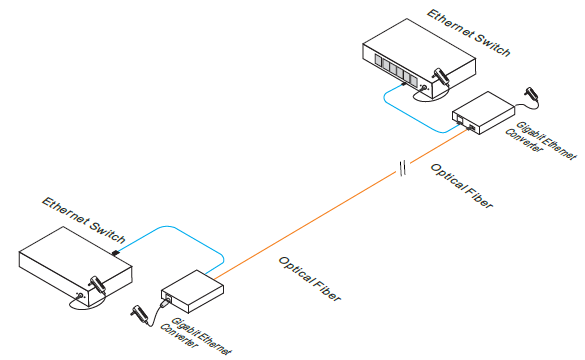

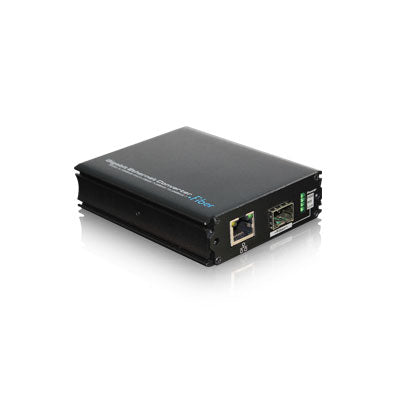

The UTEPO UOF7201GE is an industrial Gigabit Ethernet media converter that converts between copper Ethernet and fibre using a compatible SFP optical module. The unit is suitable for CCTV, security, commercial networking and other fibre-link applications.
Key Features
- 1 x 10/100/1000BASE-T RJ45 Ethernet port
- 1 x 1000BASE-X SFP fibre port
- Supports compatible single-fibre or dual-fibre SFP modules
- 1.25Gbps fibre-port bandwidth
- Industrial operating-temperature design
- 6kV surge-immunity protection
- Plug-and-play media conversion
- Aluminium housing
Technical Specifications
-
Model: UOF7201GE
-
Local Product Code: NW169-7
-
Ethernet: 10/100/1000Mbps RJ45
-
Fibre: 1000BASE-X SFP
-
Fibre Transmission Distance: Depends on the installed SFP module
-
Power Input: 12-24V DC
-
Power Consumption: less than 3W
-
Operating Temperature: approximately -40°C to +75°C
-
Storage Temperature: approximately -40°C to +85°C
-
Operating Humidity: 0-95% non-condensing
What's in the Box
- 1 x UTEPO UOF7201GE Gigabit Ethernet Converter
- 1 x Power Adapter
- Mounting Ears / Hardware
- 1 x User Manual
SFP note: The SFP optical module is selected according to the required fibre type and transmission distance and may be supplied separately.
