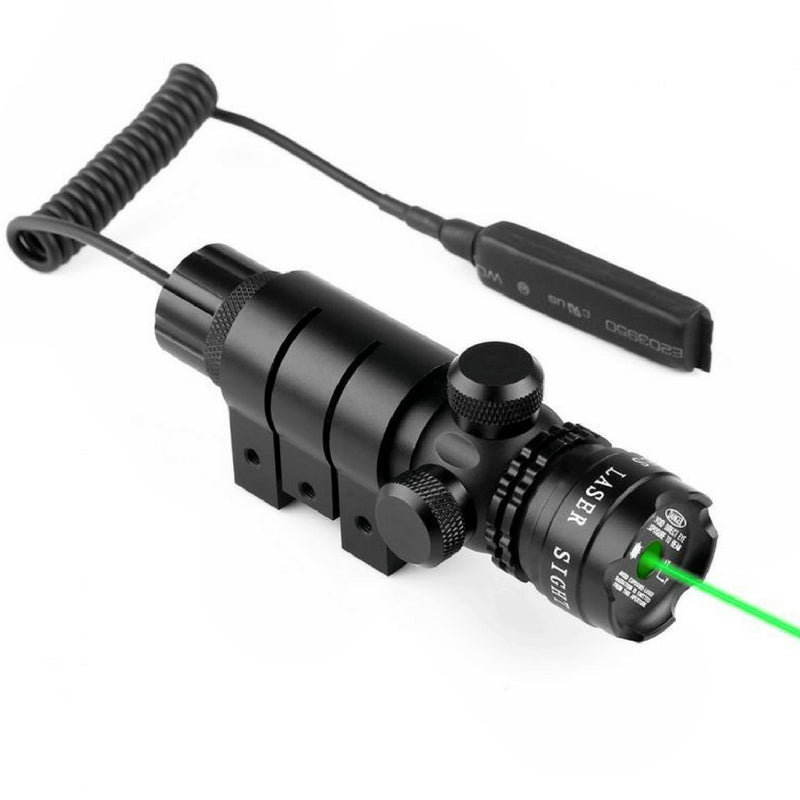

Laser unit, completely aluminium and dyed black.

Measures in 119mm in length, ?25mm with the emission end being ?29mm. Attachment/clamp space is 45mm. It has two dials for adjusting windage and elevation respectively (x;y), which is concealed/protected by aluminium thumb screw caps. The brass adjustment screws inside can be torqued w/ a metric 3mm hex key. There are adjustment measuring lines and each incremental adjustment is marked by a positive 'click' sound. There are clear marked "L" and "UP" w/ directional torquing indicators on the dials which assist in adjustment and zeroing the laser dot in.

The cap at the rear screws open w/ groove slots to assist in twisting, also w/ an 8mm knurled collar for added traction. The power switch is right at the back and clicks when toggled. a Momentary 'off' is possible, but not a momentary 'on'.

Class IIIA laser emitting product

Wavelength emission is 532nm @ <5 mW.

The bezel crown has circular-indented crenellations.

---

The box itself is mostly blue w/ instructions and precautions printed at the bottom face. The top flap has imbedded magnetic retention at the frontal end which breaks easily. Inside, enmeshed in the cut-out slots of the 20mm high medium density foam, are the products included in this kit;

1x Aluminium green laser-emitting module

1x Aluminium M1913 / weaver mounting clamp w/ three steel hex-drive locking screws, however, none of which would fit through the rail slots. This claim is thus exclusively sideward clamp retained, offering little recoil resistance

1x Steel 3mm metric allen key - will adjust, fasten, loosen all hex drive bolts included in this package.

1x double 1" / 25.4mm clamp. One end can clamp around the tube of a rifle scope, the other end, around the laser module. One end has two weaver rails, symmetrically positioned on the sides.

1x Remote line w/ pressure switch. This screws onto the rear of the laser module, replacing the switching button, but uses the same screw-on retainer cap as an adapter. The pressure pad measures 42x17x5mm. The cable is capable of elongating to about 455mm w/ a 45mm coil.

1x Panasonic OEM CR123 non-rechargeable battery included. This module loads up with one of these batteries, W/ THE NEGATIVE POLARITY GOING IN FIRST.
