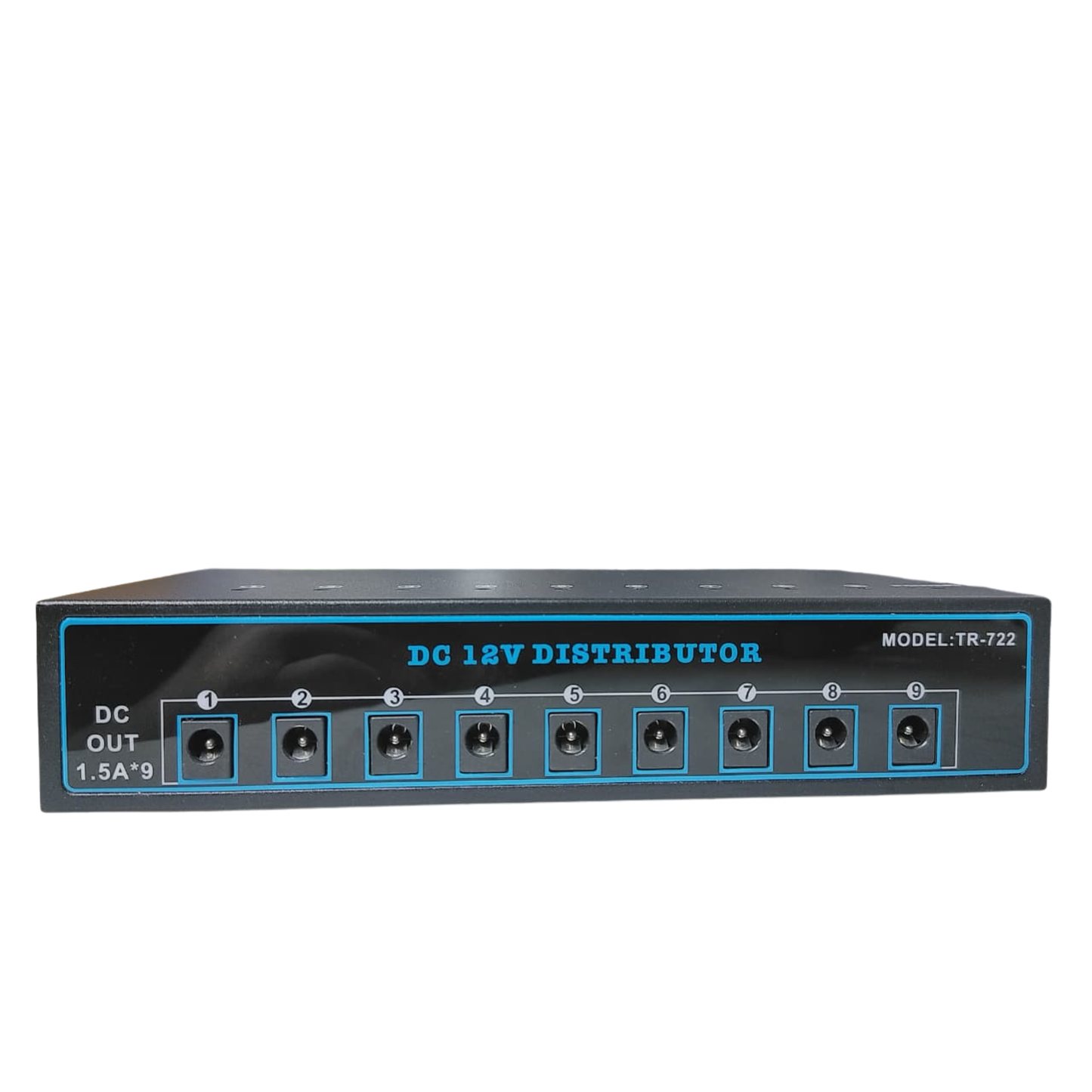

Organise your power connections with confidence. The TR-722 12V DC Distributor is a compact power hub designed to split one 12V DC input into nine stable outputs. Perfect for powering multiple CCTV cameras, LED strips, routers, access control systems, and other low-voltage devices, it delivers neat, efficient and reliable power distribution from a single source.
Key Features
- 9-channel DC 12V distribution hub for CCTV, LED, routers, and more
-
1.5A per output — up to 13.5A total load capacity (depending on input supply)
- Standard 2.1mm DC barrel jacks for easy plug-and-play connections
-
LED indicators for each output channel to monitor status
- Durable metal housing with ventilation for heat dissipation
-
Short-circuit and overload protection (varies by model batch)
- Compact and easy to mount on walls, shelves, or inside control boxes
Specifications
-
Model: TR-722
-
Input voltage: DC 12V ±10%
-
Output voltage: DC 12V (same as input)
-
Outputs: 9 channels, individually labelled (1–9)
-
Maximum current per output: 1.5A
-
Total maximum load: 13.5A (subject to input supply rating)
-
Connectors: 2.1mm × 5.5mm DC barrel jacks
-
Housing material: Black powder-coated steel
-

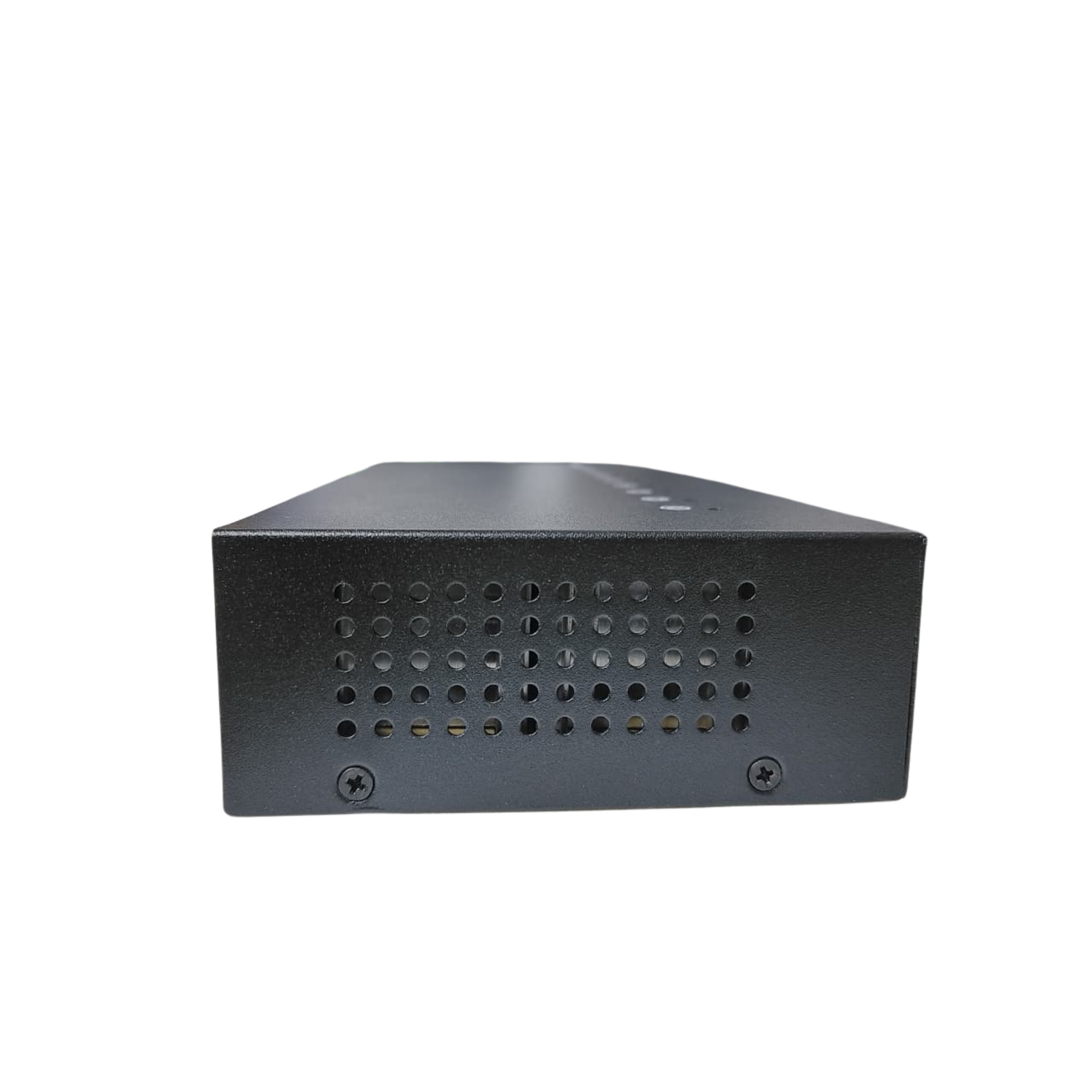

Cooling: Passive air vents (no fan required)
-

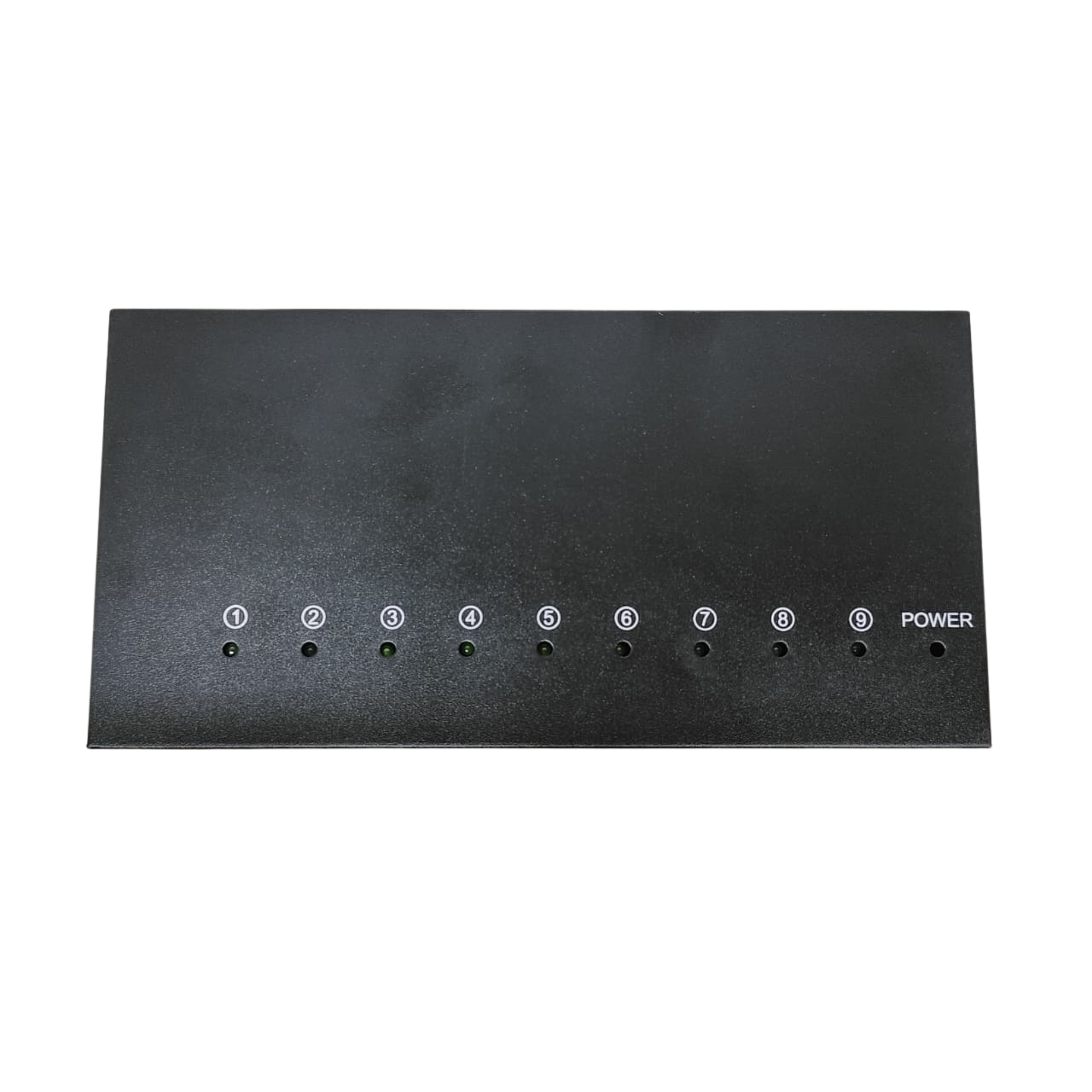

Indicator LEDs: Yes, one per output channel
-
Dimensions: ±175 × 75 × 35 mm
-
Weight: ±350 g
Typical Applications
- Powering up to 9 CCTV cameras from a single 12V adapter
- Distributing power to LED lighting strips and small automation devices
- Providing 12V DC to multiple routers, switches, or wireless transmitters
- Used in home, retail, or small office security installations
Installation Notes
- Ensure your input power supply can deliver enough current for all connected devices.
- Example: 9 cameras × 0.5A = 4.5A total → use at least a 5A or higher-rated 12V adapter.
- Check polarity before connecting any devices.
- Allow ventilation space around the unit for passive cooling.
- Mount securely using wall screws or within a control cabinet.

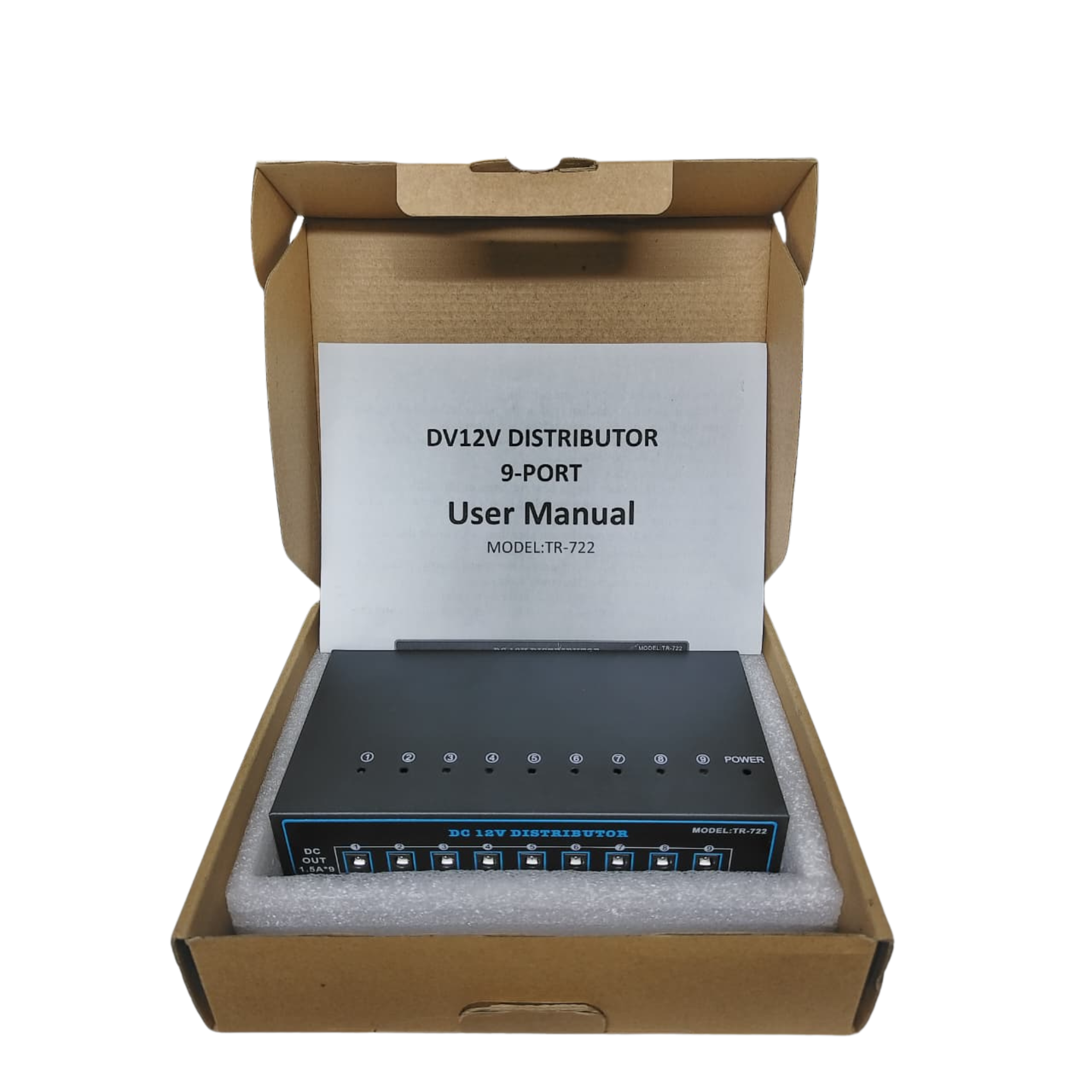

What's in the Box
- 1 × TR-722 12V 9-Channel Power Distribution Box
- 1 × User Guide (if included)
- Mounting screws (optional, depending on package)
Why Choose the TR-722
The TR-722 provides a clean and professional way to manage multiple 12V devices from a single source. With individual LED indicators and up to 1.5A per channel, this compact unit is the perfect solution for CCTV installers, technicians, and DIY enthusiasts looking for a reliable power distribution solution.
TR-722 | 9-Way 12V Power Distributor – Simplify your power management with a reliable 9-channel hub for all your 12V devices. Designed for safety, durability, and efficiency.
