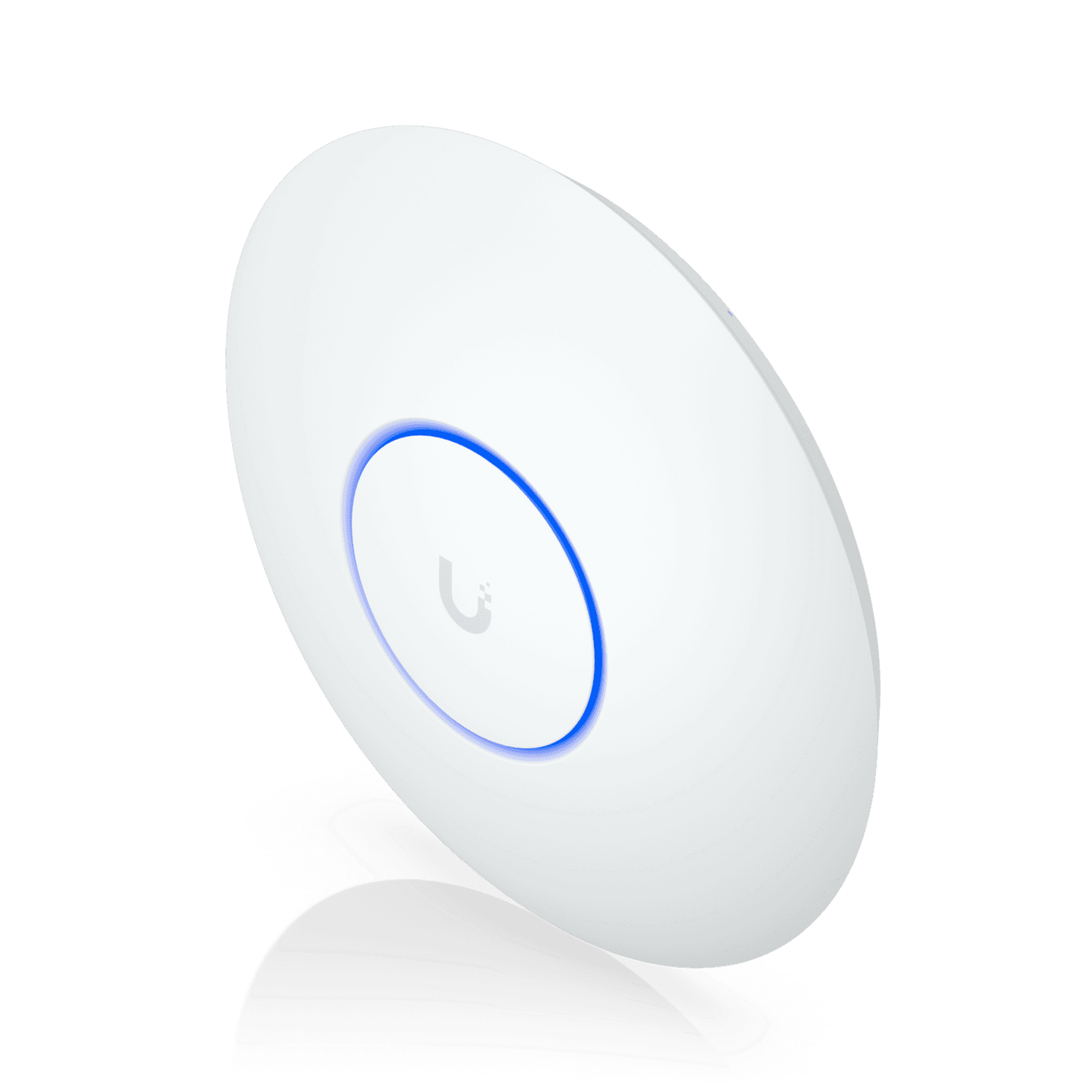

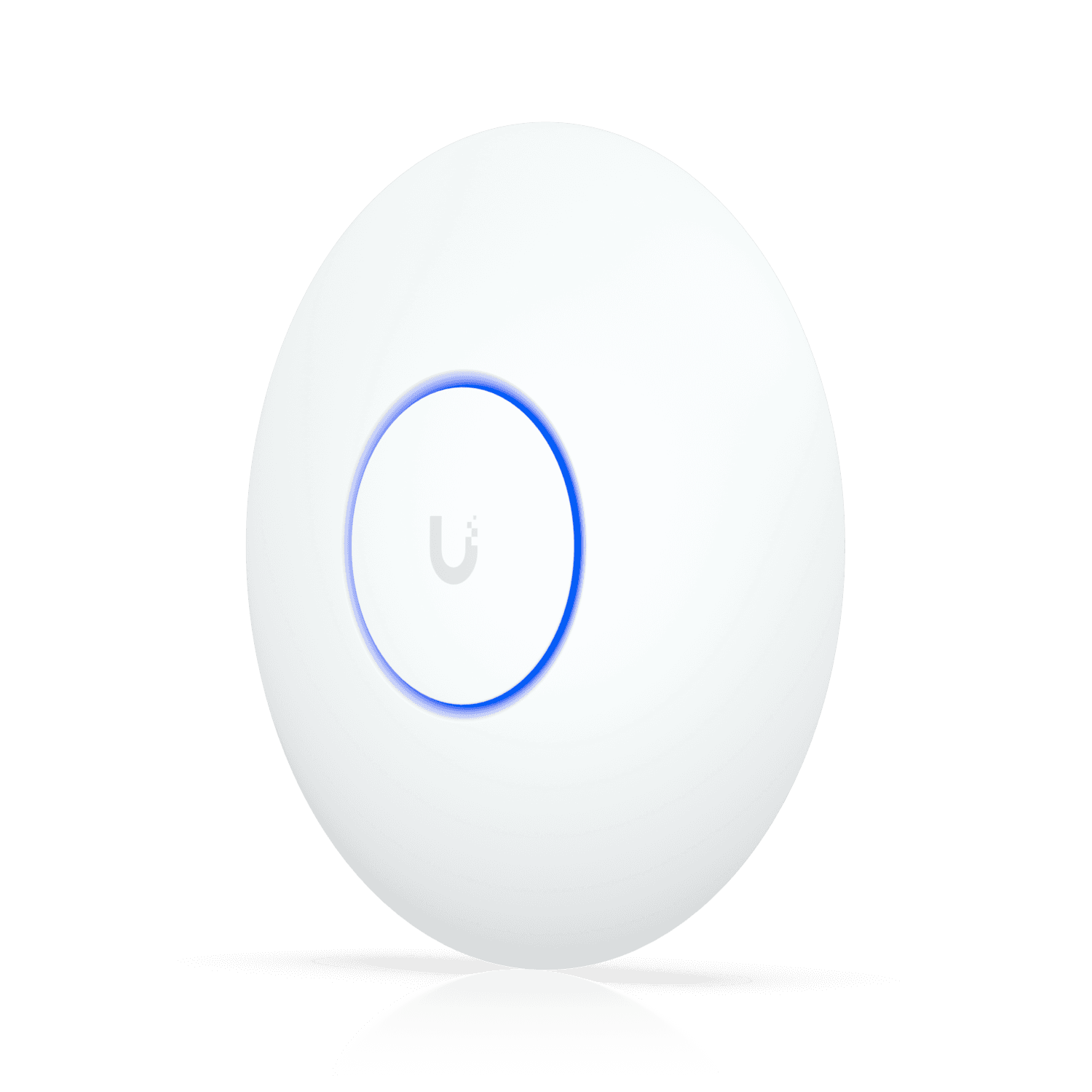

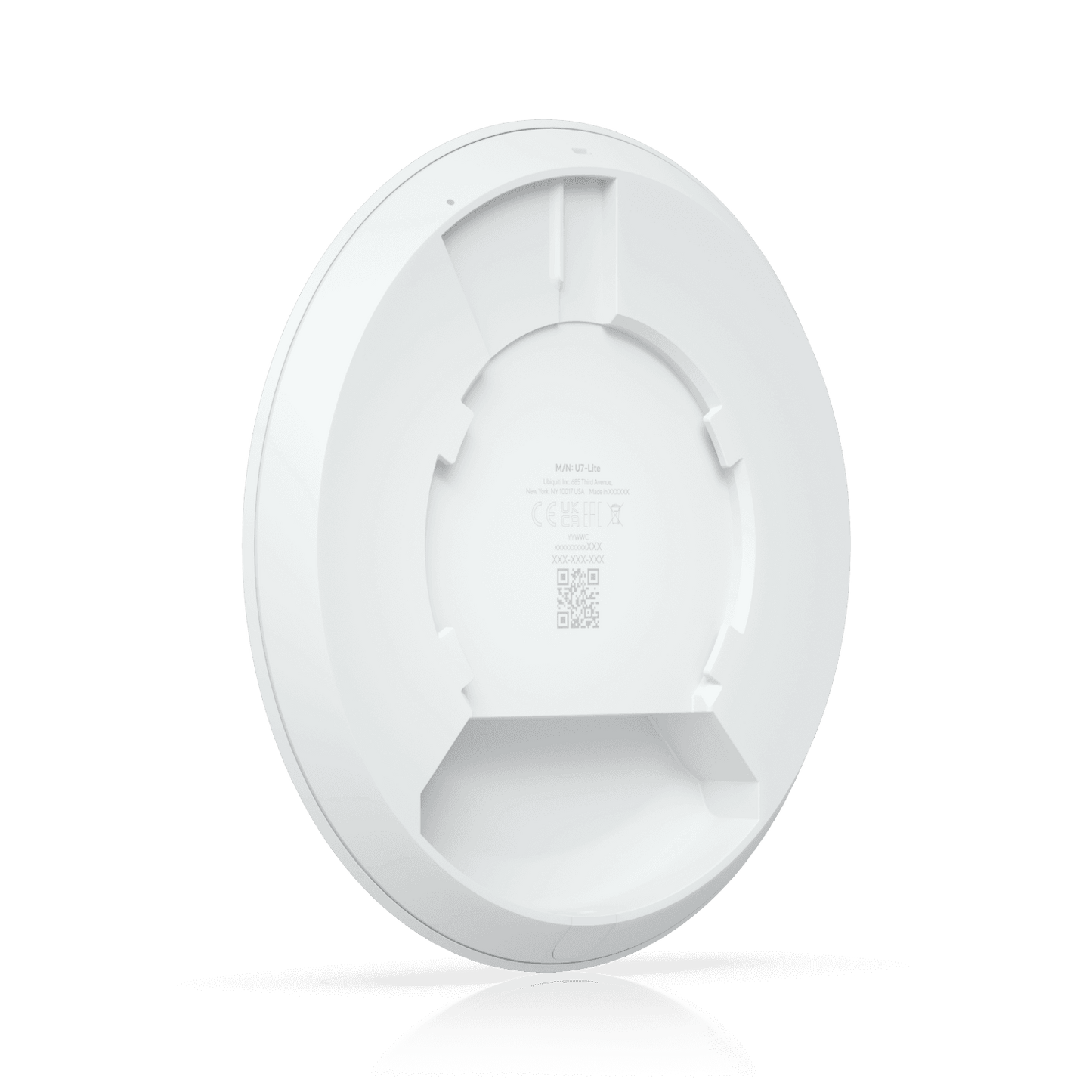

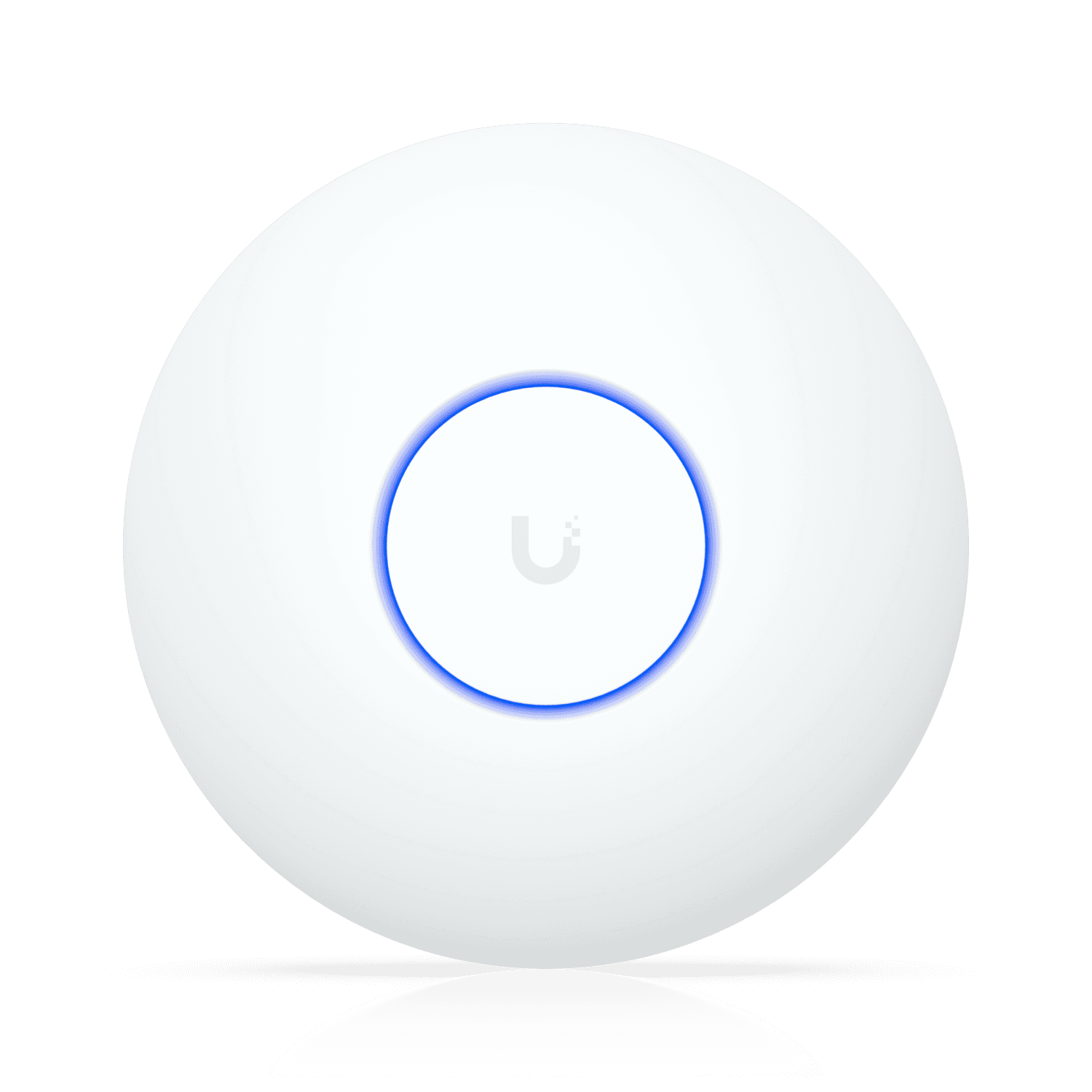

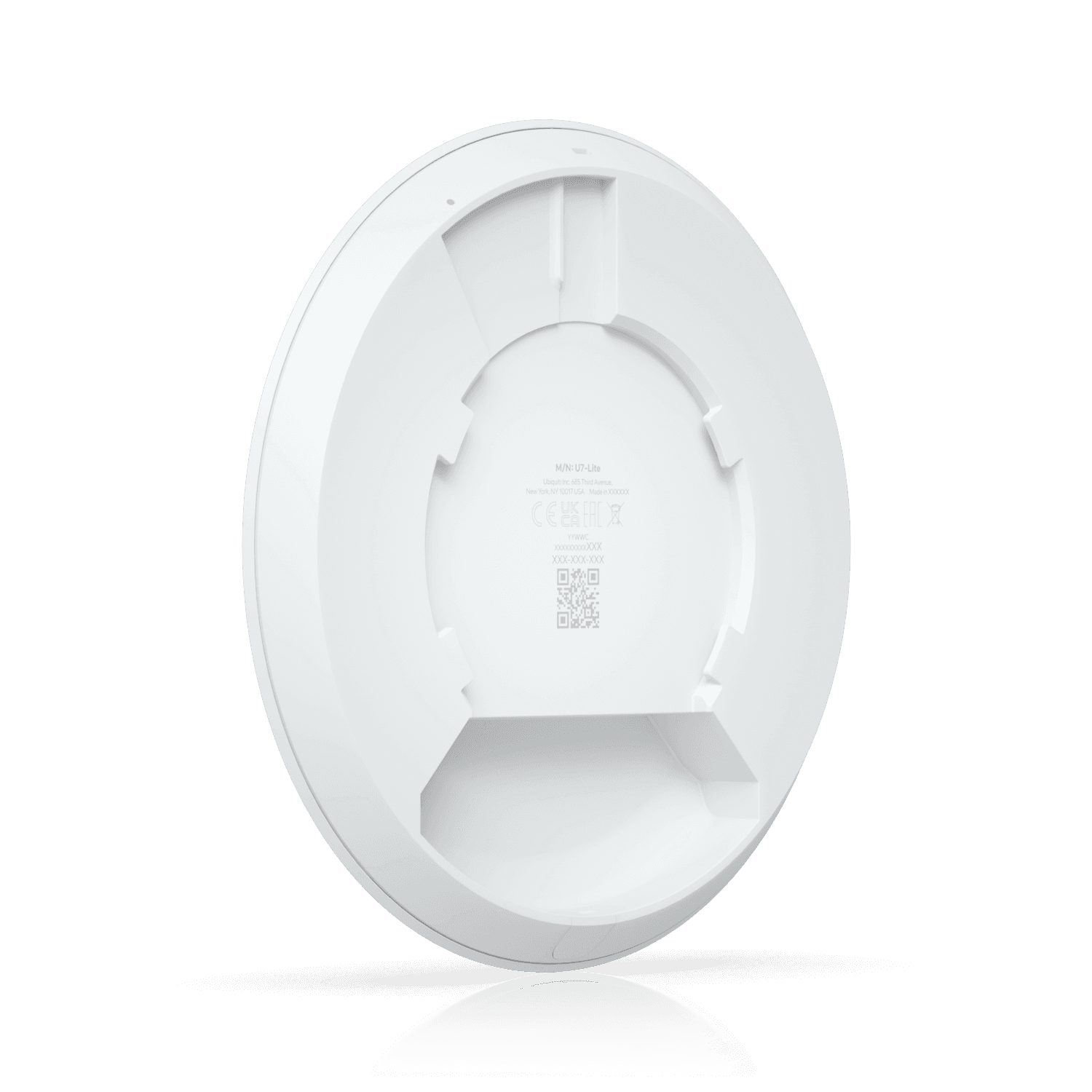

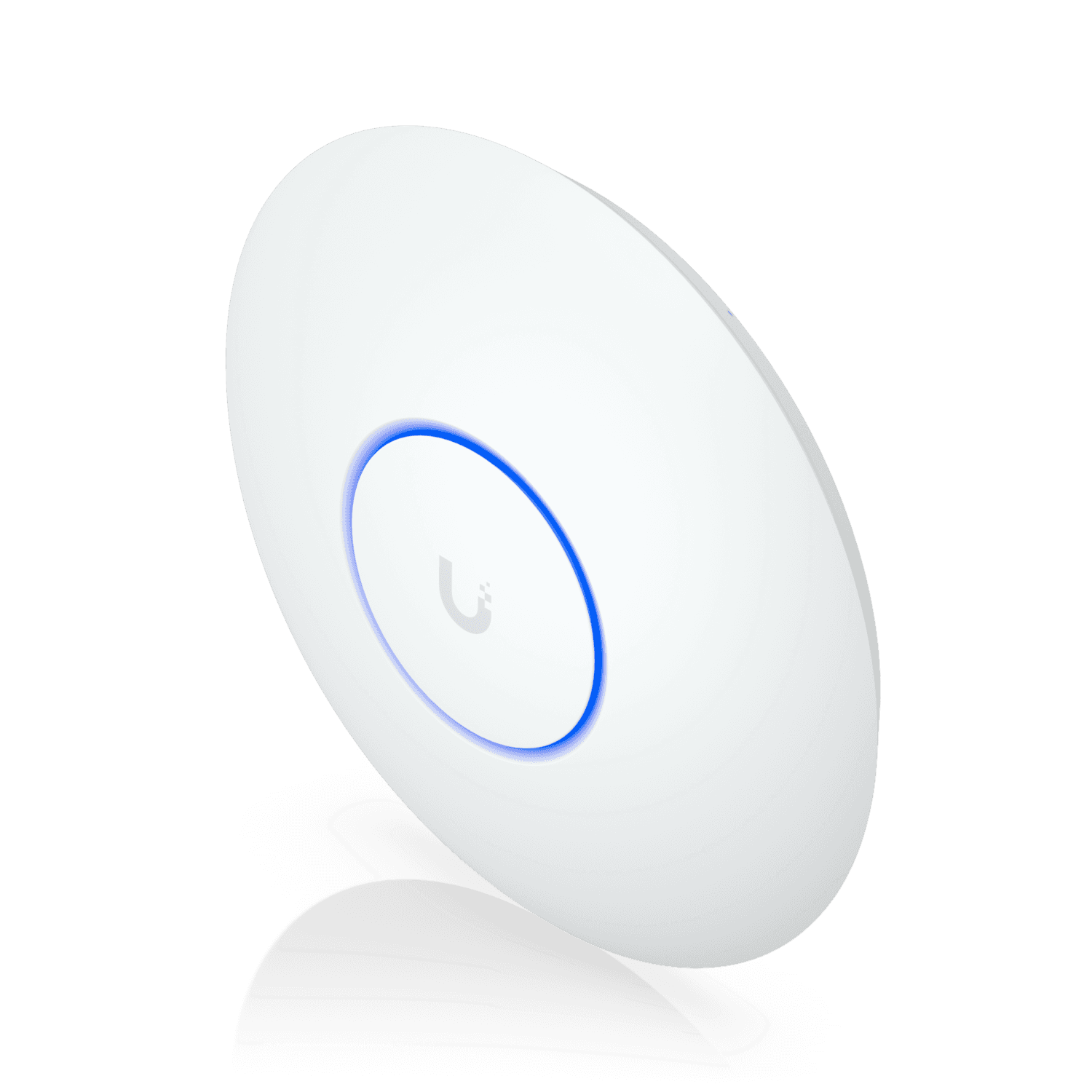

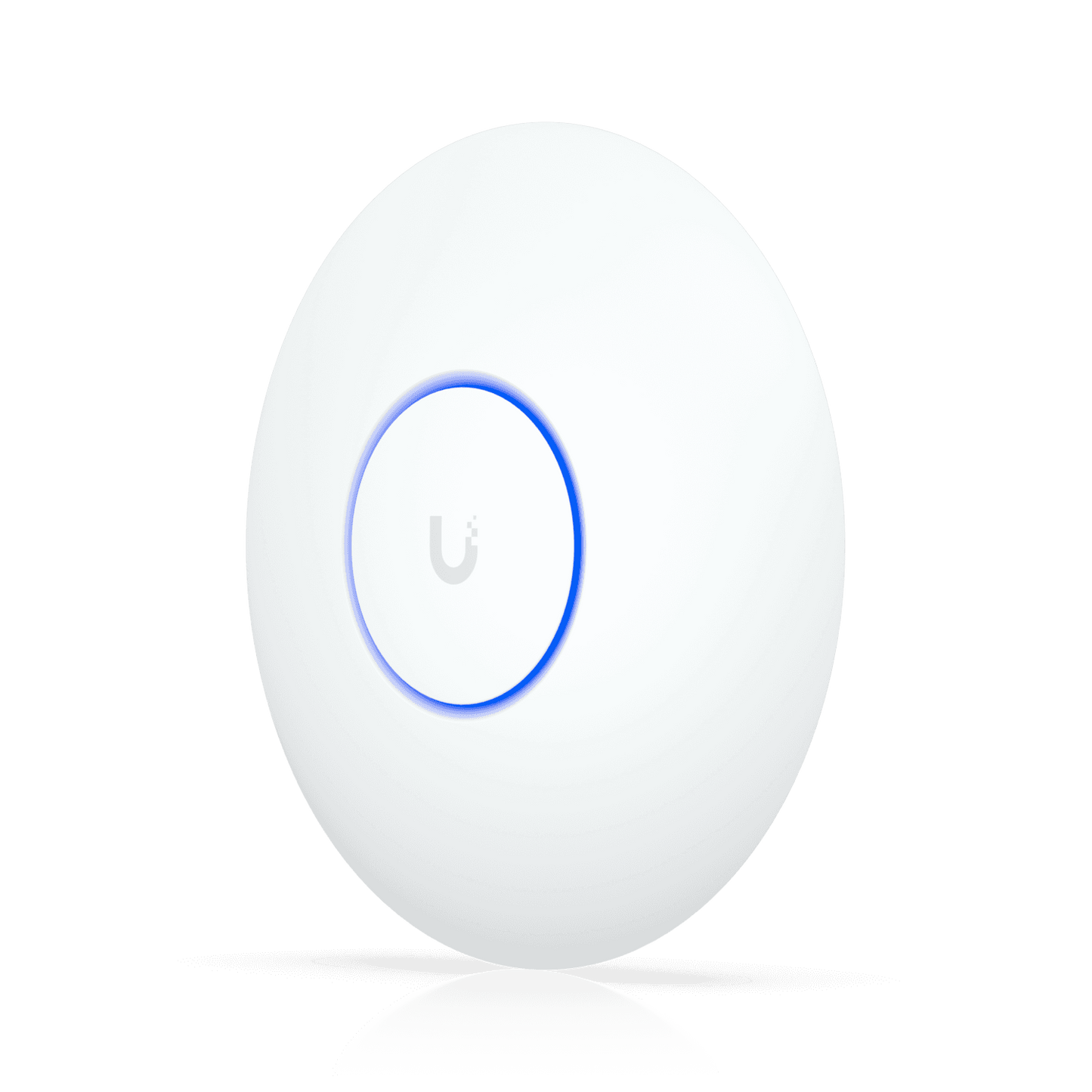

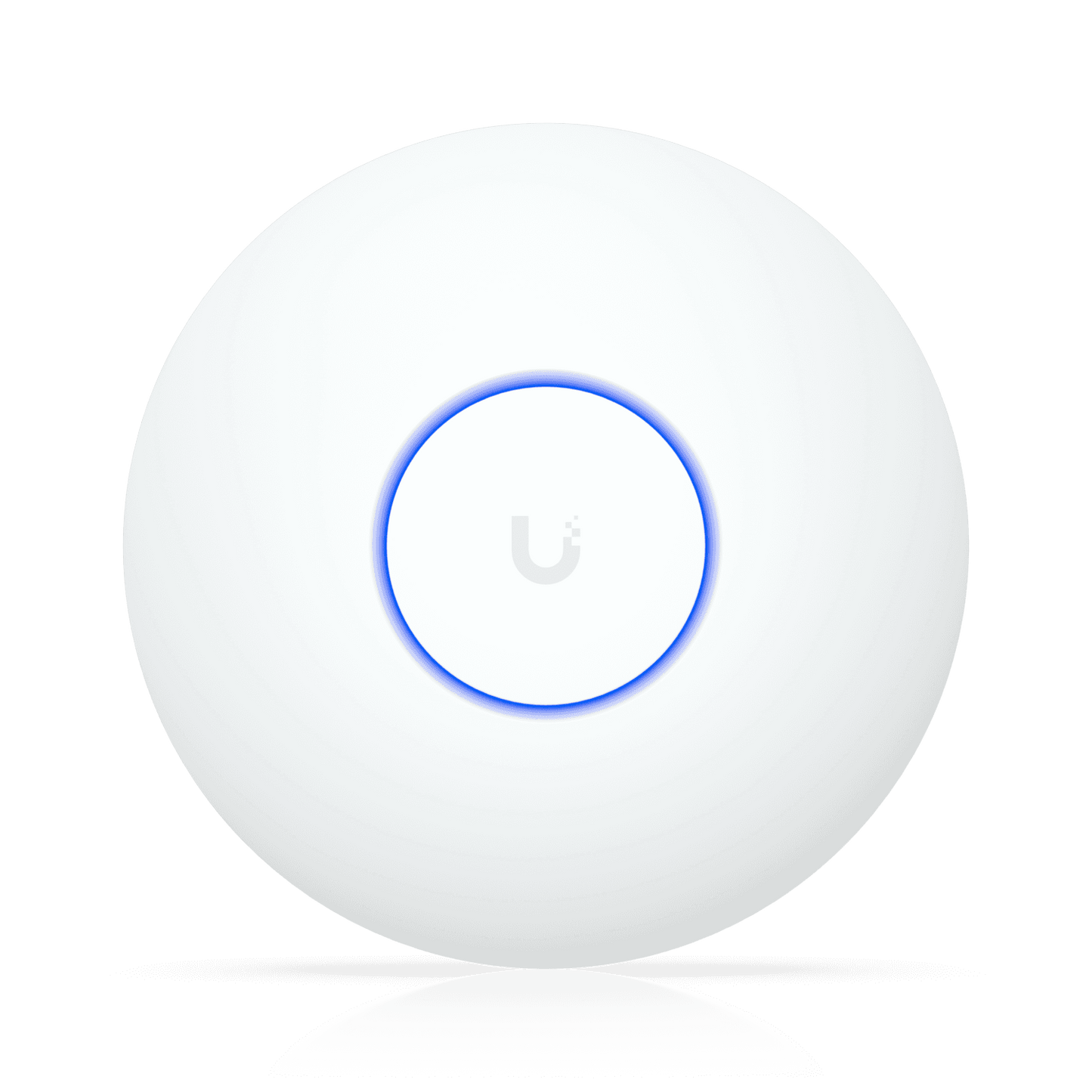

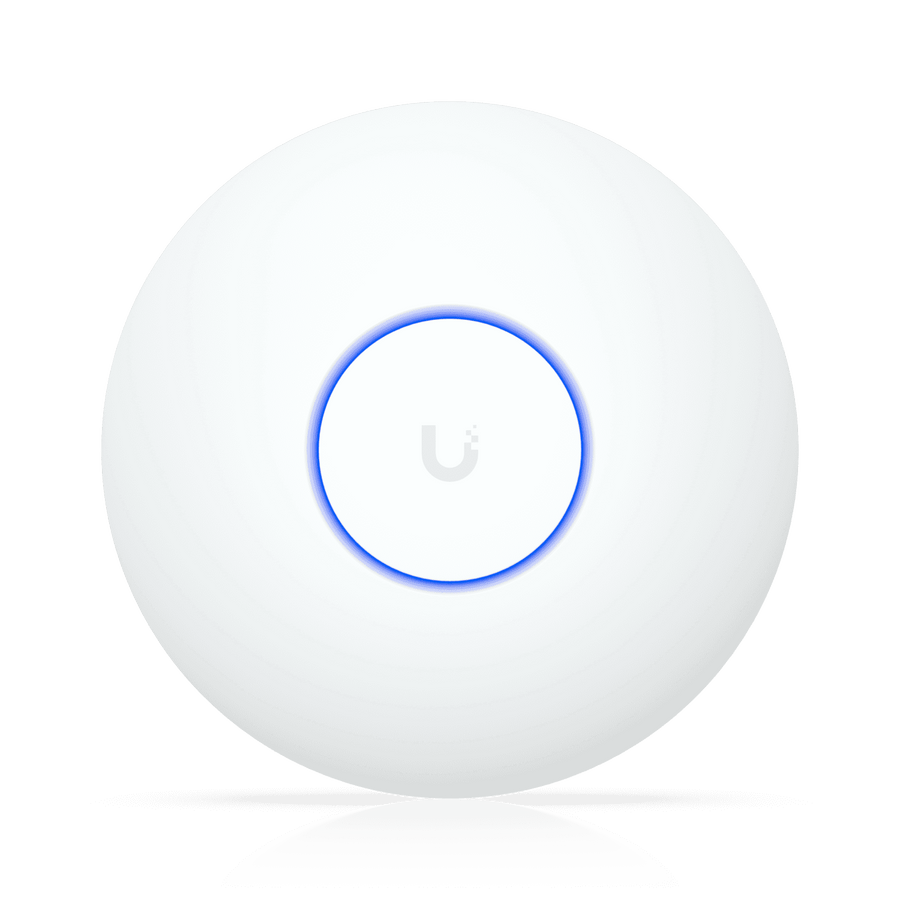

Ubiquiti UniFi WiFi 7 Lite Dual-Band Access Point
The Ubiquiti UniFi WiFi 7 Lite is a next-generation dual-band wireless access point designed to deliver high-speed, reliable connectivity for modern homes, offices, and business environments. Featuring the latest WiFi 7 (802.11be) technology, the U7 Lite offers enhanced performance, lower latency, and improved network efficiency for demanding applications and high-density deployments.
With support for over 200 connected devices, a 2.5 Gigabit Ethernet uplink, and advanced roaming and security features, the UniFi WiFi 7 Lite is an ideal solution for creating a fast and seamless wireless network.
Key Features
-
Latest WiFi 7 Technology – Delivers faster speeds and improved network efficiency.
-
Dual-Band Connectivity – Supports both 2.4GHz and 5GHz wireless bands.
-
4 Spatial Streams – Provides high-capacity wireless performance.
-
Coverage Area of up to 115m² – Ideal for homes, offices, and commercial spaces.
-
Supports 200+ Connected Devices – Designed for high-density environments.
-
2.5 Gigabit Ethernet Uplink – Maximizes network throughput.
-
PoE Powered – Simplifies installation with Power over Ethernet.
-

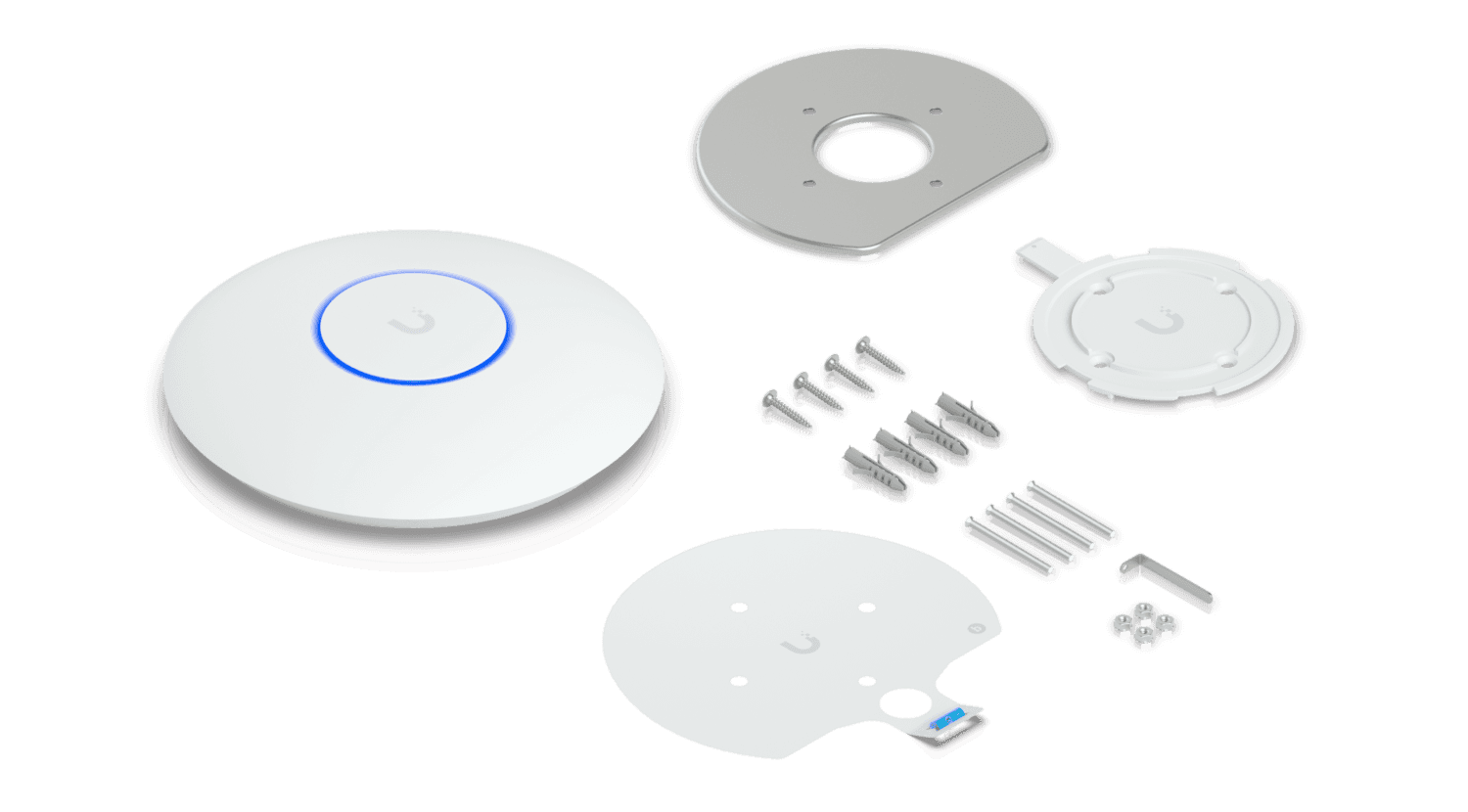

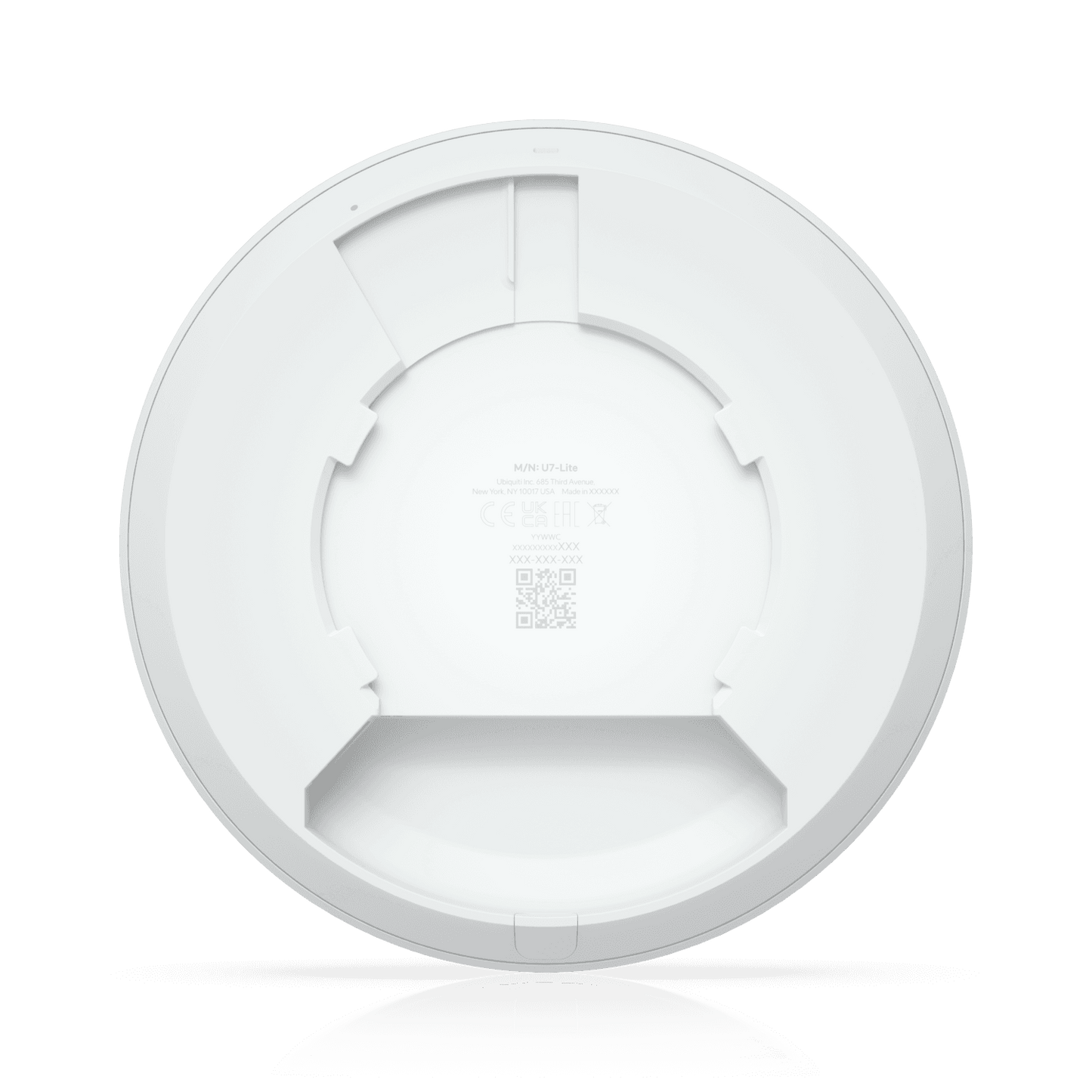

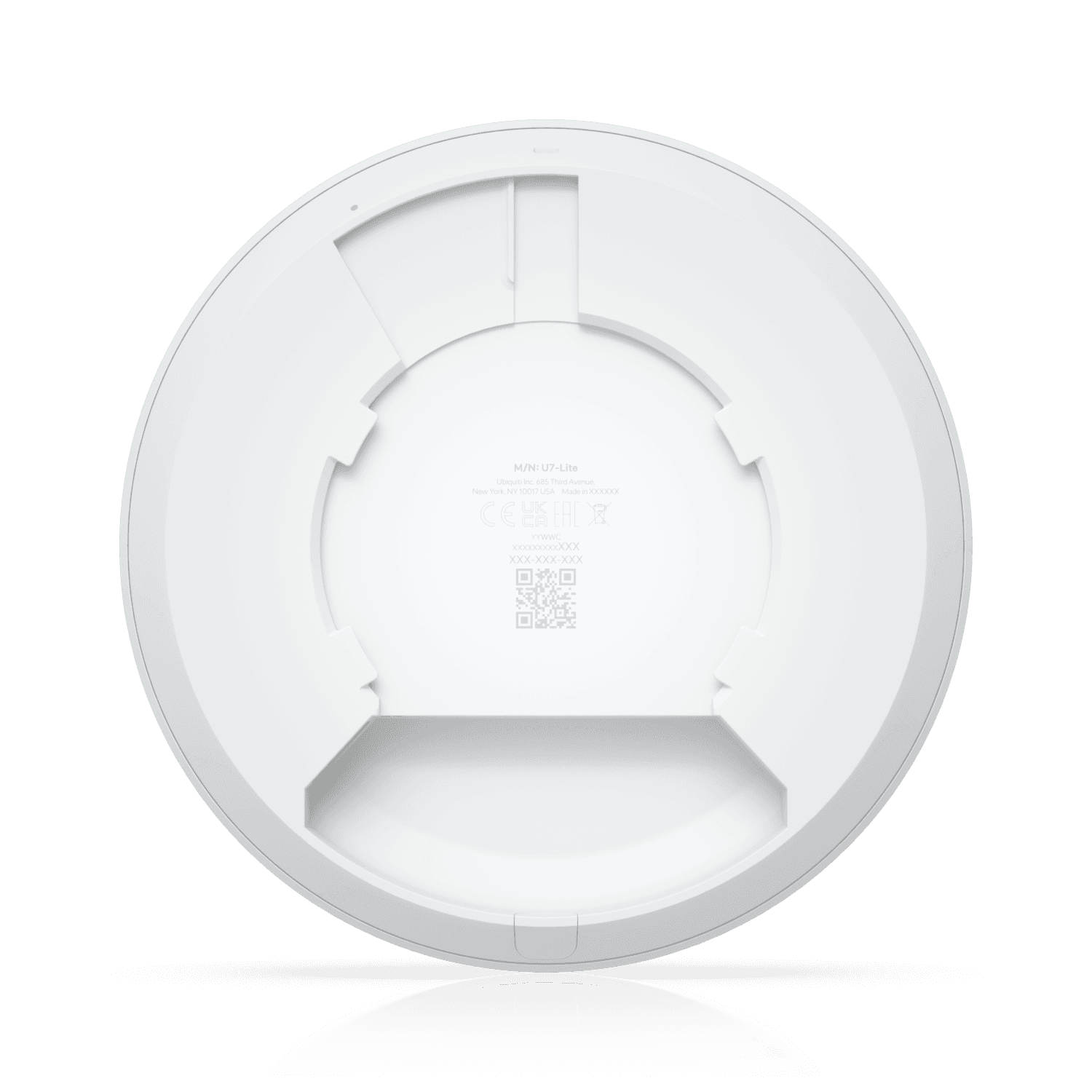

Ceiling or Wall Mounting – Includes Lite mounting bracket.
-
Wireless Meshing Support – Easily expand network coverage.
-
Advanced Security Features – Includes PPSK, RADIUS, VLAN assignment, and guest isolation.
Wireless Performance
-
WiFi Standard: WiFi 7 (802.11be)
-
Spatial Streams: 4
-
5GHz MIMO: 2 × 2 DL/UL MU-MIMO
-
2.4GHz MIMO: 2 × 2 DL/UL MU-MIMO
-
Maximum Data Rate (5GHz): 4.3 Gbps
-
Maximum Data Rate (2.4GHz): 688 Mbps
-
Antenna Gain: 5 dBi (5GHz), 4 dBi (2.4GHz)
-
Maximum Transmit Power: 24 dBm (5GHz), 23 dBm (2.4GHz)
-
Maximum BSSIDs: 8 per radio
Network Features
- Wireless Meshing
- Band Steering
- 802.11r Fast Roaming
- 802.11k Radio Resource Management
- 802.11v BSS Transition Management
- Passpoint (Hotspot 2.0)
- Guest Network Isolation
- Client Device Isolation
- WiFi Speed Limiting
- WiFi Schedules
- Dynamic RADIUS-Assigned VLAN
- RADIUS over TLS (RadSec)
- Captive Portal with Custom Branding
- Voucher and Password Authentication
Hardware Specifications
-

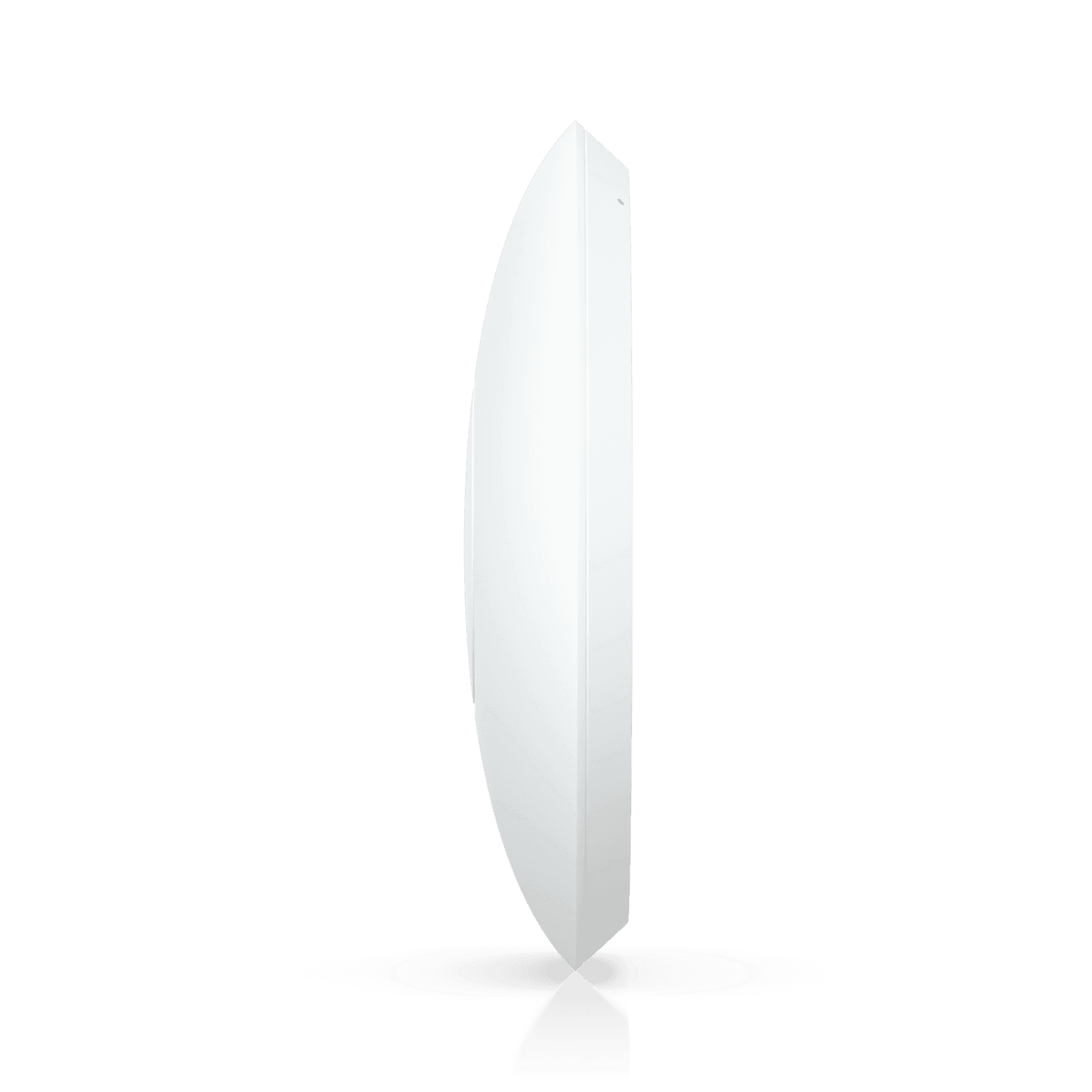

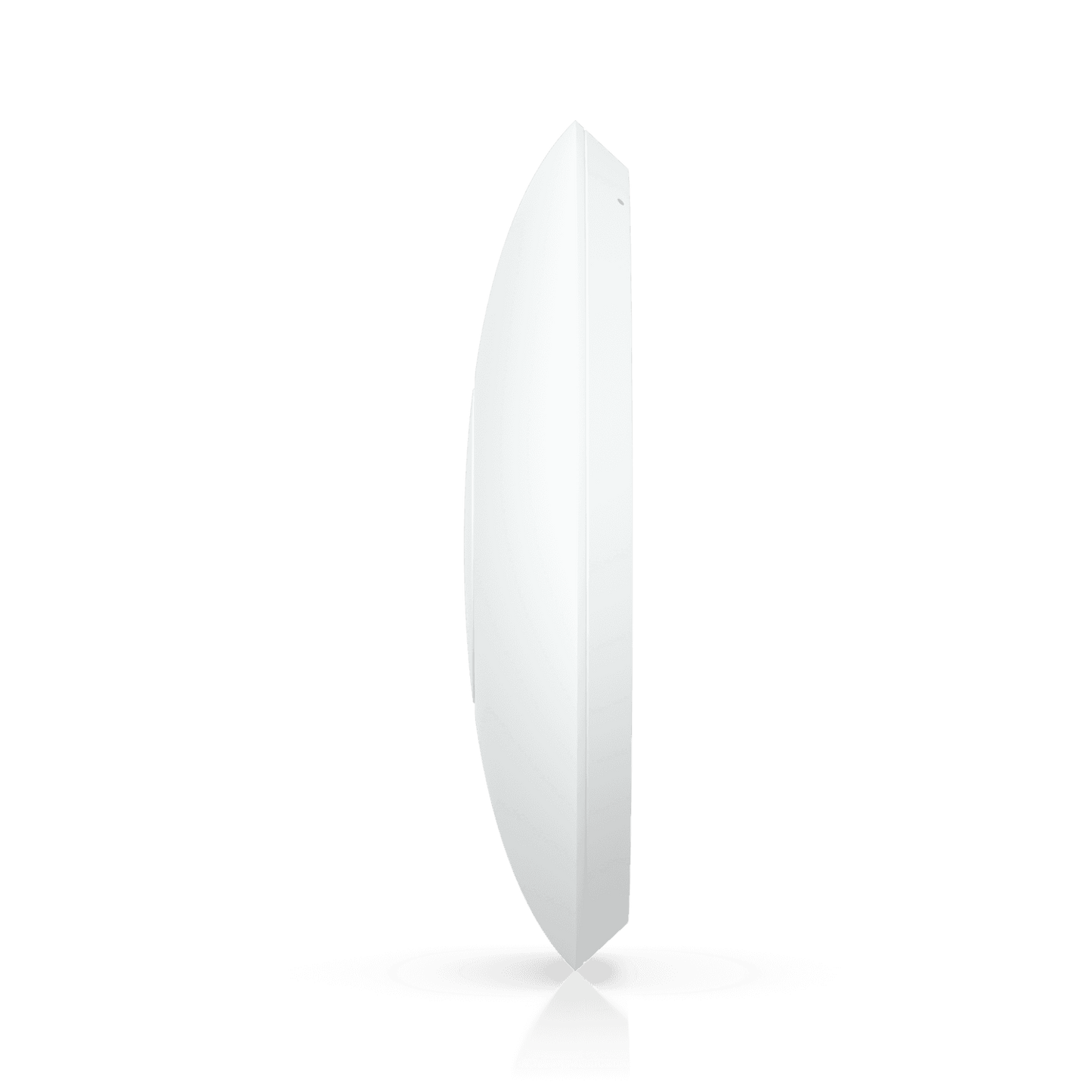

Dimensions: Ø171.5 × 33 mm
-
Weight: 313 g
-

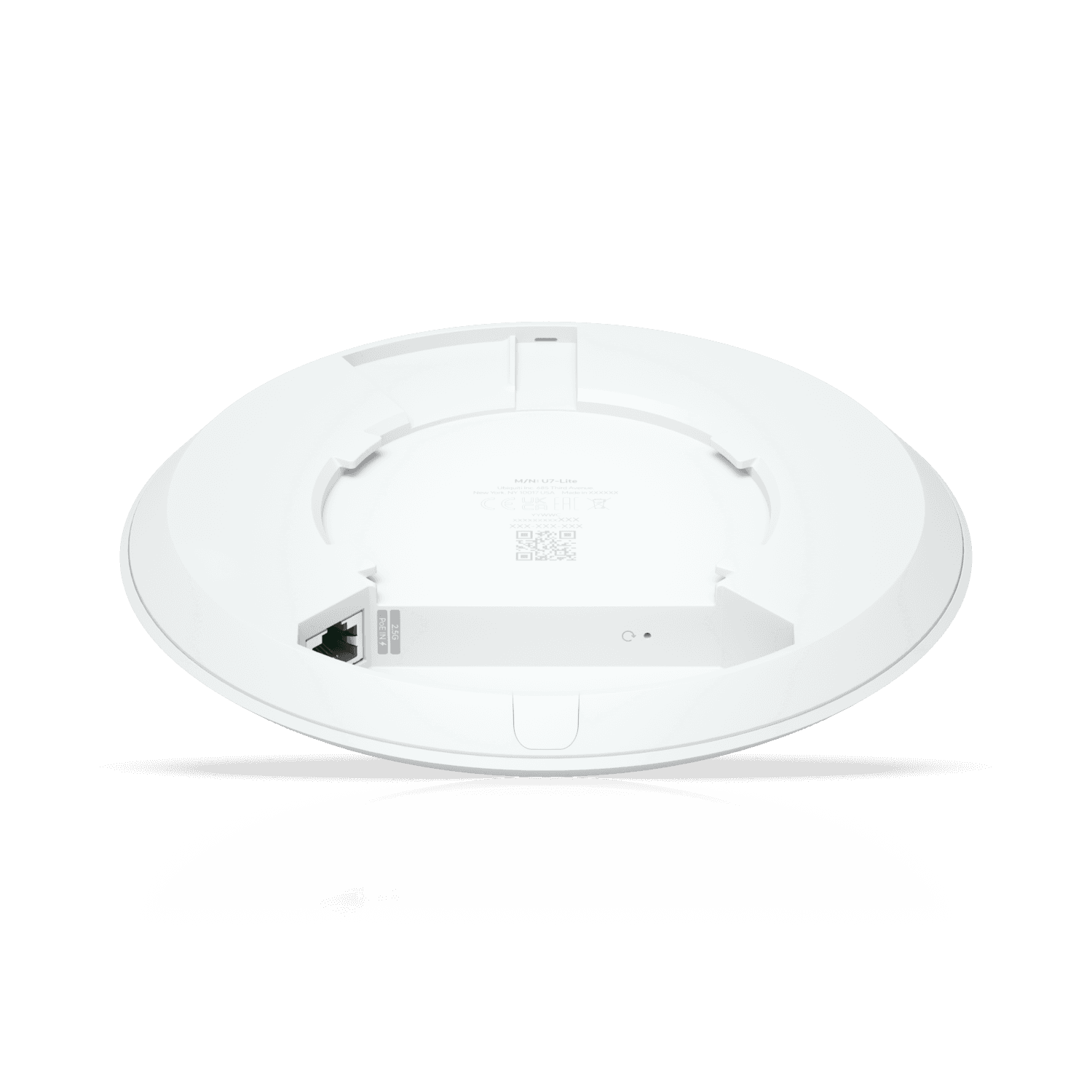

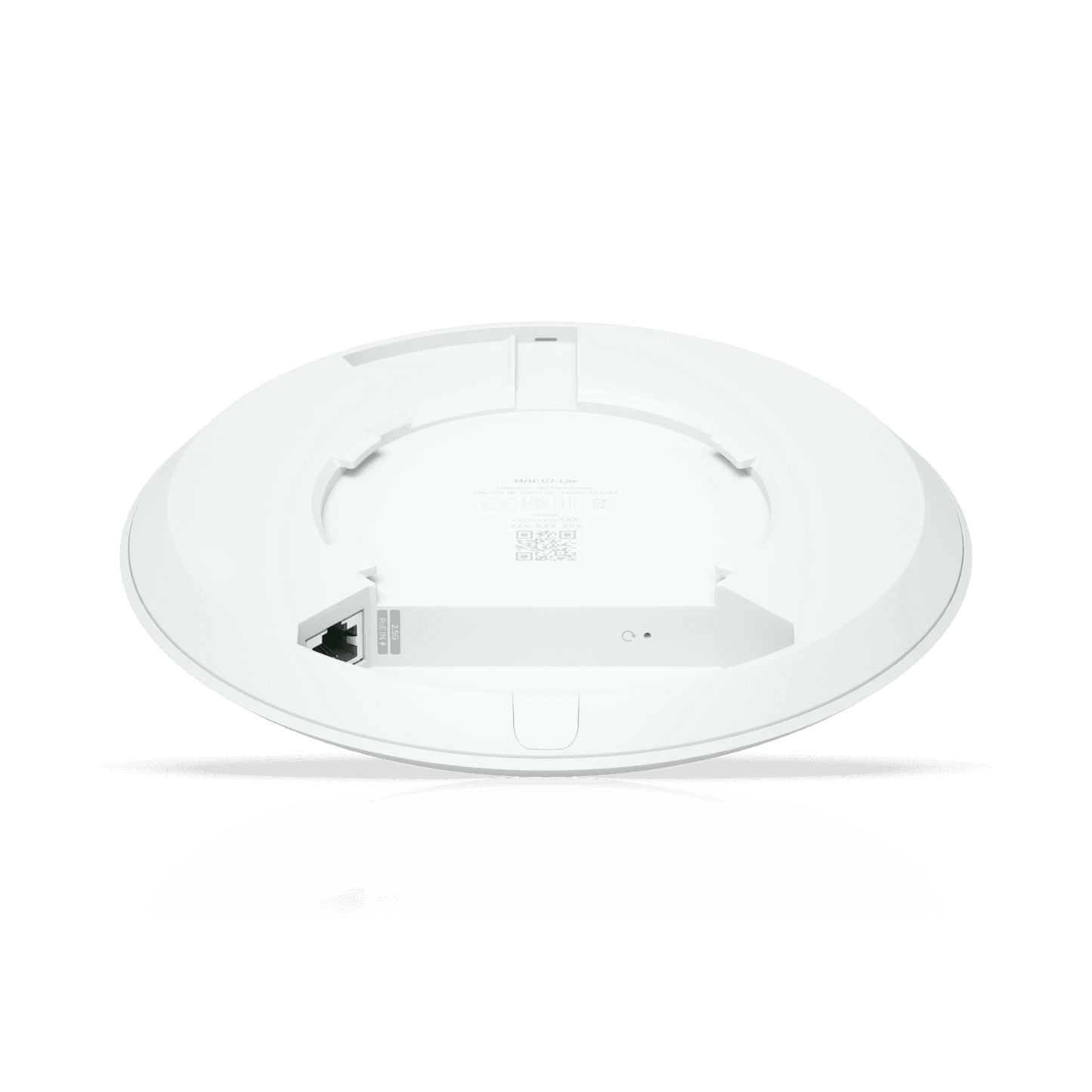

Networking Interface: 1 × 2.5 GbE RJ45 Port
-
Maximum Power Consumption: 13W
-
Supported Voltage: 42.5–57V DC
-
Power Method: PoE
-
Enclosure Material: UV-Stabilized Polycarbonate
-
Mount Material: UV-Stabilized Polycarbonate and Galvanized Steel
-
LED Indicator: White / Blue System LED
Environmental Specifications
-
Operating Temperature: -30°C to 40°C
-
Operating Humidity: 5% to 95% non-condensing
-
NDAA Compliant: Yes
-
Certifications: CE, FCC, IC, SRRC, Anatel
Software Requirements
-
UniFi Network: Version 9.0.114 or later
-
iOS App: Version 10.20.2 or later
-
Android App: Version 10.21.7 or later
Ideal Applications
- Homes and apartments
- Small and medium-sized businesses
- Retail stores and hospitality venues
- Schools and educational facilities
- High-density WiFi environments
- Office and enterprise networks
The Ubiquiti UniFi WiFi 7 Lite Dual-Band Access Point combines cutting-edge WiFi 7 performance, advanced management features, and enterprise-grade reliability, making it an excellent choice for building fast, secure, and scalable wireless networks.
