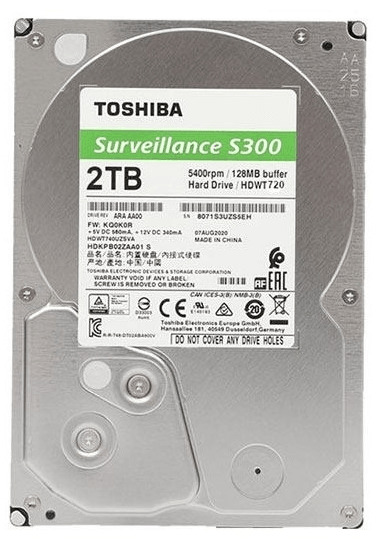

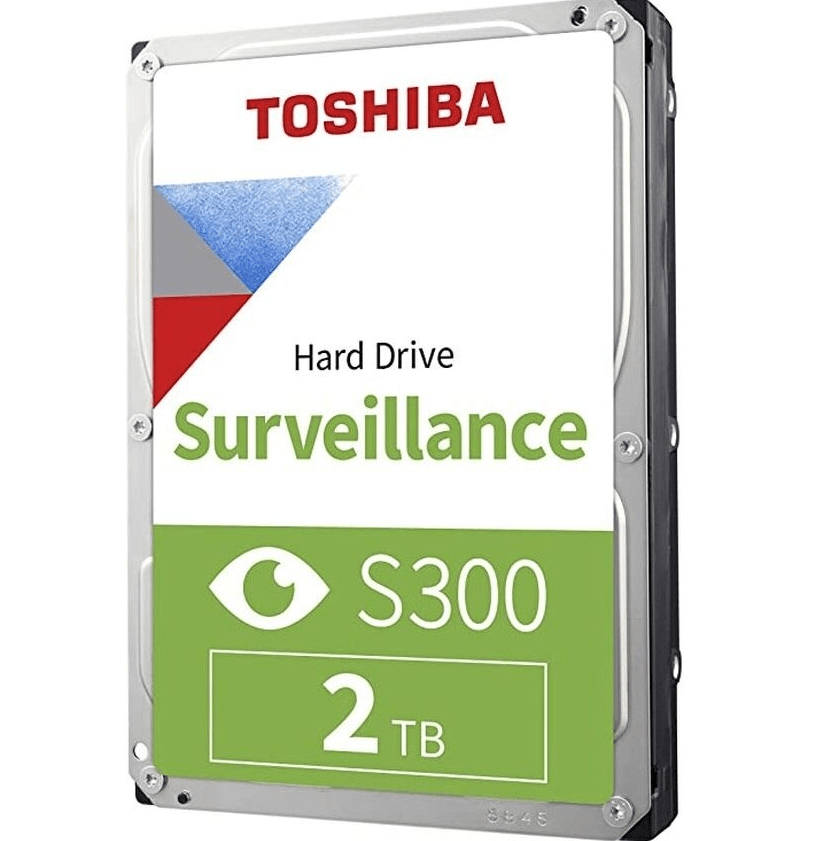

Toshiba S300 Surveillance Internal Hard Drive 2TB - Silver
Always On, Always Watching EMEA Region, Toshiba Storage Solutions – With surveillance systems, nothing but the best is good enough.

The Toshiba 3.5” S300 is built to meet the highest demands. With support for up to 32 high-resolution surveillance video cameras simultaneously and up to 4TB capacity, it brings everything into clear view.

Each S300 is built with the highest-quality components and has passed rigorous tests to ensure 24 x 7 reliability and performance. That’s Toshiba quality you can trust under the harshest working conditions.

Use for:
-Surveillance Digital Video Recorders (sDVR)
-Surveillance Network Video Recorders (sNVR)
-Hybrid sDVR (analog and IP)
-3.5" SATA Hard Drive
-5400 rpm
-128MB buffer
-24/7 operation
-Supports up to 32 video cameras
High reliability and enhanced real-time performance
-Toshiba Dynamic Cache Technology
-Toshiba Stable Platter Technology
-High-endurance design
-3-year warranty

Basic Specifications:
-Form factor 3.5”
-Interface 6.0 Gbit/s
-Number of cameras supported 32
-Drive bays supported 1 to 8
-Rotational Vibration (RV) Sensors Yes (HDWT140UZSVA)
-RAID supported (HDWT140UZSVA)
-Advanced Format (AF) Yes
-RoHS compatible Yes
-Halogen Free Yes
-Shock Sensor Yes
-Recording Technology SMR: HDWT720UZSVA

Performance:
-Rotational speed 5,700 rpm
-Max. data transfer speed (sustained) 184MB/s Typ. (2 TB SMR)
-Buffer size 128 MB (2TB)
-Average latency 5,56 ms (2TB)
-Native Command Queing (NCQ) supported

Reliability:
Workloads 180 TB/year (2TB SMR)
-MTTF 1,000,000 hours
-Unrecoverable error rate 1 per 10E14 bits read
-24/7 operation Yes
-Load / Unload Cycle 600,000
-Limited warranty 3 years

Environmental:
Acoustics (idle mode) 21 dB typ. (2 TB SMR)
Shock (non-operating) 2TB SMR: 350 G / 2ms duration
Shock (operating) 70 G / 2ms duration
Vibration (non-operating) 29.4 m/s2 {3.0 G} (5 to 500 Hz)
Vibration (operating) 2TB SMR:
0.50 G (5 to 350 Hz)
0.25 G (350 to 500 Hz)

Power Management:
Consumption - Active Idle 2.08 W typ. (2TB SMR)
Consumption (operating) 4.01 W typ. (2TB SMR)

Physical
Weight (approx.) 440 g max. (2TB SMR)
Dimensions 147 (L) x 101.85 (W) x 26.1 (H) mm
