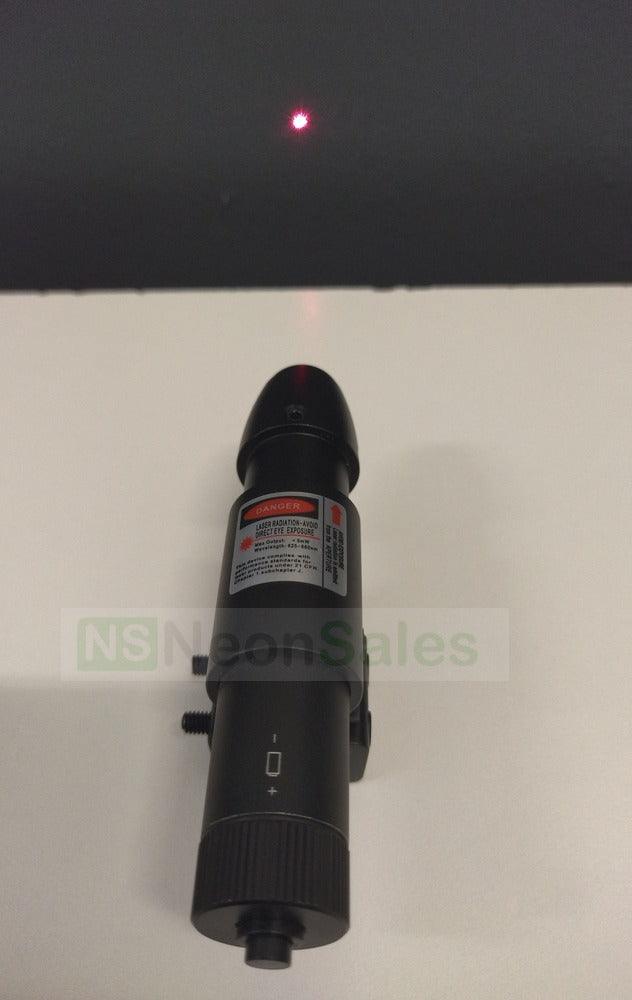

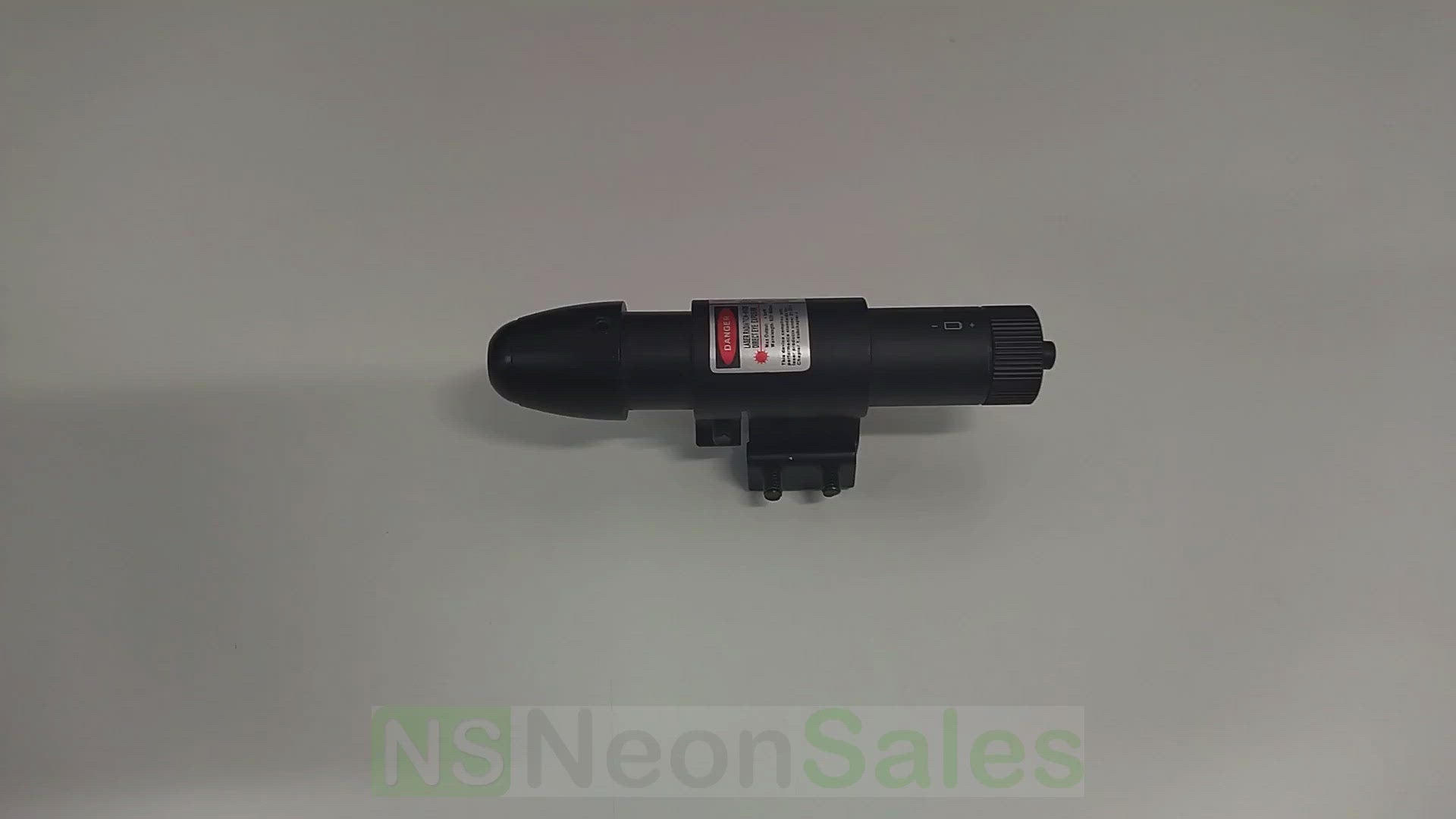

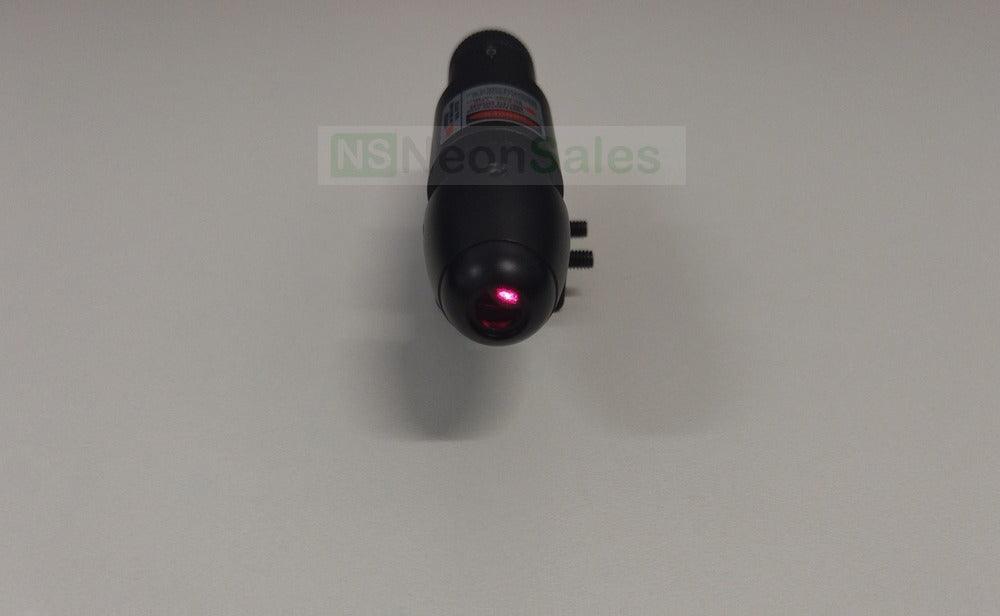

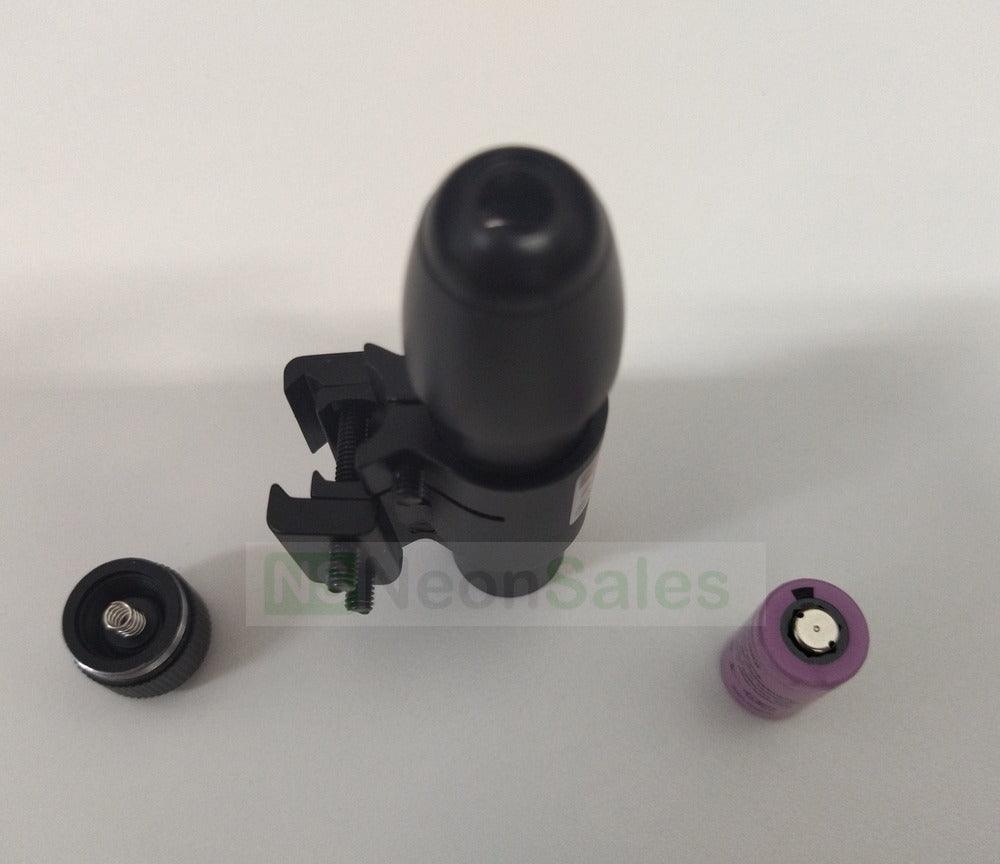

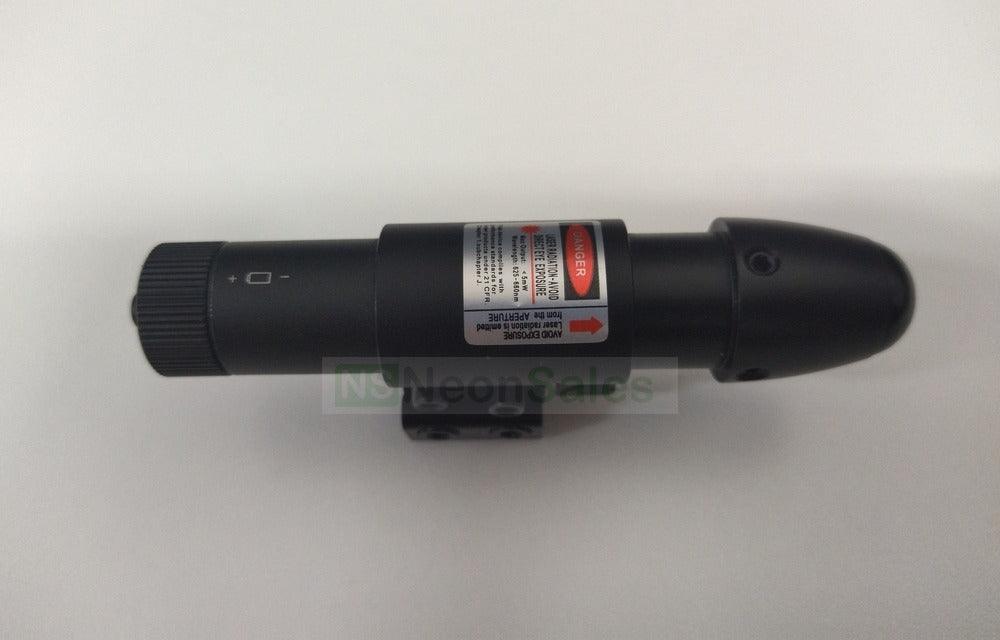

Tubular shaped module that produces a red dot, which is both adjustable for windage as well as elevation. It is manufactured completely from aluminium and is black anodized. The tail end has a battery / polarity indicator, to ensure that the CR2 battery you insert, would be the right way around.
The tail end has a removable cap which threads on/off w/ a press-switch. It is also perpendicularly serrated for better finger traction.

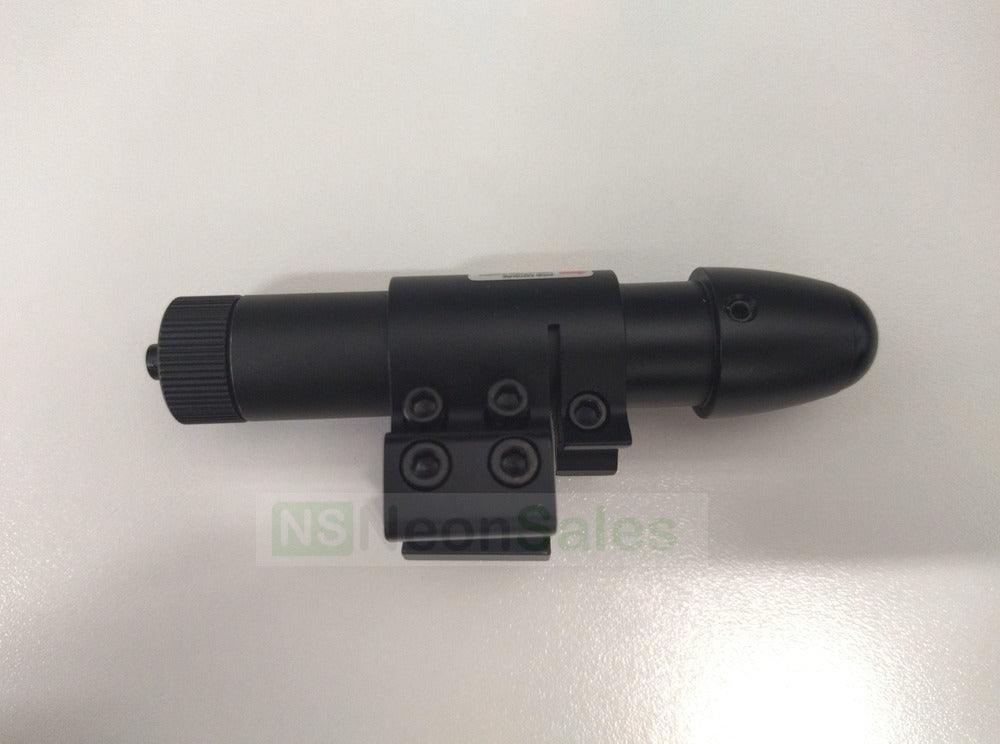

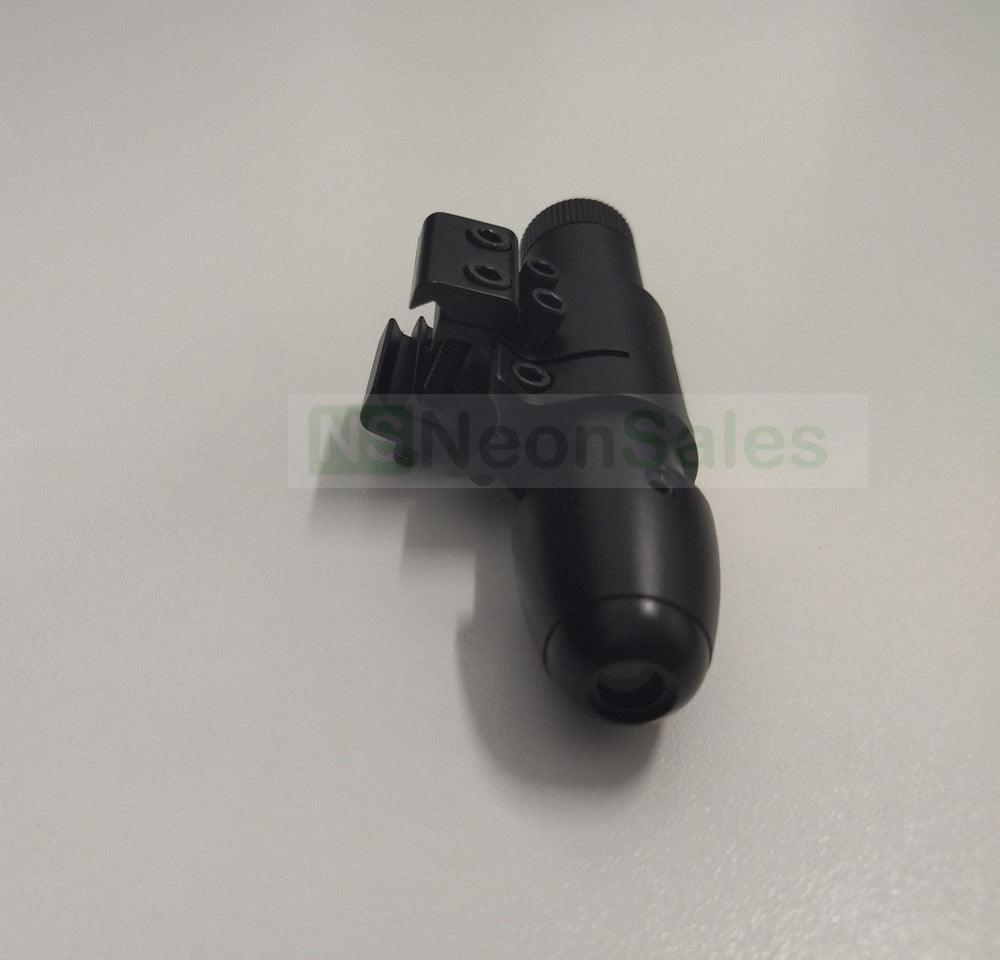

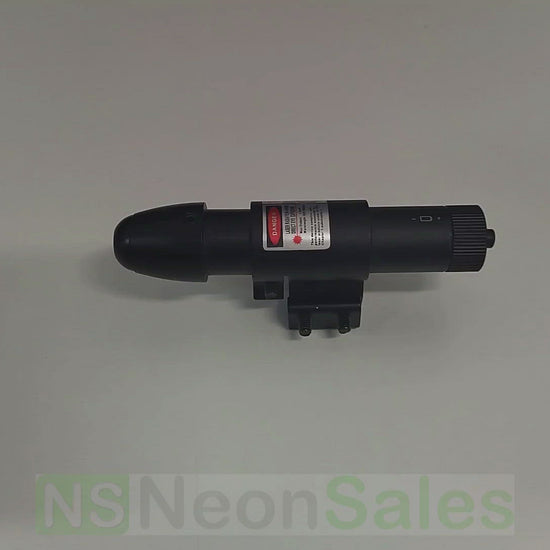

Out of the box, this comes w/ the Picatinny rail clamp attached, which does not feature a crossbolt, which usually is necessary in recoiling applications. However, for airsoft, paintball and recoilless air rifle shooting, this module should be fine.
The bracket itself btw, is also anodized aluminium. Upon closer inspection you'll notice that the Picatinny clamps do come off, to allow for dovetail (9-11mm) mounting, which is a neat surprise.

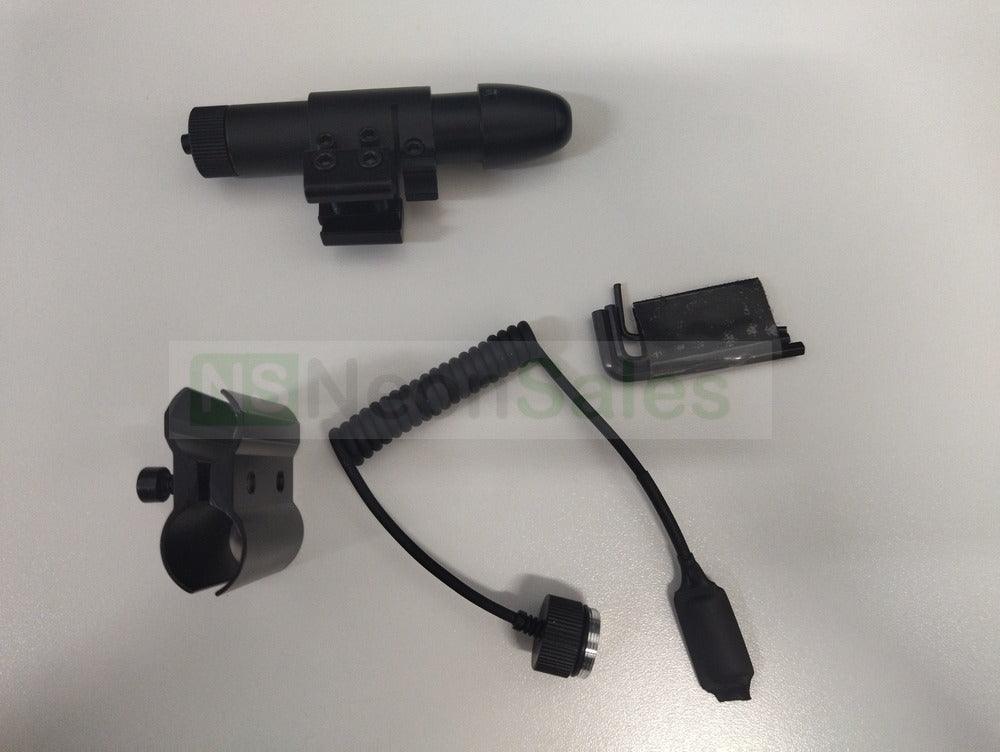

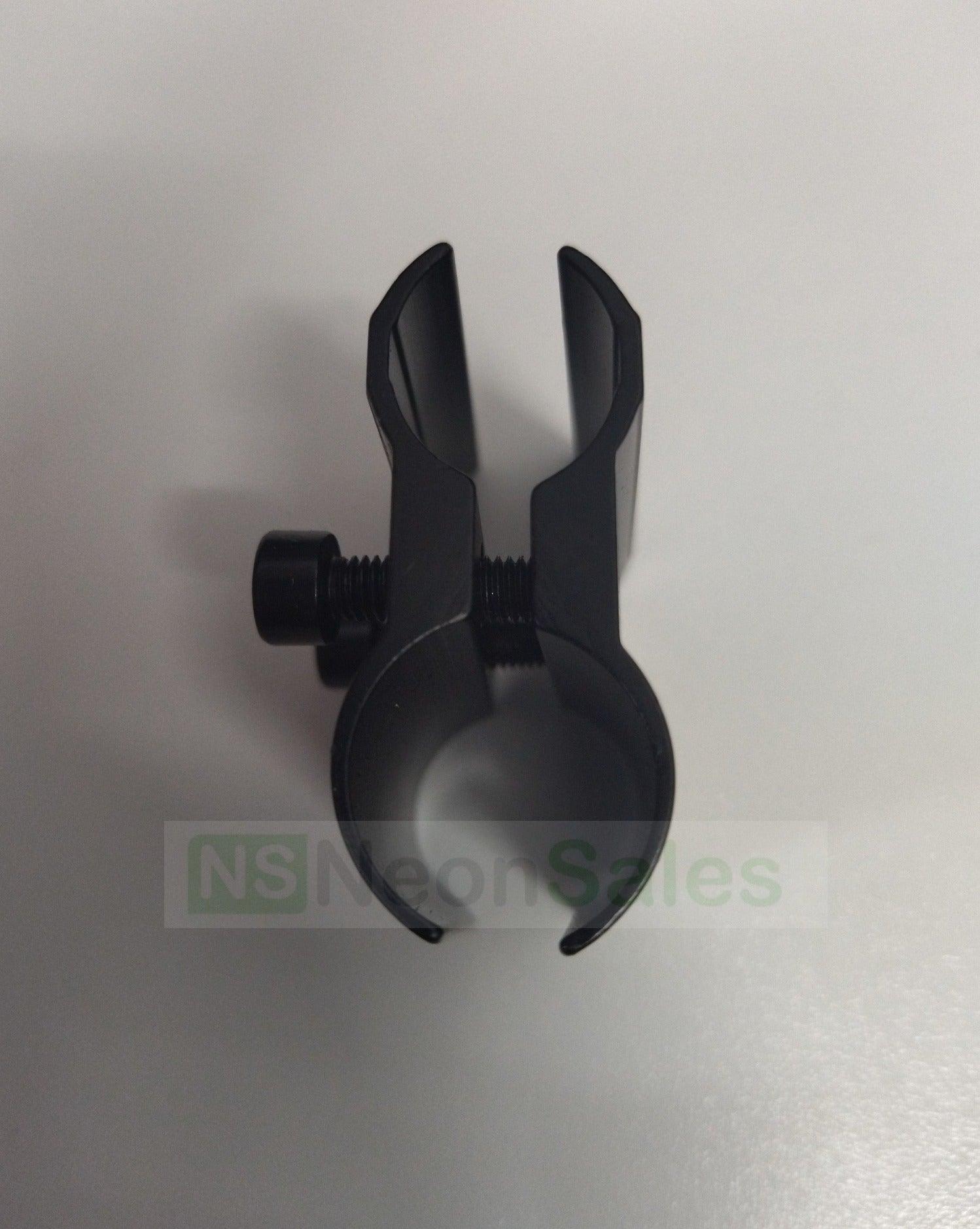

Also included in this package, you'll receive a barrel-mounting bracket which affixes by means of two steel socket head screws, though for this application, we recommend using a lap or two of insulation tape to minimize metal-on-metal contact.

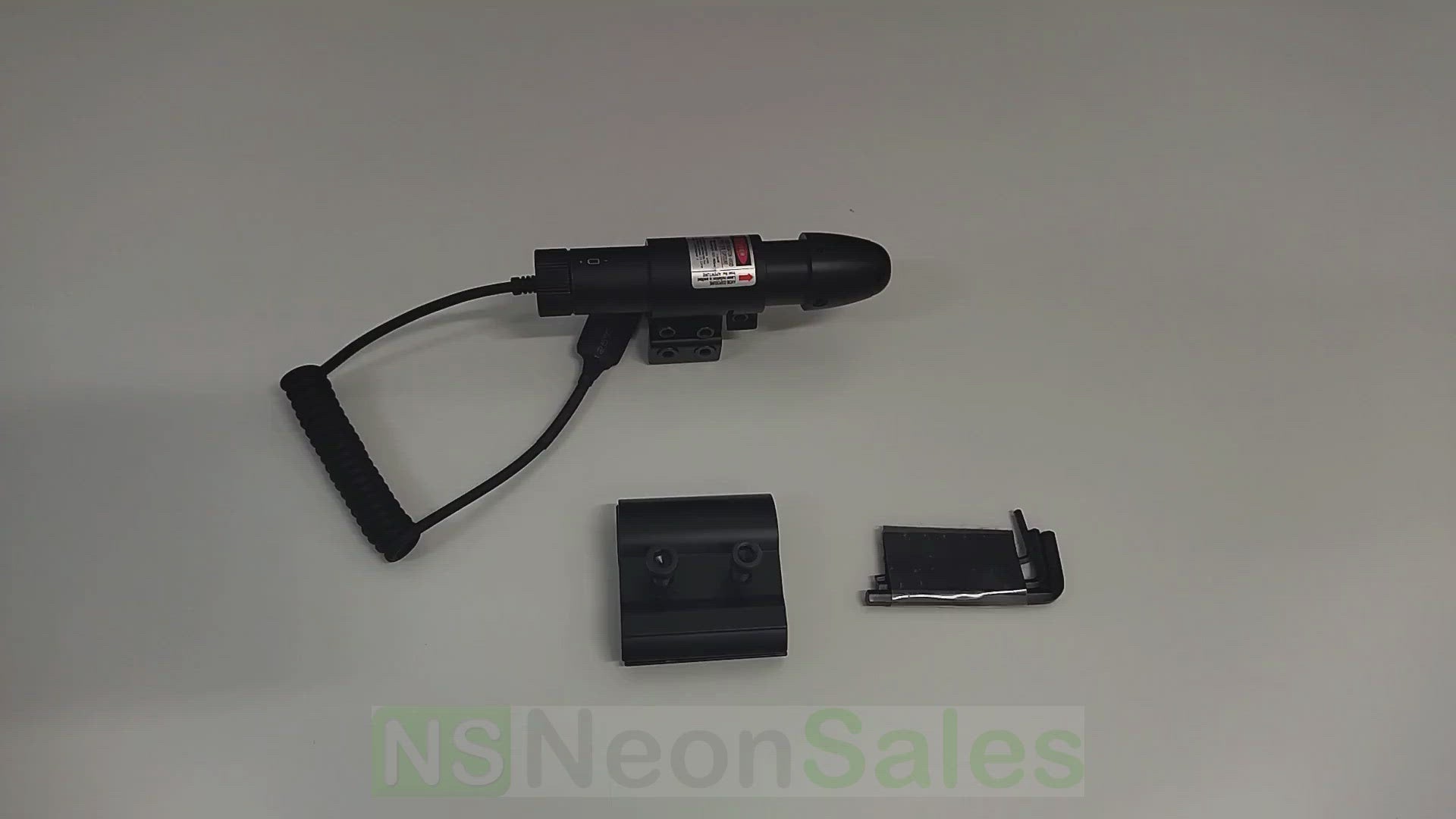

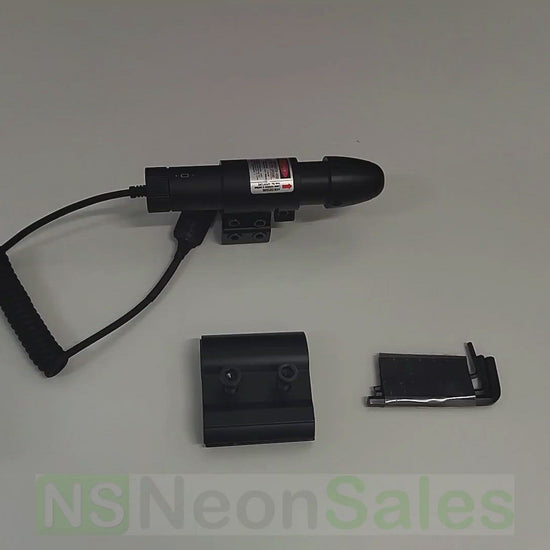

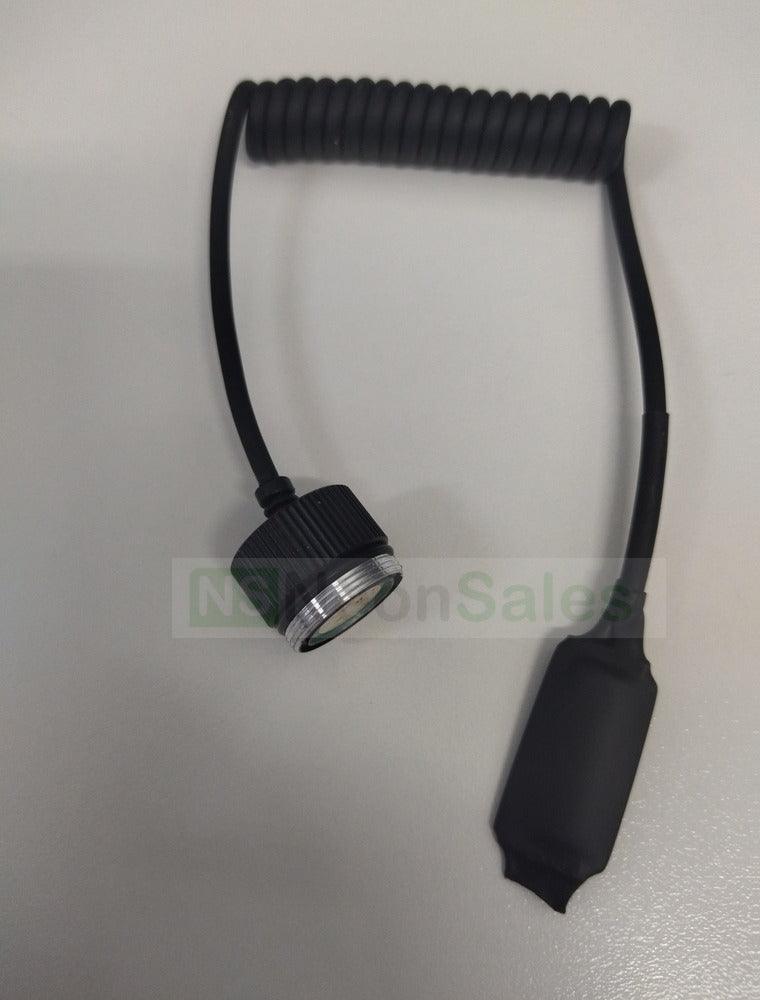

There is a remote coil switch w/ two-point pressure pad, which, once pressed, closes the circuit for the laser pointer, allowing for easily-accessible momentary activation. The coil should be able to handle prolonged stretching and this unit swops out w/ the tail switch.
a CR2 battery comes included, though like any batteries packaged, we do not guarantee that they function / will have much charge left.
You'll also receive a set of three steel allen keys, which cvan be used to manipulate all the included fasteners.
All of this, comes pre-packed in a modest flat rectangular white carton box, lined out w/ lower density profile-cut foam for all the included components.
Technical Specifications
Length Of module; Of Rail clamp; Of Barrel mount adapter; Of remote line;
|
102mm 22mm 42.92mm 260mm (elasticates to 480mm)
|
Diameter Of module
|
18.95mm
|
Material composition
|
Anodized aluminium
|
Weight Of module w/ Rail mount; Of Barrel mount adapter;
|
75 g 32.41 g
|
Power source
|
1x CR2 battery, 3V
|
Allen keys included
|
2mm, 3mm & 4mm
|
Laser colour
|
Red, dimmer intensity
|
