TIPPMANN / EMPIRE IN-LINE BOLT O-RING KIT

R 170.00
Unit price  per
history

Guaranteed safe & secure checkout

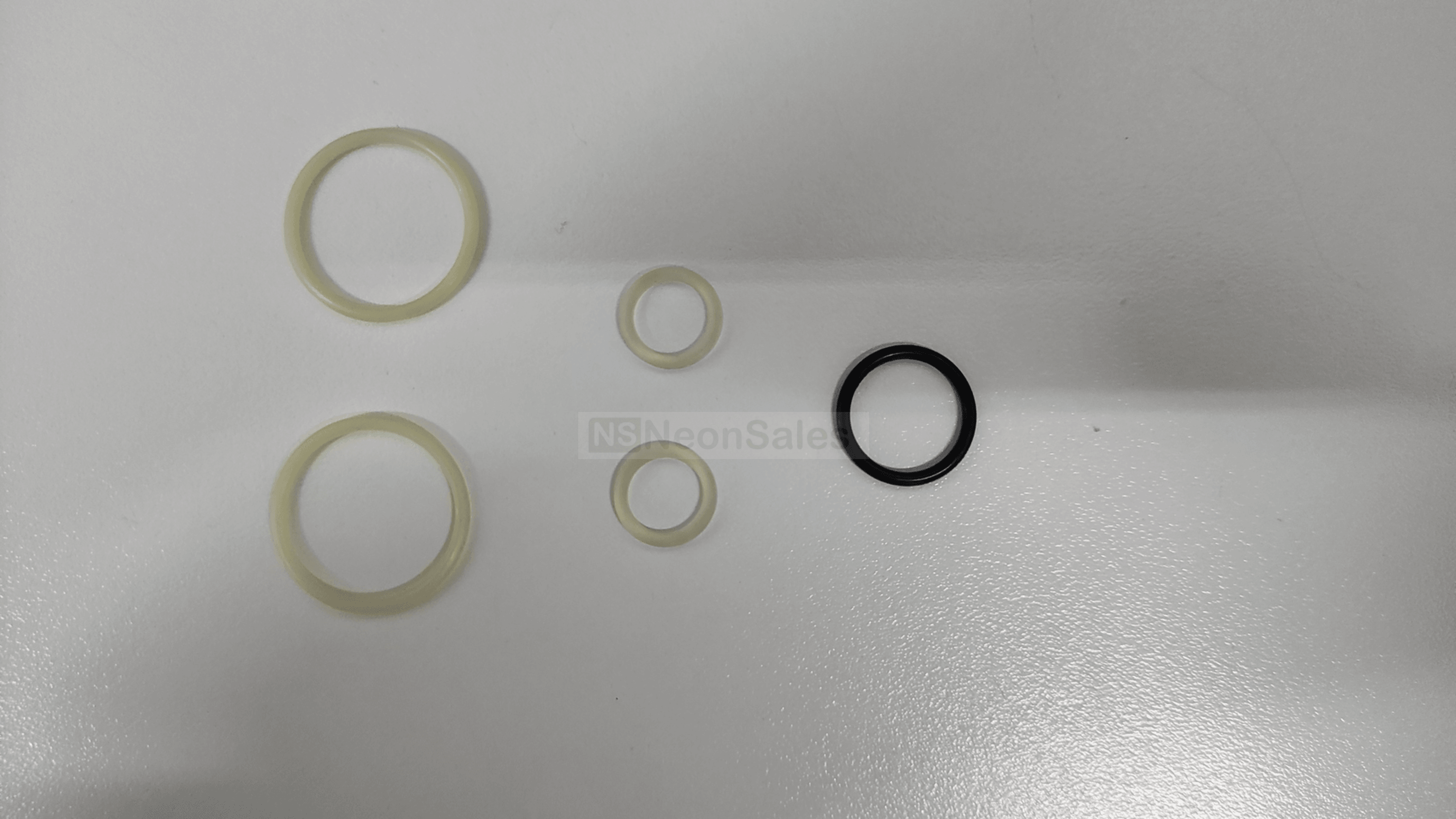

O-ring kit for your TIPPMANN in-line bolt system markers. Most of these markers use the exact same in-line double stage bolt system, so the parts are cross-compatible and likewise, the O-rings will fit them all. Though, for those unsure, please consult the list underneath;

  • TIPPMANN SIERRA ONE
  • TIPPMANN BRAVO ONE
  • TIPPMANN CUSTOM 98 (PLATINUM)
  • TIPPMANN TMC (ELITE)
  • TIPPMANN STORMER (BASIC, TACTICAL, ELITE)
  • TIPPMANN CRONUS (BASIC, TACTICAL)
  • TIPPMANN A-5
  • EMPIRE BT4 COMBAT, DELTA, OMEGA, SLICE

***

 Please have a look at the table hereunder - it will help with troubleshooting on your marker and potentially help you to not waste your O-rings. We don't recommend replacing an O-ring, if it is not faulty.

Qty

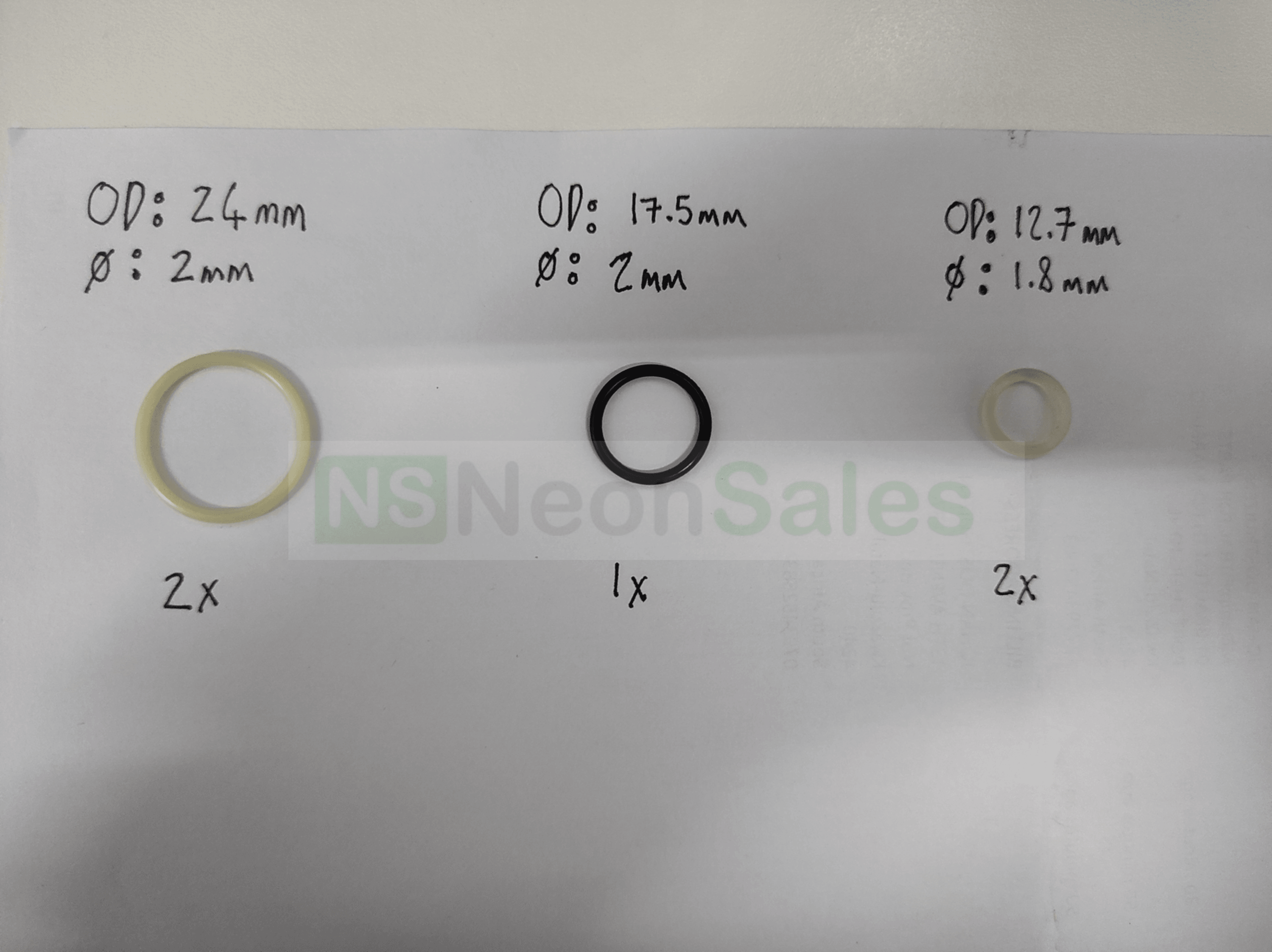

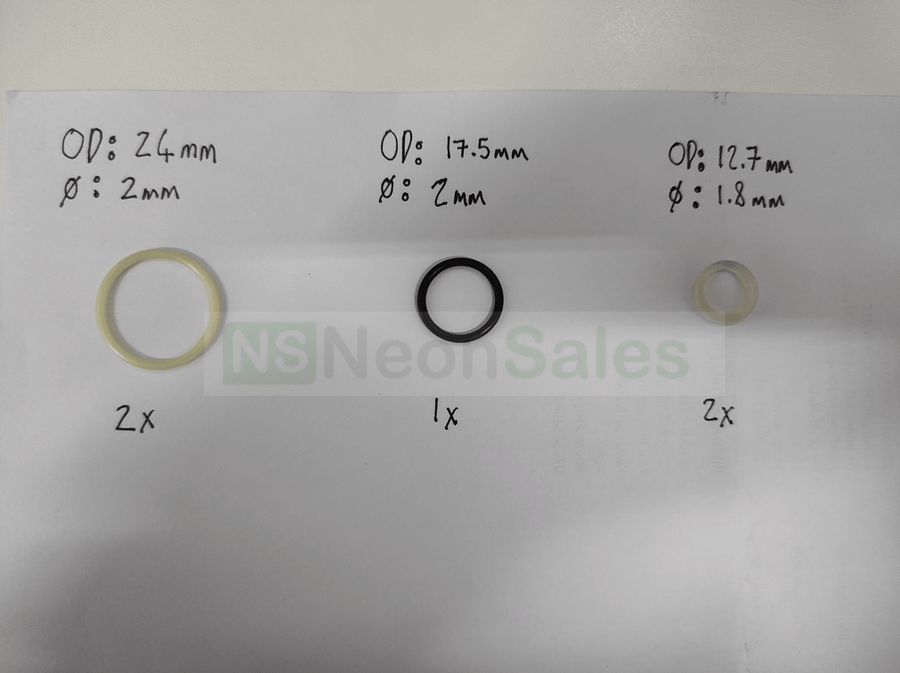

O-Ring by dimensions

Composition

Installation

Symptom of failure

2x

OD: 24mm, ø: 2mm

PTFE

1. Installs on the Complete Valve Assembly hull, 2. as well as the rear bolt.

1. Gas will leak out around the hull per shot fired, resulting in improperly/ ineffectually directed blowback force. 2. The rear bolt will not create a gas-tight seal just as it strikes the valve pin, resulting in the marker being unable to fire semi-automatic, similar to how a marker would fire when the CO2 tank is low on pressure.

1x

OD: 17.5mm, ø: 2mm

NBR

Not perfectly sure at the time of posting, presumably around the plastic front bolt

In this case, it would fail to prevent the gas from redirecting backwards, as it comes through from the power tube, through the front bolt. This would just cause a loss of muzzle velocity / waste of gas and pointless carbon fouling of the sleeve, that brings about its own set of operating complications.

2x

OD: 1", ø: just about 5/64"

Urethane

This fits onto the brass piston.

The gas will start leaking through the barrel, the moment you pressurize the marker





Most dimensions on these markers are imperial / SAE, although we've found that these work perfectly and are well suited for the rigors of pressurized CO₂, sometimes liquefied CO₂ too! They are locally manufactured and do outperform Chinese / Fong-Kong O-rings easily. Please use a proper set of O-ring picks to install/remove O-rings - it will make your life much easier. IT SHOULD go without saying that improper installation / handling of O-rings are not covered by warranty.

Be sure to use lubricant as well. We stock SINGER ALL PURPOSE OIL - 80ML, which we use ourselves and recommend highly. Each O-ring will have to be lubricated prior to installation. Apply silicone grease over threads if you are concerned that they might cut / damage the O-ring.

***

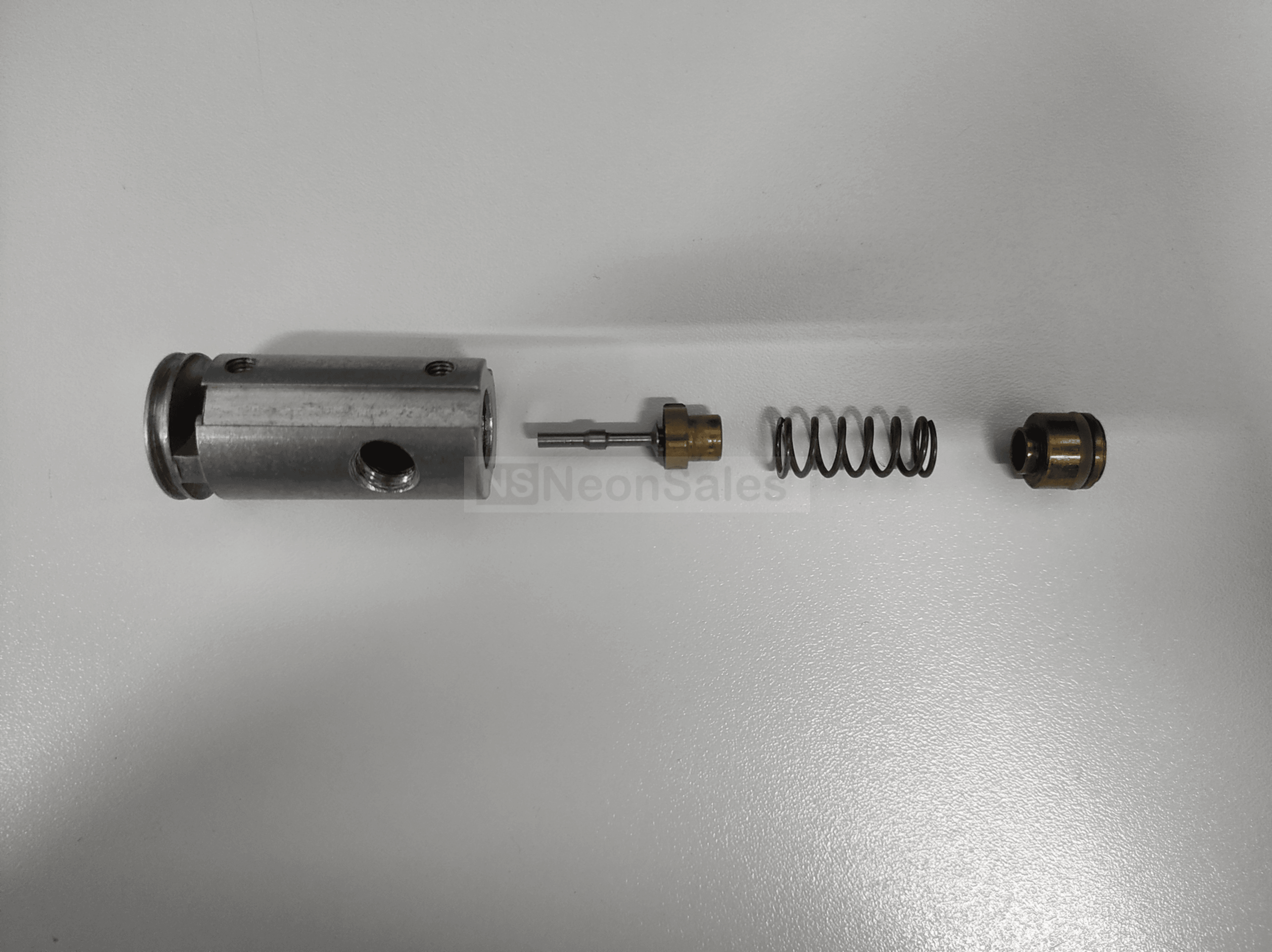

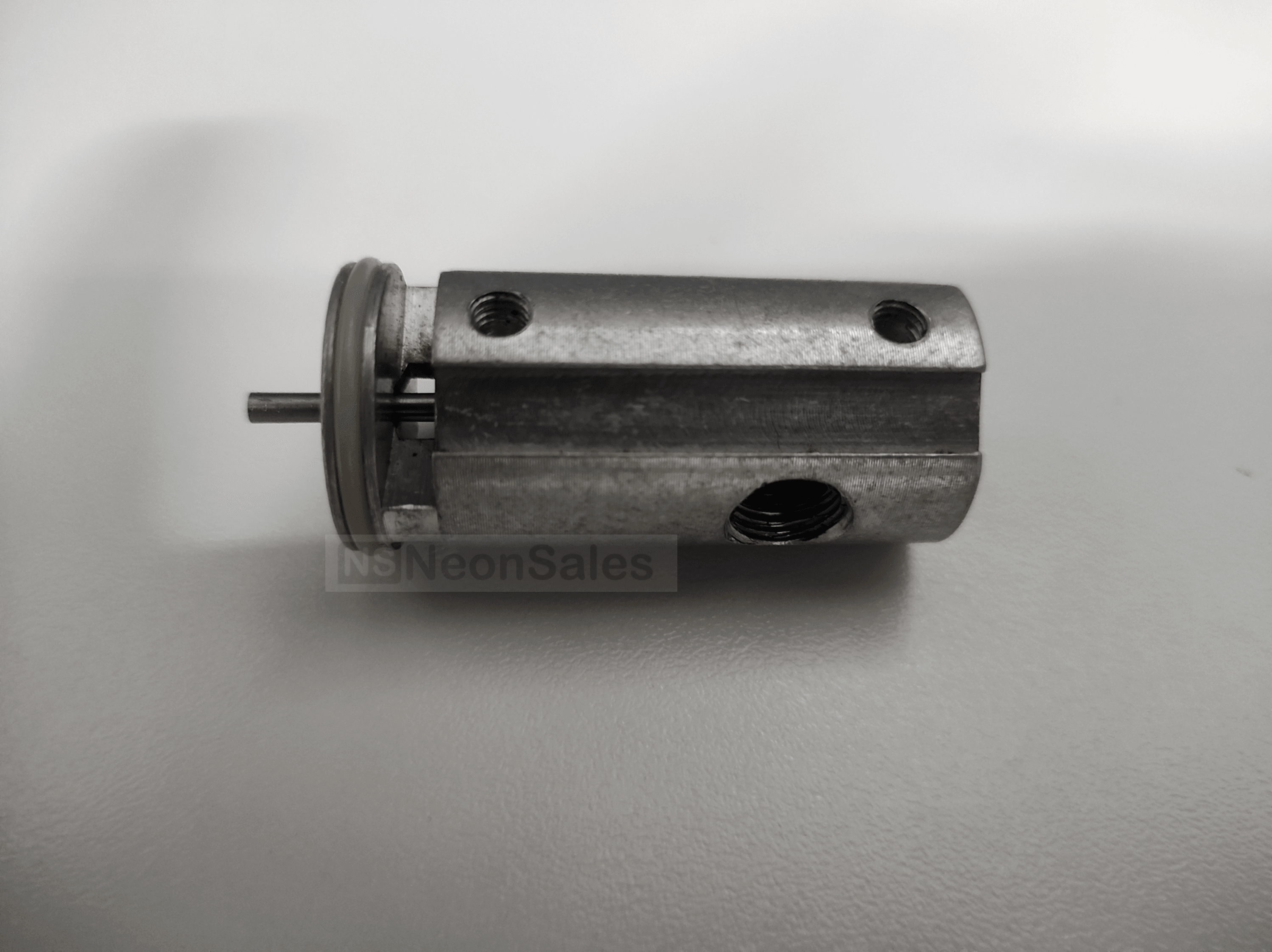

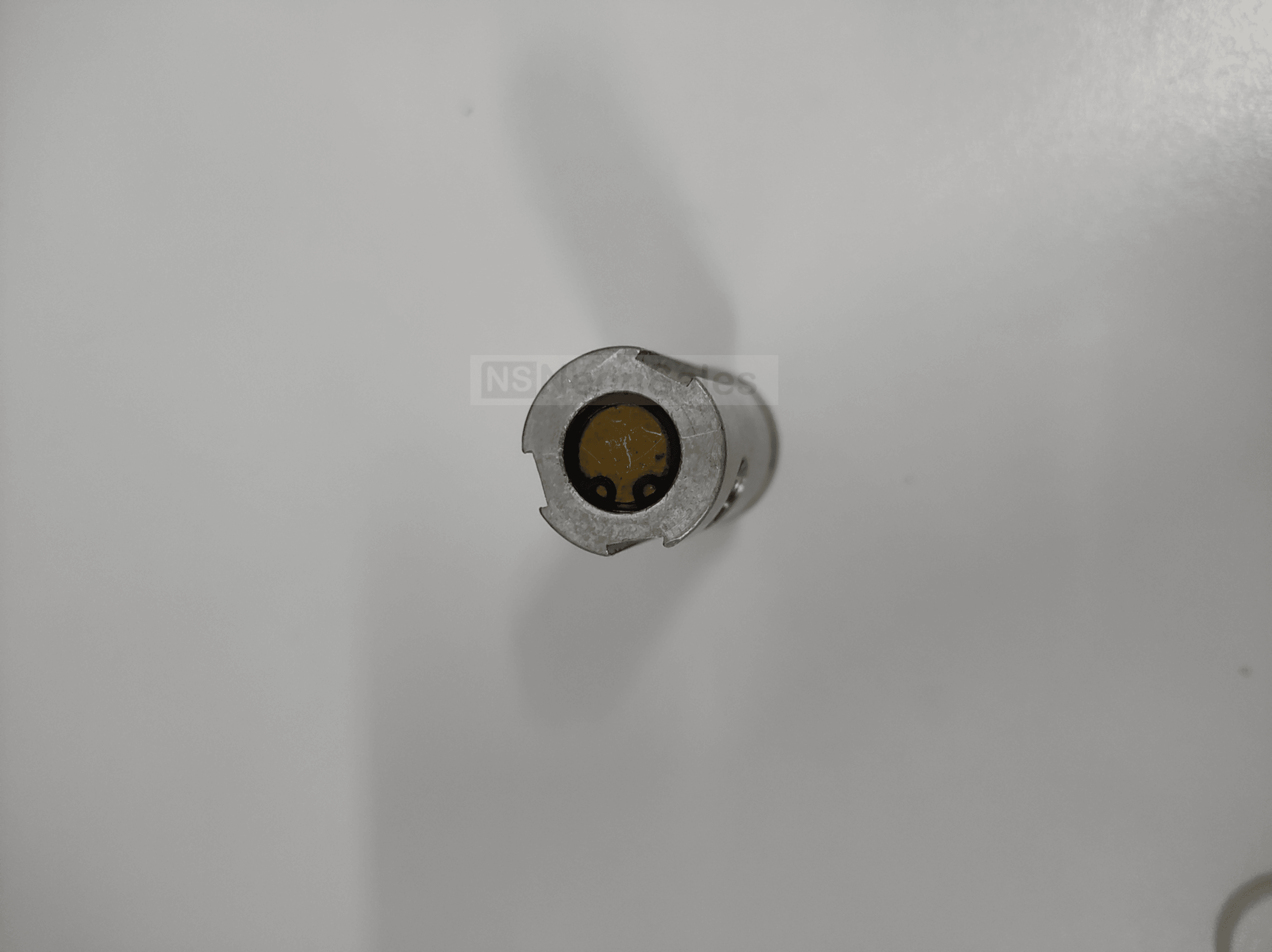

These are for your Complete Valve Assembly - that business hiding inside the plastic power tube, that can only be accessed by threading off the braided line (if the hose is running externally) or disconnect the stainless steel gas line. The newer iteration of markers we noticed, uses a female o-ring inset, which said gas line merely 'plugs' into, negating the need for 2 or 3 laps of PTFE tape on the threading, like on your older school markers - just for interest's sake.

Also note that some markers w/ a "TPN" label on their receivers, might have a key-ring looking coil of spring steel locking the complete valve assembly, specifically preventing the brass piston from coming out. This you'll need some crocodile nose plier for or something similar to make a plan with. Don't worry about damaging it - it will be thrown away afterwards - You can replace it with a circlip. Just be sure to have the appropriate pliers on hand too. To disassemble this however, please see the video below - that piston is under spring load and could shoot you in the face if not careful!

These O-rings are not instended for use on paintball tank bottle heads. If you need those, please search on our listing;

  • URETHANE O-RINGS FOR PAINTBALL TANK VALVE - 10'S

Please see the video hereunder for a guided walk-through on disassembling the power tube and valve assembly.
