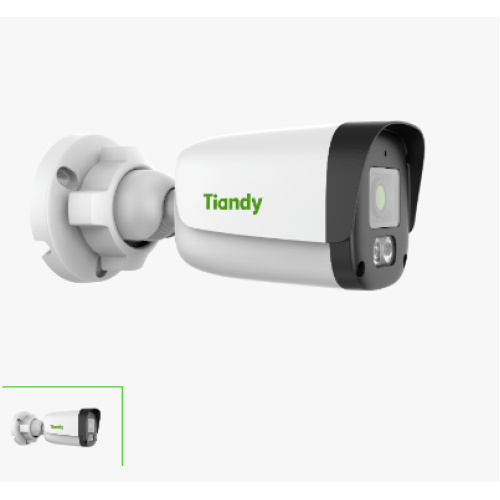

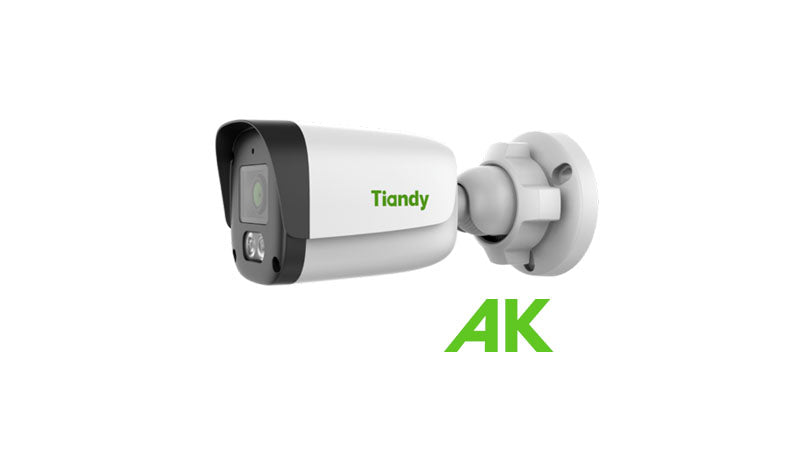

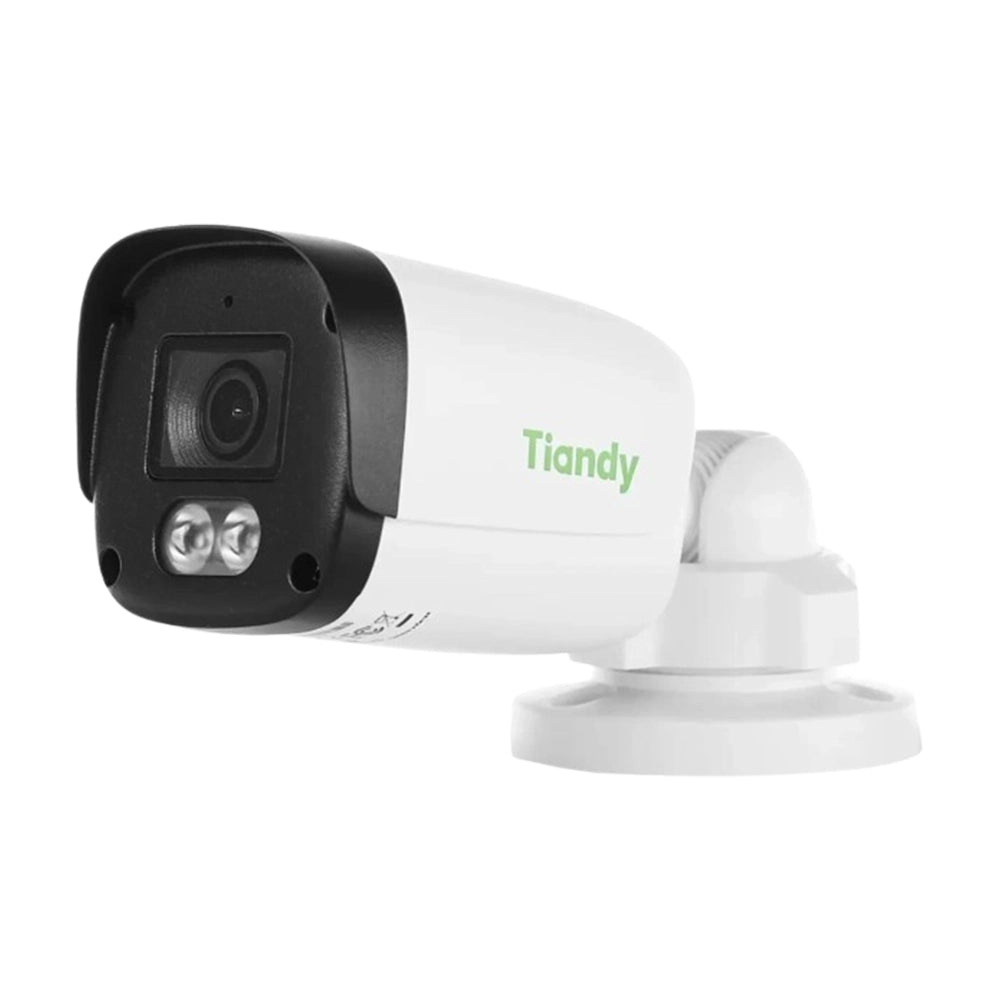

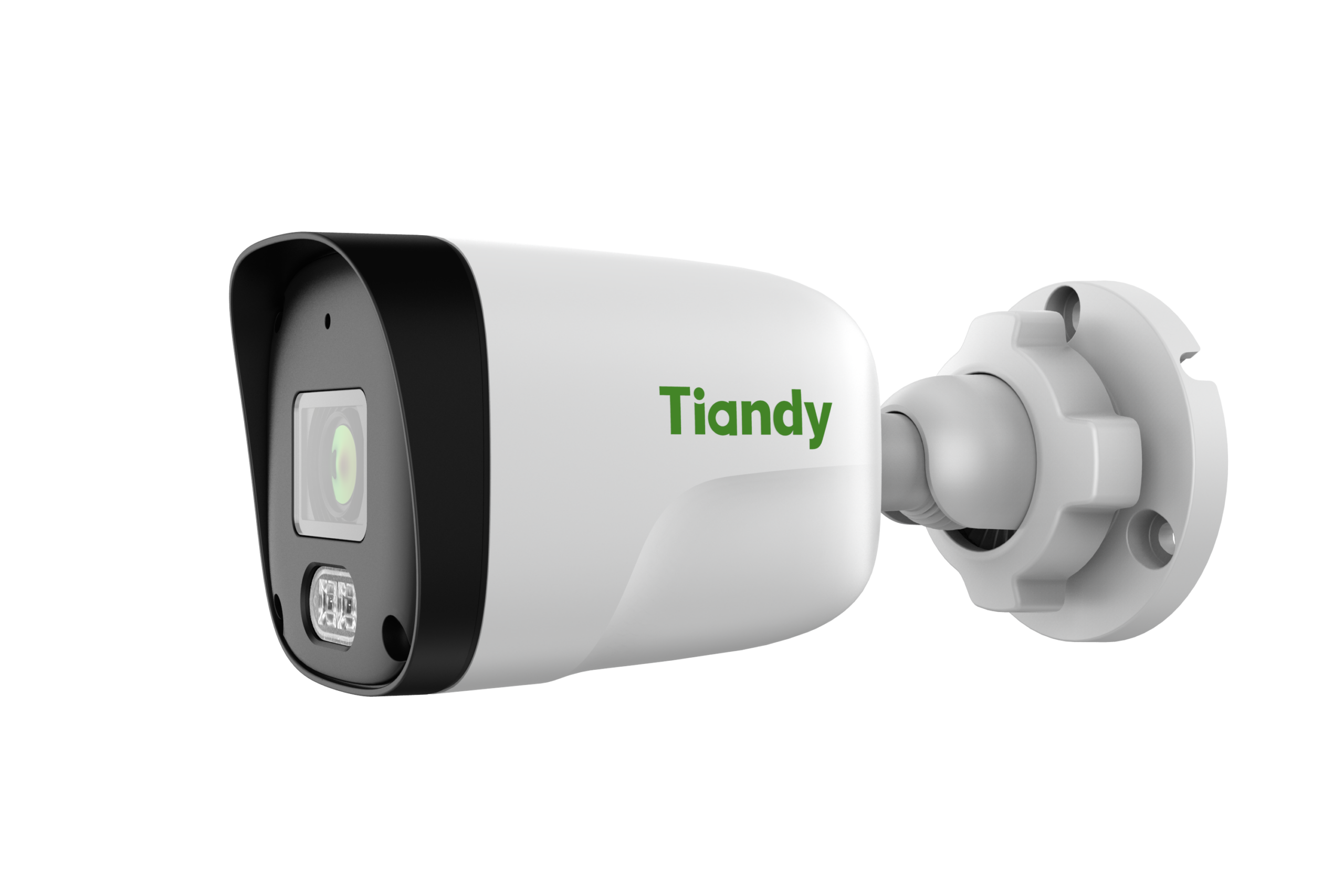

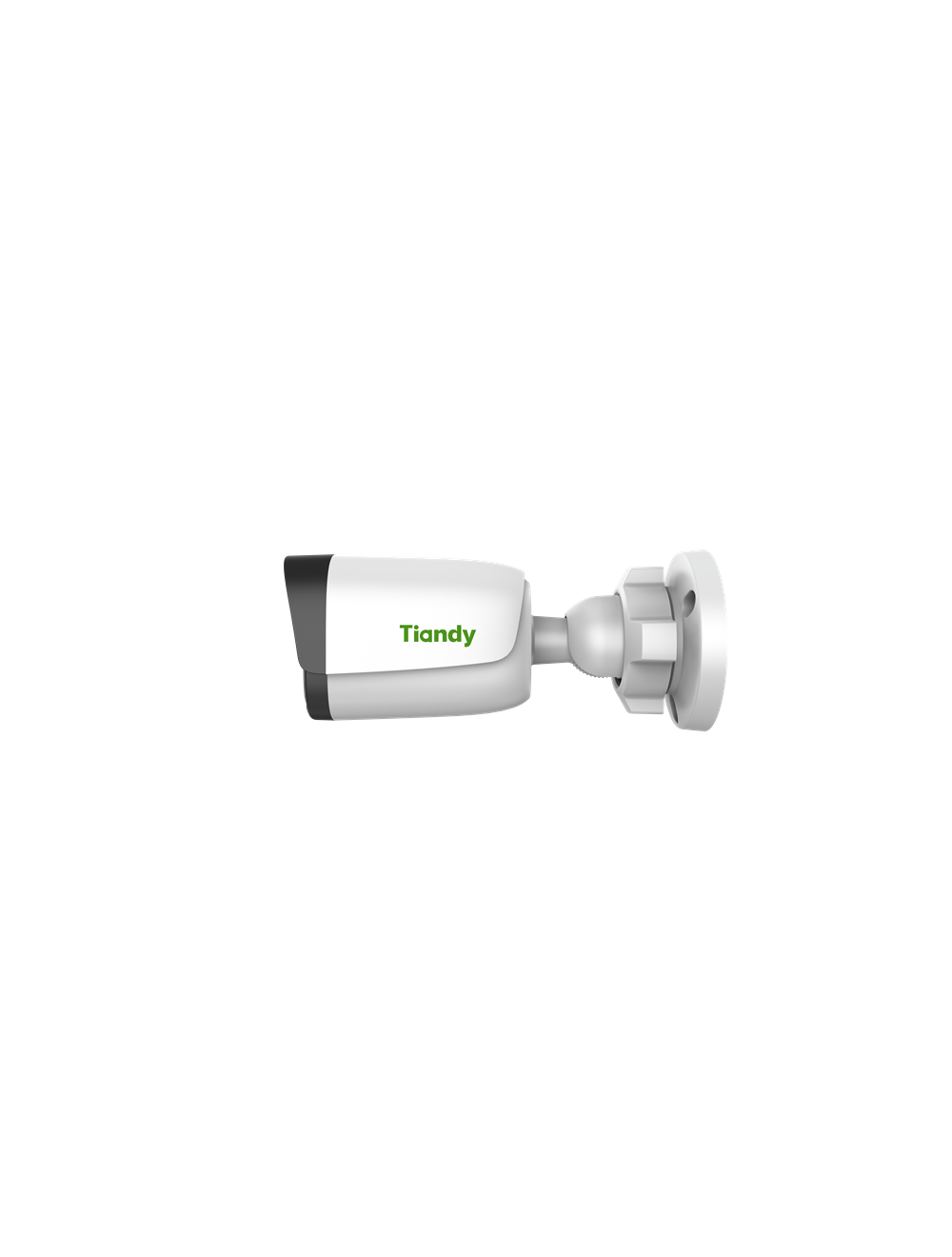

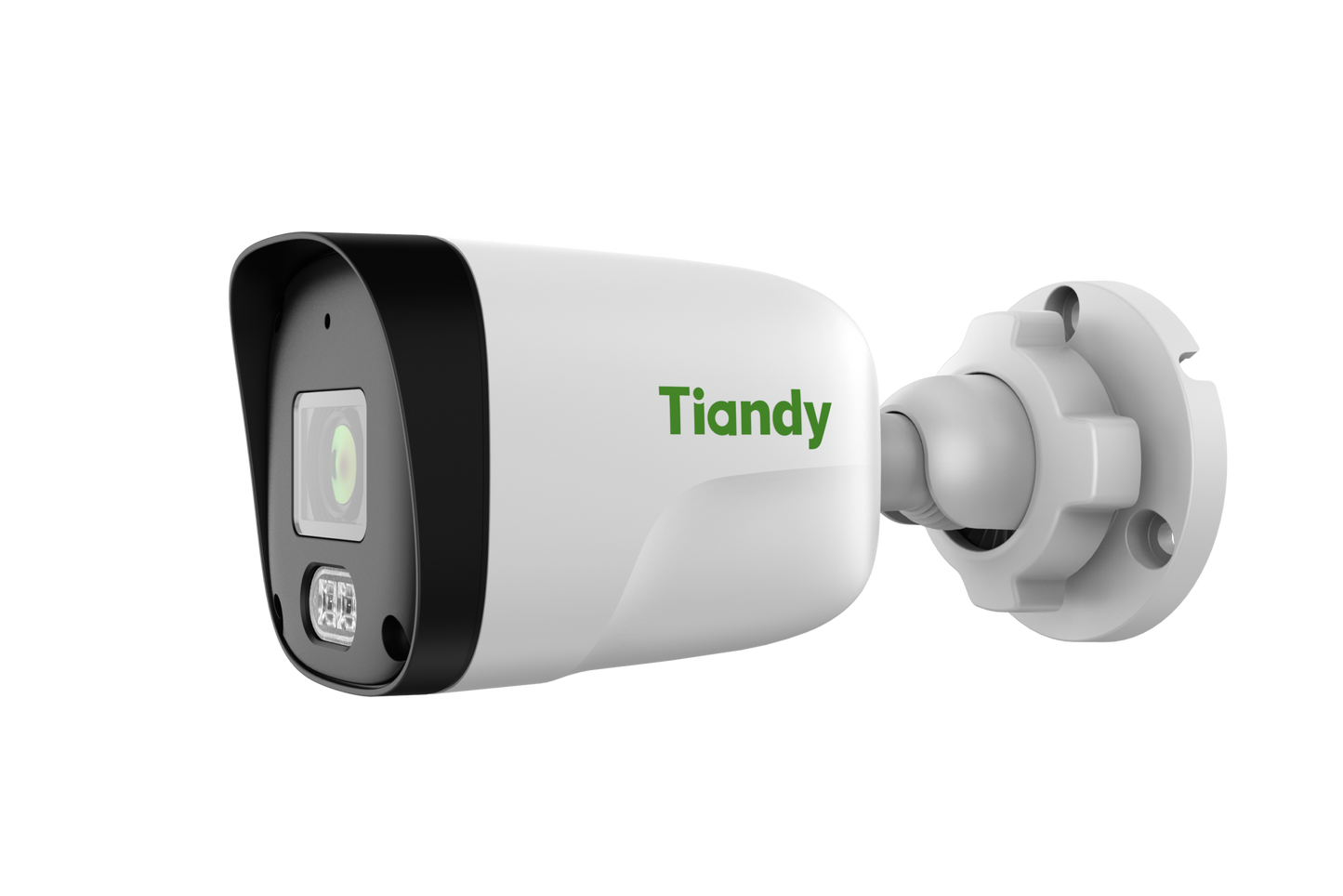

TIANDY TC-C321N AK SERIES 2MP IP BULLET CAMERA
The Tiandy TC-C321N AK Series 2MP IP Bullet Camera is a robust and highly efficient security solution designed to deliver superior surveillance performance in various environments, whether indoors or outdoors. Equipped with a powerful 2-megapixel sensor, this camera captures high-definition images at a resolution of 1920x1080p, ensuring every detail is recorded with exceptional clarity. Perfect for both residential and commercial applications, this camera offers peace of mind by providing sharp and clear footage, even in challenging lighting conditions.
One of the standout features of the Tiandy TC-C321N is its Smart IR Technology, which automatically adjusts its built-in infrared (IR) LEDs to illuminate up to 30 meters (98 feet) in complete darkness. This ensures that even in low-light or nighttime conditions, the camera can produce clear and detailed images. Coupled with its Wide Dynamic Range (WDR) technology, which balances out light and dark areas in the frame, this camera ensures that no detail is missed, even when dealing with extreme lighting contrasts, such as bright sunlight or shadowed corners.
Designed to withstand the elements, the Tiandy TC-C321N boasts an IP67-rated weatherproof housing, making it ideal for outdoor installations. It is fully protected against dust, rain, and harsh environmental conditions, ensuring reliable performance in even the most extreme climates. This makes it the perfect choice for securing entrances, parking lots, perimeters, and any other areas where the camera may be exposed to the weather.
Efficiency is key in modern surveillance, and the Tiandy TC-C321N excels in this aspect with its H.265 video compression technology. This advanced compression reduces bandwidth and storage requirements without sacrificing image quality, making it a cost-effective solution for long-term video recording and transmission. Combined with Power over Ethernet (PoE) support, the installation process is streamlined, as both power and data are transmitted through a single cable, reducing setup time and the need for additional wiring.
For enhanced security monitoring, the Tiandy TC-C321N comes with advanced motion detection capabilities, allowing users to configure the camera to send real-time alerts when suspicious movement is detected. These alerts can be received via the Tiandy mobile app or through the web interface, giving users the ability to monitor their premises remotely from anywhere in the world.
Additionally, the Tiandy TC-C321N supports ONVIF protocols, making it compatible with a wide range of third-party devices and security systems. This ensures seamless integration into existing setups, allowing for fully customizable surveillance solutions that meet specific needs.
FEATURES TIANDY TC-C321N 2MP IP BULLET CAMERA :
- Plastic housing
- Up to 2MP,1920×1080@30fps
- S+265/H.265/H.264B/H.264M/H.264H
- Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
- IR range up to 30m
- Built-in Mic
- Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
- PoE:IEEE 802.3af,Max. 3W
- IP67
Before we dive into the product specifications, check out our Tiandy Range
Learn more about Tiandy Technologies here
SPECS FOR THE TIANDY TC-C321N :
Camera |
|
Image Sensor |
1/3"CMOS |
Min. Illumination |
Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
Shutter Time |
1s~1/100000s |
Day&Night |
IR-cut filter with auto switch (ICR) |
Smart IR |
Yes |
WDR |
DWDR |
S/N |
>47.8dB |
Angle Adjustment |
0~360°(P); 0~80°(T); 0~360°(R) |
Lens |
|
Lens Type |
Fixed focal lens |
Focal Length |
2.8mm |
Lens Mount |
M12 |
Aperture Range |
F2.0 |
Aperture Type |
Fixed |
Field of View |
94.4°(H); 53.2°(V); 108.2°(D) |
DORI Distance |
Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m |
Illuminator |
|
IR LEDs |
2 |
IR Distance |
Up to 30m |
Wavelength |
850nm |
Compression Standard |
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
Video Bit Rate |
32k~4Mbps |
Audio Compression |
G.711A/G.711U |
Audio Sampling Rate |
8kHz |
Image |
|
Max. Resolution |
2MP,1920×1080@30fps |
Main Stream |
PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480) |
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
BLC |
Yes |
HLC |
Yes |
AGC |
Yes |
3D DNR |
Yes |
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
Privacy Mask |
4 black static areas |
Defog |
Yes |
Feature |
|
General Alarm |
Motion Detection |
Exceptions Alarm |
IP Address Conflict |
Linkage Method |
Alarm Output |
Network |
|
Protocols |
HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; Telnet; Unicast |
System Compatibility |
ONVIF(Profile S/T) ; SDK; CGI; Milestone; RTSP |
Remote Connection |
≤2 |
Client |
Easy7 VMS |
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
Interface |
|
Communication Interface |
1*RJ-45 (10/100 Base-T) |
Built-in Mic |
Yes |
General |
|
Web Client Language |
English |
Operating Temperature |
-30℃~60℃(-22℉~140℉) |
Operating Humidity |
≤95%RH |
Storage Temperature |
-30℃~60℃(-22℉~140℉) |
Storage Humidity |
10%~95%RH(non-condensing) |
Power Supply |
PoE:IEEE 802.3af,Max. 3W |
Protection |
Surge4000V; ESD6000V; IP67 |

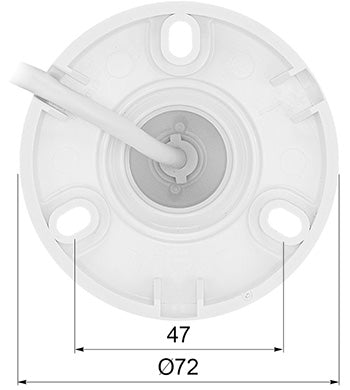

Boundary Dimensions |
140(L)60(W)60(H)mm |
Package Dimensions |
155(L)75(W)85(H)mm |
GrossWeight |
0.2kg |
