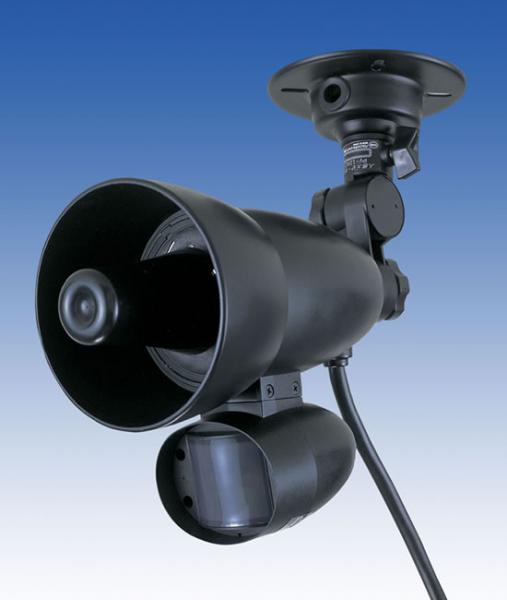

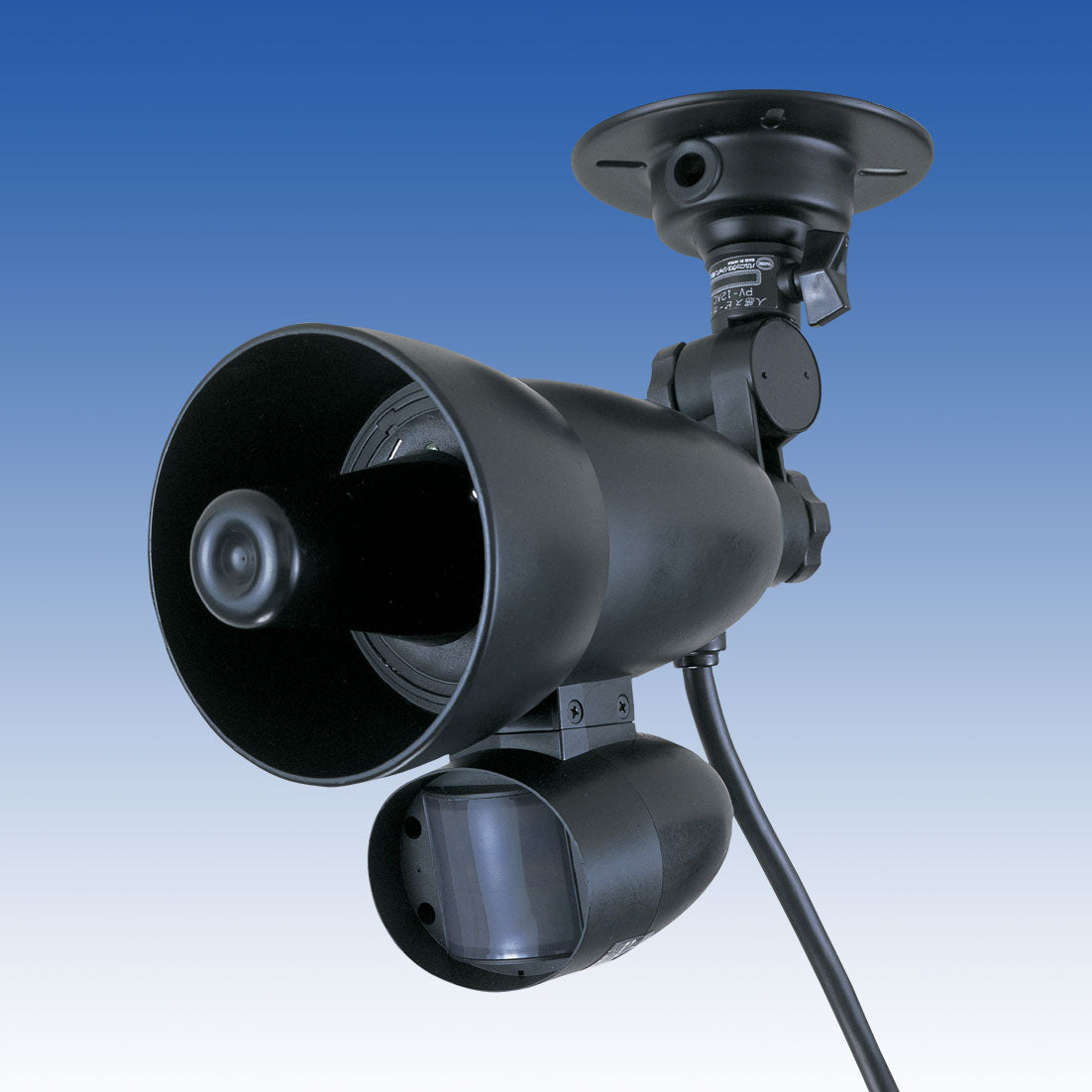

The TAKEX PV-12 is an indoor/outdoor sensor speaker that combines a passive infrared motion detector with a high-output horn speaker. When movement is detected, it automatically plays a user-recorded message, making it useful for warning announcements, access areas, hazardous zones, retail entrances and perimeter-security applications.
Key Features
- Integrated PIR motion sensor
- Detection range up to approximately 12 m
- Approximately 75° wide-angle detection pattern
- Horn speaker output up to approximately 100 dB at 1 m
- User-recordable message up to approximately 12 seconds
- Built-in microphone for message recording
- Dry-contact relay output for triggering compatible external equipment
- Adjustable sound volume
- Message stored in non-volatile memory
- Rain-resistant construction for suitable outdoor installations
- Adjustable multi-direction mounting bracket
Specifications
- Model: PV-12
- Power supply: 12 V DC
- Detection area: approximately 12 m x 75°
- Maximum sound level: approximately 100 dB at 1 m
- Recorded-message duration: up to approximately 12 seconds
What's in the Box
- 1 x TAKEX PV-12 PIR sensor speaker
- 1 x Integrated adjustable mounting bracket
Installation note: A suitable 12 V DC power supply and any external alarm, light or camera connections must be selected separately for the installation.
