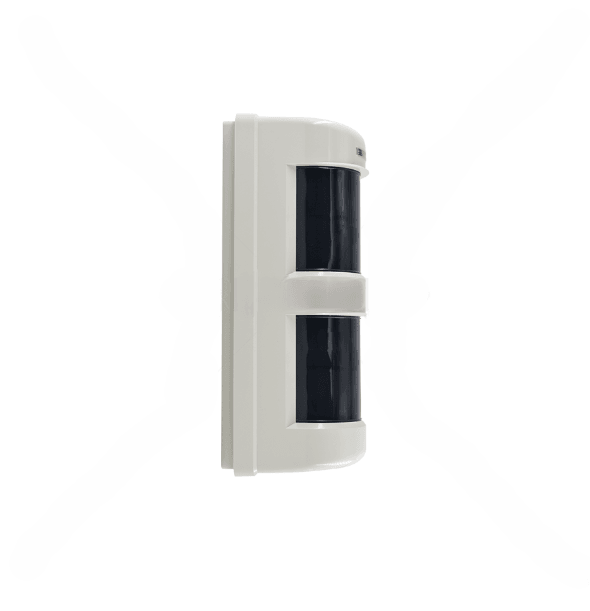

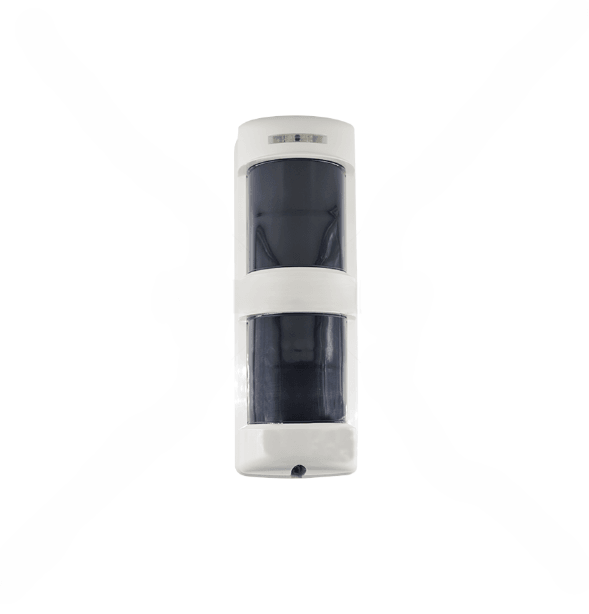

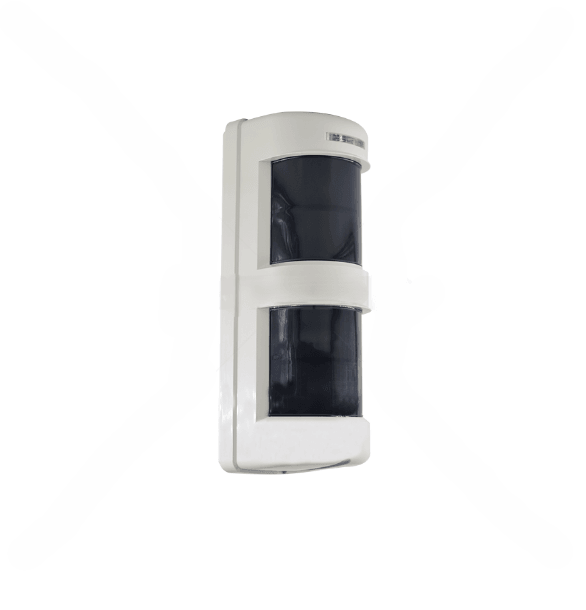

TAKEX 90 DEG DUAL PET OUTDOOR PIR MS-12TE



Experience the ultimate in security with TAKEX's 90 degree Dual Pet Outdoor PIR. This innovative motion sensor provides optimal coverage for both indoor and outdoor spaces, effectively detecting any movement within a 12m x 180˚ range. Whether for residential or commercial use, rely on the reliability and precision of TAKEX to keep your property safe.



FEATURES:

• Horizontal detection 12m at 90 angle
• 1 Dual zone sensor detection
• Alarm relay output dry contact
• N/C or N/O selectable
• Tamper relay output dry contact N/C
• Sensitivity pulse count delay time and day / night operation adjustment
• Supply voltage 12-30VDC

SPECS:

Detection system	Passive infrared
Coverage	Horizontal: +/-90° Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone)
Sensitive zone	Horizontal zone: 7 zones Downward zone: 7 zones
Mounting height	0.8 - 1.2m
Area adjustment	Horizontal: +/-90° Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone)
Supply voltage	12 to 30V DC (non-polarity)
Current consumption	35mA MAX.
Alarm output	Dry contact relay output N.C./N.O. selectable Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load) Contact operation: Detection time + off delay
Tamper output	Dry contact relay output N/C Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load)
LED indicator	Red LED: Blinking at warming up (LED disabled) Lighting at alarm (LED disabled)
Pulse count	Once / three times (with a switch)
Sensitivity adjustment	Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
Detection mode	N/A
Mounting position	Indoor / Outdoor
Wiring	Terminals
Weight	13.7oz (390g)
Appearance	Body: AES resin Lens: PE resin
Accessory	Tapping screw: 2 Area masking sheet: 1

ENVIRONMENTAL SPECIFICATION
Ambient temperature	-4°F to +122°F (-20°C to +50°C)
