Product Description

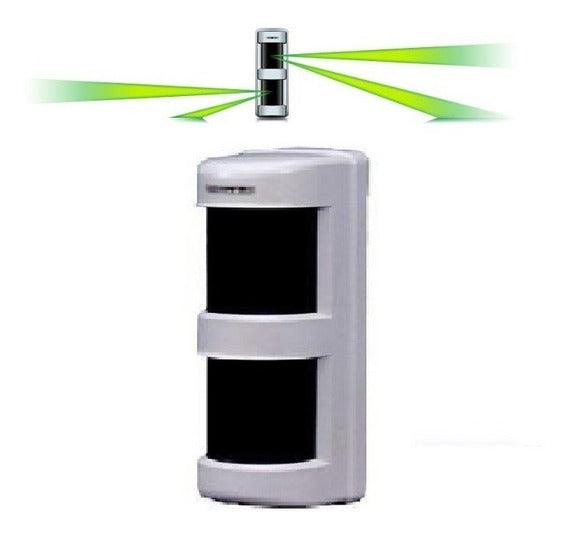

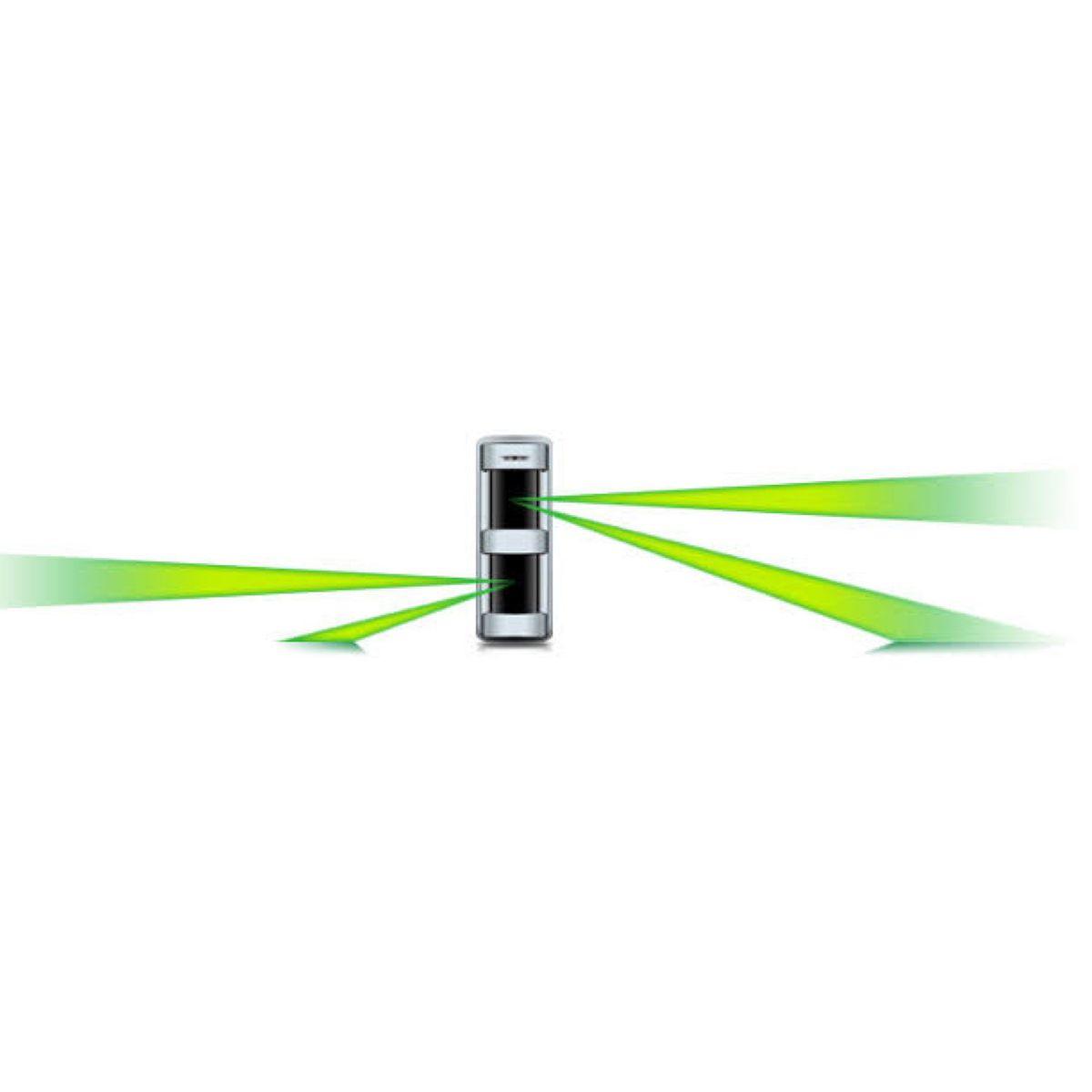

Dual-Zone PIR's combine a horizontal and downward curtain requiring simultaneous activation for alarm.

With up to 12m x 180˚ range these sensors are perfect for use in both domestic and industrial applications.

SPECIFICATIONS
Detection system	Passive infrared

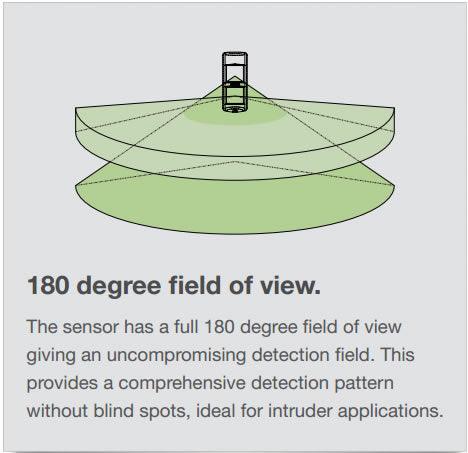

Coverage	Horizontal: +/-90° Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) x2
Sensitive zone	Horizontal zone: 7 zones Downward zone: 7 zones x2
Mounting height	0.8 - 1.2m
Area adjustment	Horizontal: +/-90° Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone)
Supply voltage	12 to 30V DC (non-polarity)
Current consumption	40mA MAX.
Alarm output	Dry contact relay output N.C./N.O. selectable Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load) Contact operation: Detection time + off delay
Tamper output	Dry contact relay output N/C Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load)
LED indicator	Red LED: Blinking at warming up (LED disabled) Lighting at alarm (LED disabled)
Pulse count	Once / three times (with a switch)
Sensitivity adjustment	Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
Detection mode	AND / OR selectable
Mounting position	Indoor / Outdoor
Wiring	Terminals
Weight	16.5oz (470g)
Appearance	Body: AES resin Lens: PE resin
Accessory	Tapping screw: 2 Area masking sheet: 2
